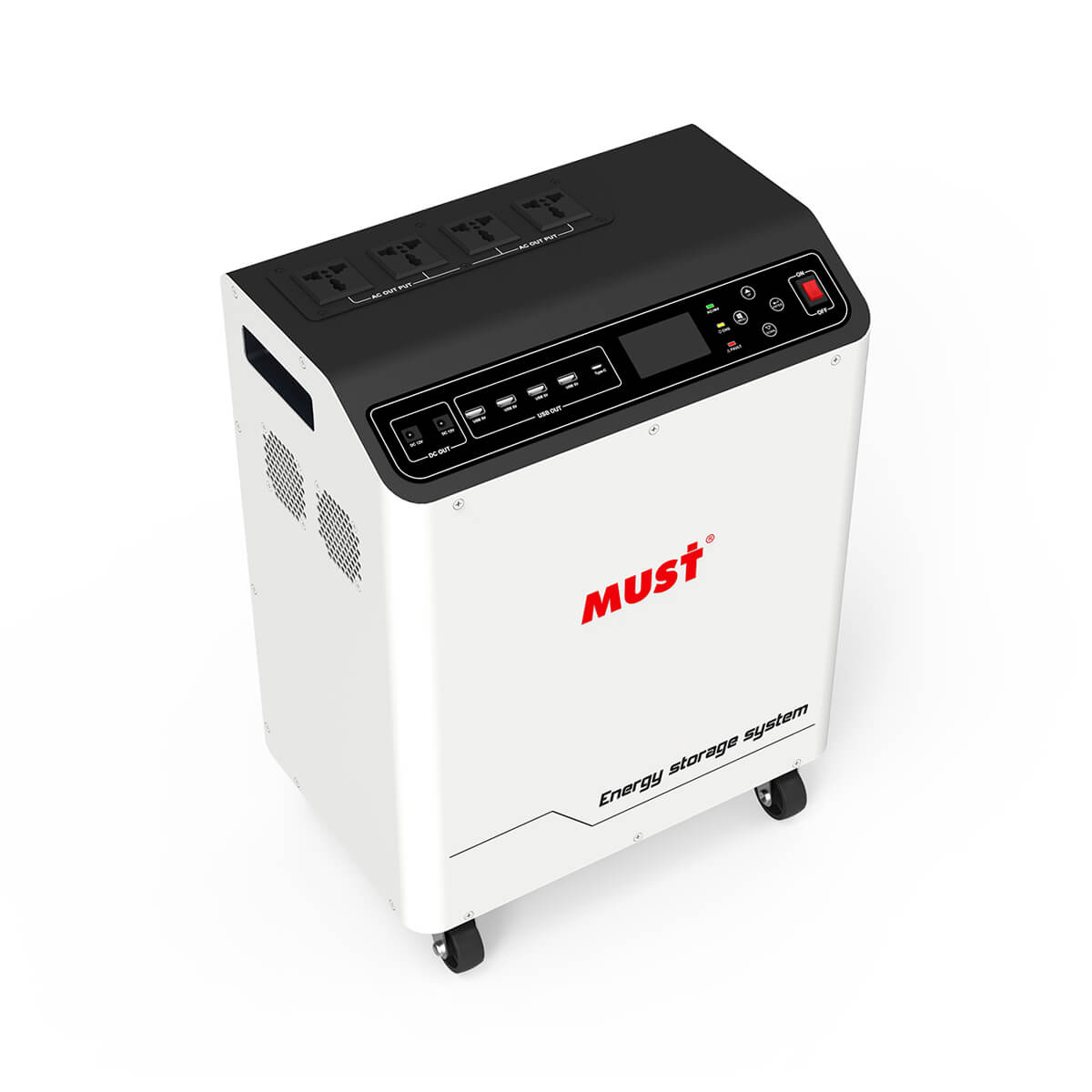

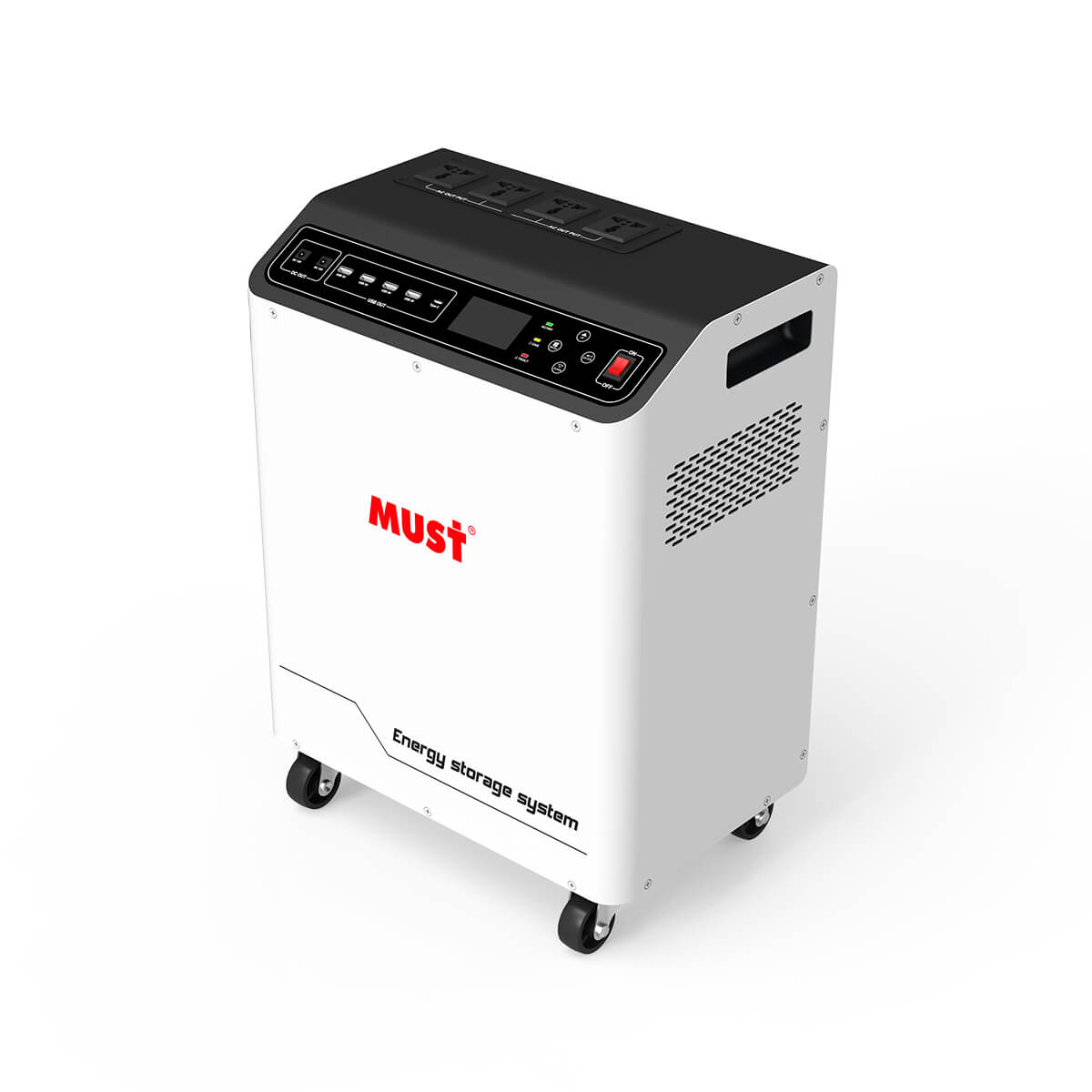

All-in-one Energy Storage Solar System HBP1800 Series (1-3KW)
MUST HBP1800 series all-in-one energy storage solution, support 1KW 2KW 3KW output for different load appliances. It's based on the original cabinetdesign, stacked with solar energy storage lithium battery 1kwh, 2kwh, 3kwh, 6.4kwh, and built in battery protection system, fully retain the use of loadpower in applications of residential, school, commercial and public utility area.
Features:
- 1.28-6.4KWh Energy;
- 4000+ Charge Cycles;
- LiFePO4 battery pack;
- 2 USB ports;
- Bult-in Solar Inverter.
↓↓↓Installation Portfolio————
| MODEL | HBP18-1012 | HBP18-2024 | HBP18-3024 | |||||
|---|---|---|---|---|---|---|---|---|
| Inverter | ||||||||
| Rated power | 1000W | 2000W | 3000W | |||||
| Output voltage waveform | Pure sine wave | |||||||
| Output voltage regulation | 230Vac ±5% | |||||||
| Output frequency | 50Hz / 60Hz (±0.2Hz) | |||||||
| Peak efficiency | 90% | |||||||
| Nominal DC input voltage | 12Vdc (±0.3) | 24Vdc (±0.3) | 24Vdc (±0.3) | |||||
| Standby Consumption | < 25W | |||||||
| PV Input | ||||||||
| Max solar power input | 900W | 1800W | 1800W | |||||
| PV max charging current | 60A (±3A) | 60A (±3A) | 60A (±3A) | |||||
| Combined charging current | 70A (±4A) | 80A (±4A) | 80A (±4A) | |||||
| Max efficiency | 98.0% max | |||||||
| PV array open circuit voltage | 105VDC | 145VDC | 145VDC | |||||
| PV Array MPPT Voltage Range | 15~105V | 30~120VDC | 30~120VDC | |||||
| AC Input | ||||||||
| AC input voltage | 230Vac ±5% | |||||||
| Acceptable input voltage range | 90-280VAC | |||||||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |||||||
| AC Charge | ||||||||
| Charging current @ Nominal input voltage | 10/20A (±4A) | 20A/30A (±4A) | 20A/30A (±4A) | |||||
| Charging Algorithm | 4-step (Li) | |||||||
| Output | ||||||||
| AC output | 230Vac | |||||||
| USB (5V 2.4A) | DC output*2pcs | |||||||
| USB (12V 1A) | DC output*1pcs | |||||||
| Lithium Battery | ||||||||
| Energy | 960Wh | 1280Wh | 1532Wh | 2560Wh | 6400Wh | 2560Wh | 3840Wh | 6400Wh |
| Nominal voltage | 12.8V | 25.6V | 25.6V | |||||
| Standard charging & discharge current | 50A | 50A | 50A | 100A | 50A | 50A | 100A | |
| Maximum continuous charging & discharge current | 100A | 100A | 100A | 200A | 100A | 100A | 200A | |
| Operation temperature | ||||||||
| Charge | 0~45℃ | |||||||
| Discharge | -10~60℃ | |||||||
| Dimension | ||||||||
| Product Size (LxWxH) (mm) | 379*254*498.5 | 379*254*498.5 | 351*300*538.5 | |||||
| Packing Size (LxWxH) (mm) | 467*342*670 | 467*342*670 | 439*388*690 | |||||
| Net Weight (kg) | / | 24 | 31 | / | / | / | 39.5 | / |
| Gross Weight (kg) | / | 35 | 42 | / | / | / | 55 | / |
