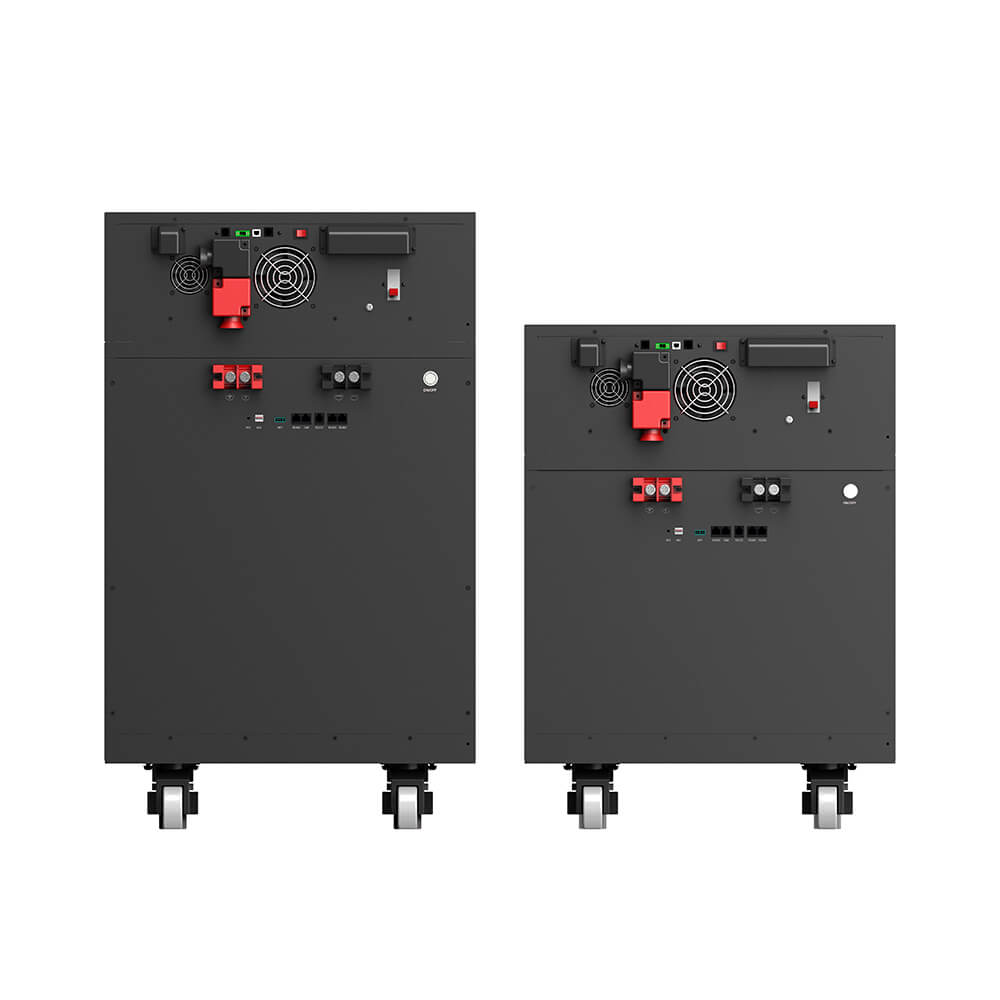

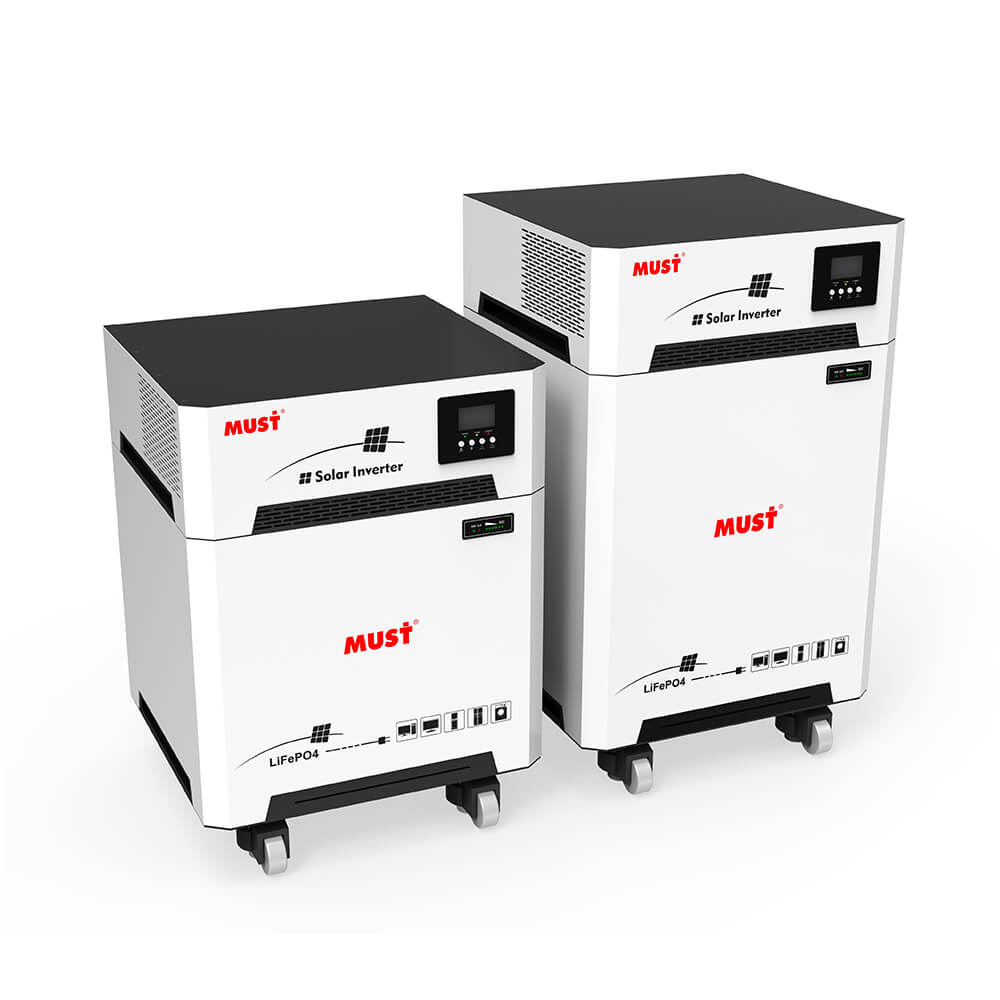

All in One Home Solar Energy Storage System HBP3000 Series (1.5-6KW)
The MUST HBP3000 PRO Series is with a ground-breaking LiFePO4 battery pack 6.4kwh and 12.8kwh energy storage, pure sine wave solar inverterinbuilt. Versatile energy storage system as your home strong back up, reliable access to power sources anytime. This class-leading power station brings you the power to run your daily consumes, family camping trip, cabin workshops, or even whole house for a day or two days power back up depending on your demands.
Features:
- Inverter ModuleLow Frequency Solar Inverter can output the direct current(DC) from the rooftop solar PV array into alternating current(AC), so your home or business loading can use it directly.
- Battery ModuleThe MUST HBP3000 Series is with a ground-breaking LiFePO4 battery pack, that offers multiple energy storage options through, which further simplifies installation and O&M with multiple smart functions.
↓↓↓Installation Portfolio————
| MODEL | HBP30-1524 | HBP30-2024 | HBP30-3024 | HBP30-5048 | HBP30-6048 | |
|---|---|---|---|---|---|---|
| Inverter | ||||||
| Rated power | 1500 | 2000W | 3000W | 5000W | 6000W | |
| Output voltage waveform | Pure sine wave | |||||
| Output voltage regulation | 220V/230V/240V ±10% | |||||
| Output frequency | 50Hz or 60Hz (±0.2Hz) | |||||
| Peak efficiency | 88% | |||||
| Nominal DC input voltage | 24Vdc | 48Vdc | ||||
| Standby Consumption | < 2W | |||||
| PV Input | ||||||
| Max solar power input | 2500W | 5000W | ||||
| PV max charging current | 80A | |||||
| Combined charging current | 80A | |||||
| Max efficiency | 98% max | |||||
| PV array open circuit voltage | 145V | |||||
| PV Array MPPT Voltage Range | 32~130VDC | 64~130VDC | ||||
| AC Input | ||||||
| AC input voltage | 230Vac ±5% | |||||
| Acceptable input voltage range | 155~280VAC(For personal computers) | |||||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||
| Transfer time | 10ms(max) | |||||
| AC Charge | ||||||
| Charging current @ Nominal input voltage | 25A | 30A | 40A | 35A | 40A | |
| Charging Algorithm | 4-step (Li) | |||||
| Output | ||||||
| AC output | Terminal & Socket (10A max) | |||||
| Lithium Battery | ||||||
| Energy | 6400wh | 12800wh | ||||
| Nominal voltage | 25.6V | 51.2V | ||||
| Battery capacity | 250Ah | |||||
| Standard charging and discharge current | 100A | |||||
| Maximum continuous charging & discharge current | 100A | |||||
| Operation ambient temperature | Charge | -10~50℃ | ||||
| Discharge | -20~55℃ | |||||
