Online UPS

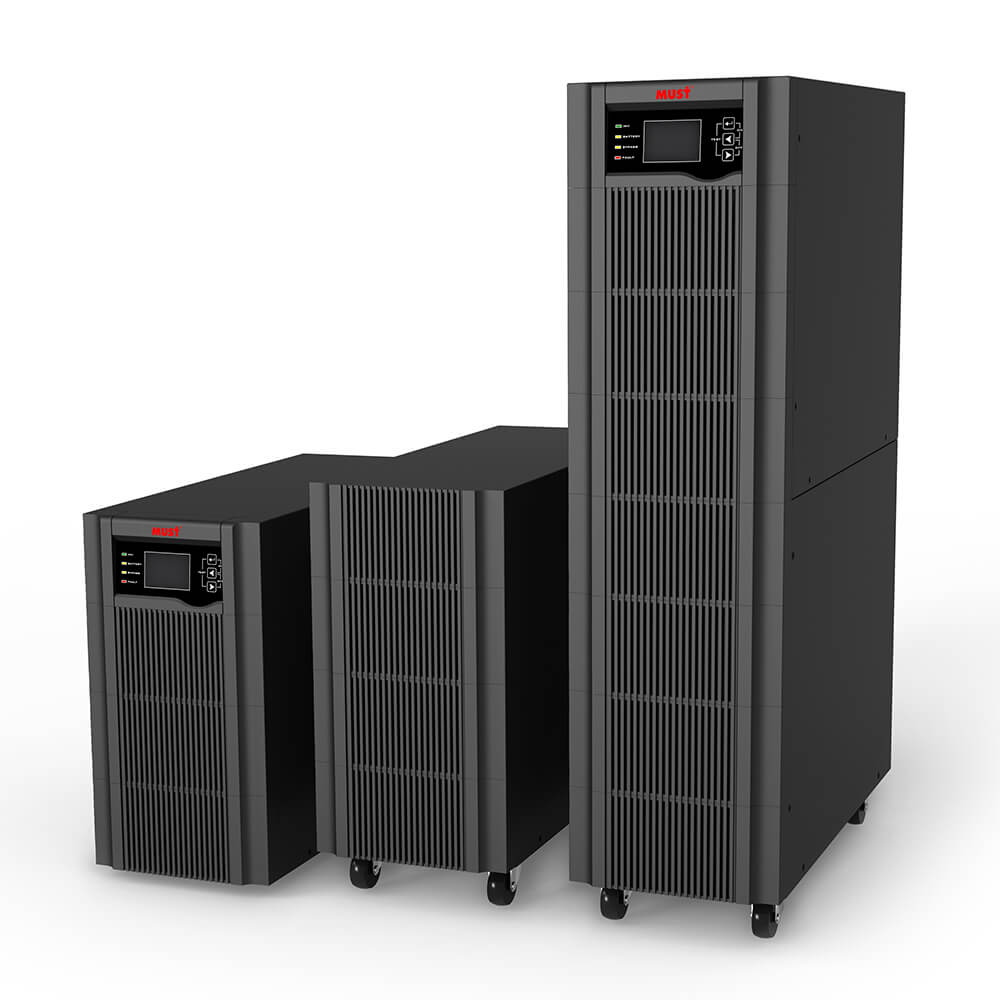

EH5500 Series Integrated/Split type High Frequency Online UPS (6-10KVA)

The EH5500 series is a new type high-frequency online UPS. Adopts advanced DSP digital control technology to effectively improve product performance and system reliability, and higher power density small size, light weight and high work efficiency. Effectively solve power problems such as power cut-off, Grid over voltage / low voltage, voltage instantaneous drop, amplitude reduction, high voltage pulse, surge voltage, harmonic distortion, clutter interference, frequency fluctuation and provide best power for load.

Features:

  • Double conversion online design
  • Adopt DSP digital control
  • With LCD+LED real-time display
  • Output power factor 1.0 for your option
  • Cold start by battery without grid input
Get Pricing/Info


  • With double conversion online design, zero output transfer time.
  • Adopt DSP digital control, excellent performance indicators, more steady and reliable.
  • Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid, to energy saving and reducing system investment cost.
  • Output voltage 208Vac/220Vac/230Vac/240Vac can be set.
  • Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power.
  • With LCD+LED real-time display, UPS operating available for Detection.
  • With self-detection function, can detect hidden faults of UPS.
  • Cold start by battery without grid Input.
  • Input frequency range 40~70Hz, support various fuel generators.
  • With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand battery overcharge protection.
  • Output power factor 1.0 for your option. max efficiency reach 95%, reduce loss of UPS.
  • Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations,available SNMP card (optional) to UPS remote monitoring function.
  • The split type model can directly replace the entire built-in battery pack, avoiding safety accidents caused by battery replacement.

↓↓↓Installation Portfolio————

MUSTENERGY

MODELEH55 6KSEH55 6KEH55 10KSEH55 10K
Integrated TypeSplit TypeIntegrated TypeSplit Type
Capacity
Rated Capacity6KVA/6KW10KVA/10KW
Input
Input formatL+N+PE
Rated input voltage208/220/230/240VAC
Voltage range110~300VAC
Frequency range50/60±6Hz (Default), ±10Hz (Settable)
Input power factor≥0.99
Input total harmonic distortion≤4% inear load; ≤6% non-linear load (PF=0.7)
Output
Output formatL+N+PE
Output voltage208/220/230/240VAC
Output accuracy±1%
Output frequencyFor on-line mode: follow current frequency, battery mode: 50 / 60Hz±0.1%
Output harmonic distortion≤ 2% linear load; ≤ 4% nonlinear load (PF=0.7)
Overload capacityAC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 200ms@>150% Load Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
Switching time
Switch to battery mode0ms
Switch to bypass4ms
AC priority modeSupport
Efficiency
AC Mode (Full Load)Peak efficiency 95.5%, Full load efficiency 95%
Battery Mode (Full Load)Peak efficiency 95.3%, Full load efficiency 94.8% (20pcs Battery)
Battery
Battery typeLead Acid Battery
Battery number16/18/20 (adjustable) 16 (default )7Ah*1616/18/20 (adjustable) 16 (default )9Ah*16
Chaging current1-12A (adjustable)1A (default)1-12A (adjustable)1A (adjustable)
Inside batteries/InseparableSeparable/InseparableSeparable
Charging modeTwo-stage/three-stage charging
Display
LCD2×8 PIN/Pitch 2.54mm, support 128-bit segment code, up to 4 buttons + 4 LEDs, can display operating mode / load / input / output, etc.
Interface
RS-232Support: Windows 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC
USBWindows Family & MAC
EPOSupport
Intelligent slot (Optional)SNMP/AS400 Relay Card/RS485
Maintenance bypass switch (Optional)Support
Environmental parameters
Operating ambient temperature0~40℃
Operating environment humidity20%~95%(no condensation)
Storage temperature-15~60℃ (batteries: 0~40℃ )
AltitudeThe elevation should not exceed 1000m, 1000m or above, up to 4000 m, reference IEC62040
Noise≤50db
Mechanical Specifications
Dimensions (D*W*H) (mm)460*200*360460*200*700460*200*360460*200*770
Net weight (kg)13621364
