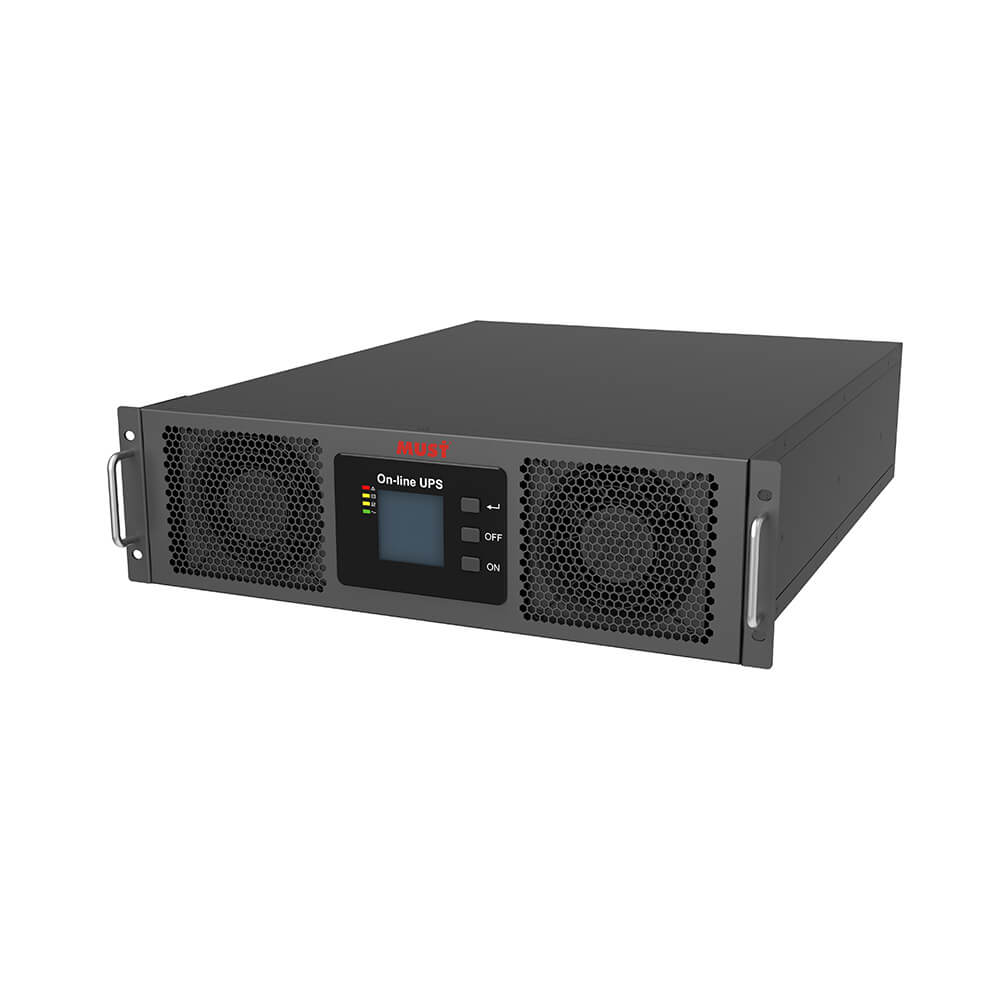

EH9335 Rack Mount Series High Frequency 3/3 Online UPS (10-40KVA)

EH9335 is new generation of high-frequency on line UPS developed, which use with Advanced DSP digital control echnology. Effectively improve product performance and system reliability, and achieve higher power density, with features such as small size, light weight, and high work efficiency, etc. This series of UPS can solve almost all power problems, such as power outage, city power high voltage, city power low voltage, voltage drop, amplitude reduction, Power problems such as high voltage pulses, voltage fluctuations, surge voltages, harmonic distortion, clutter interference, and frequency fluctuations to provide the best power environment for the load. Adopt 3U rack structure to be installed easily.

Features:

  • Double conversion online design
  • With DSP digital control technology
  • Ultra-wide input voltage range
  • Input frequency range of 40 ~ 70Hz
  • With active power factor correction technique(PFC)
Get Pricing/Info


  • Double conversion online design, 0ms exchange output, single input and single output voltage.
  • With DSP digital control technology, Excellent performance index, the control system more stable and reliable.
  • With active power factor correction technique(PFC),Input power factor close to 1, greatly reducing the pollution of the electricity grid.
    Ultra-wide input voltage range.
  • Input frequency range of 40 ~ 70Hz, to ensure access to a variety of fuel generators can work.
  • LCD + LED using real-time display, the user can intuitively understand the operating state of the UPS.
  • Has turned self-diagnostic function, can detect hidden faults of UPS.
  • With AC input over-voltage and under-voltage protection, output overload protection, short-circuit protection, temperature protection, battery under-voltage warning protection and battery overcharge protection, etc.
  • Overall efficiency 94.5% reduction in power loss of UPS, saving the user’s cost.
  • When there is no utility power, it can directly use the battery to start working.
  • When the utility power is restored, the UPS can automatically turn on and charge the battery at the same time to realize the unattended function.
  • When the electricity is interrupted, UPS will discharge untill power off during battery mode.
  • The standard RS232 communication interface enables multi-functional and multi-purpose monitoring and management operations between the UPS and computer through a computer window, and an SNMP card (optional) can be installed to realize the UPS remote monitoring function.

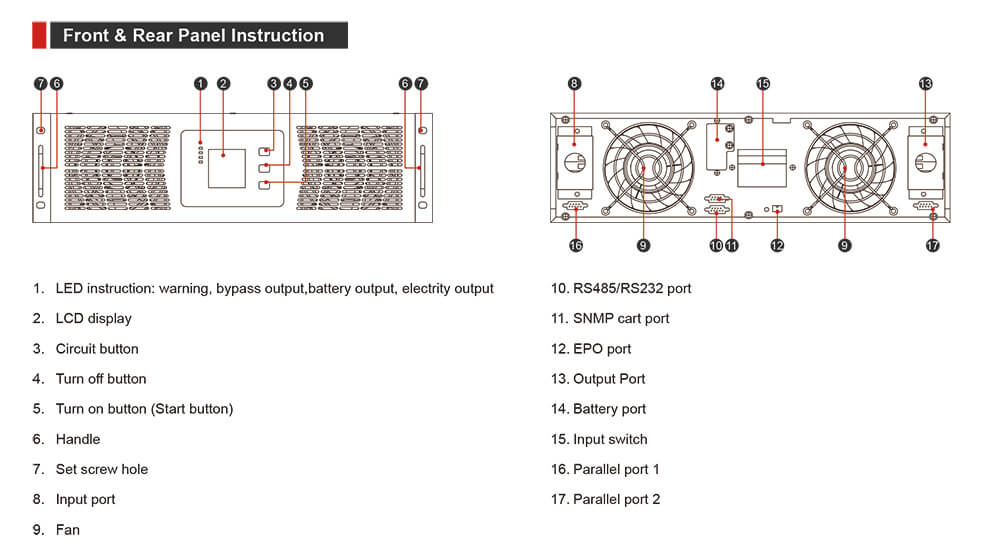

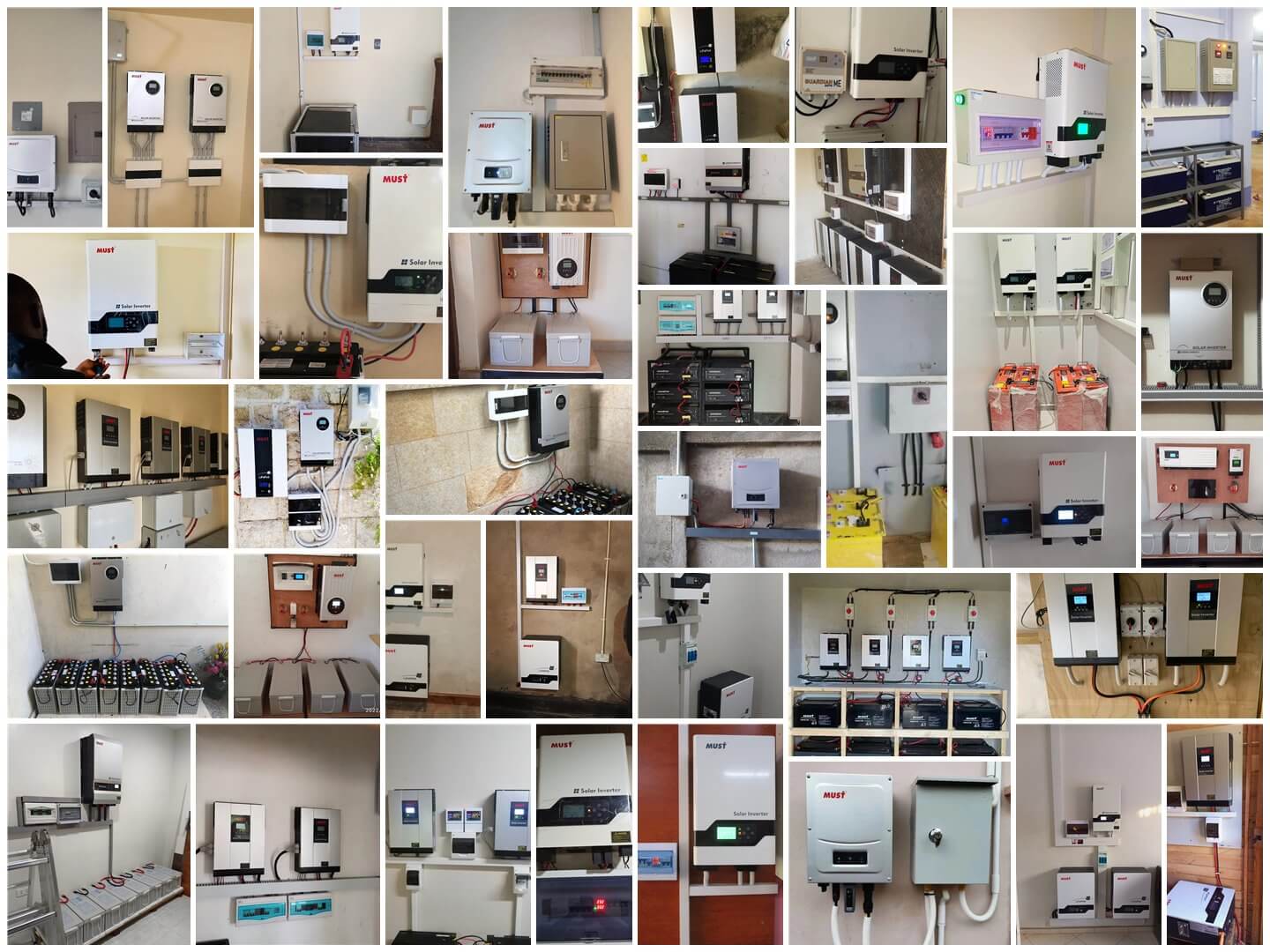

↓↓↓Installation Portfolio————

MUSTENERGY

ModelEH9335-10KRSEH9335-15KRSEH9335-20KRSEH9335-30KRSEH9335-40KRS
Capacity
RatedPower10KAVA/9KW15KVA/13.5KW20KVA/18KW30KVA/27KW40KVA/32KW
Input
Input formatThree-phase four- line+ground
Rated input voltageAC 380V/400V/415V
Voltage rangeAC 208V~478V
Frequency range45-55Hz at50Hz/54-66Hz at60Hz (Auto sensing)
Input power factor≥0.99
Input current harmonic≤3% (100% Nonlinear load)
Bypass rangeBypass protection voltage upper limit: 220V: +25% (Optional +10%, +15%, +25%) 230V: +20% (Optional+ 10%, +15%) 240V: +15% (Optional+10%)
Bypass protection voltage lower limit: -45% (Optional -20%-30%)
Bypass frequency protection range: ±10%
Output
OutputThree-phase four-line + ground
Output VoltageAC 380V/400V/415V
Output power factor0.8/0.9
Output range±1%
Output frequencyOnline Mode: following utility electricity frequency, battery mode: 50/60Hz±0.2%
Load peak ratio3:1
Output harmonic distortion≤ 2% Linear Load ≤ 5% Nonlinear Load
Battery
Battery NumberOptional: DC±192V/204V/216V/228V/240V (±16/17/18/19/20 pcs) Default: DC±192V
Charging Current10A max
Protection
Overload ProtectionLoading ≤ 110%, 60min; ≤ 125%, 10min; ≤ 150%, 1min; ≥ 150% change to bypass
Over temperatureNormal mode: change to bypass mode; Battery mode: stop output
Emergency shutdown (EPO)Stop output
Other
Change-over timeUtility mode to bypass mode: 0ms (tracking); utility mode to battery mode: 0ms
Normal mode (Full load)≥efficiency 94.5%
Communication ConnectionRS232,RS485,SNMP  (Optional)
ECO modesupport
Self-test functionsupport
Parallel functionMax  4pcs
Working environment
Working temperature0~40℃
Storage Temperature-25~55℃ (batteries: 0~40℃ )
Relative humidity0%~95% (no condensation)
Altitude< 1500m, when above 1500m, when above 1500m, derate according to GB/T 3859.2
Physical Characteristics
Size (D*W*H) (mm)580*443*131
Net Weight (kg)3232.53333.534
