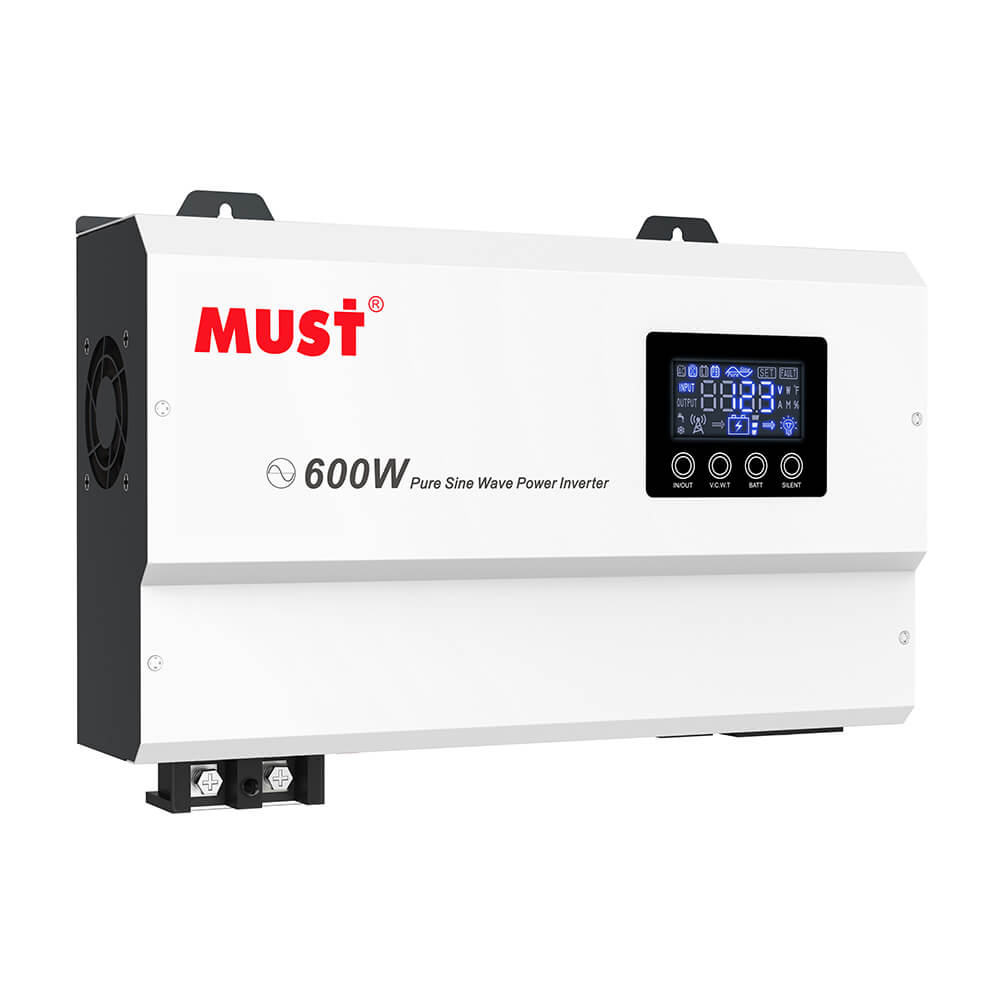

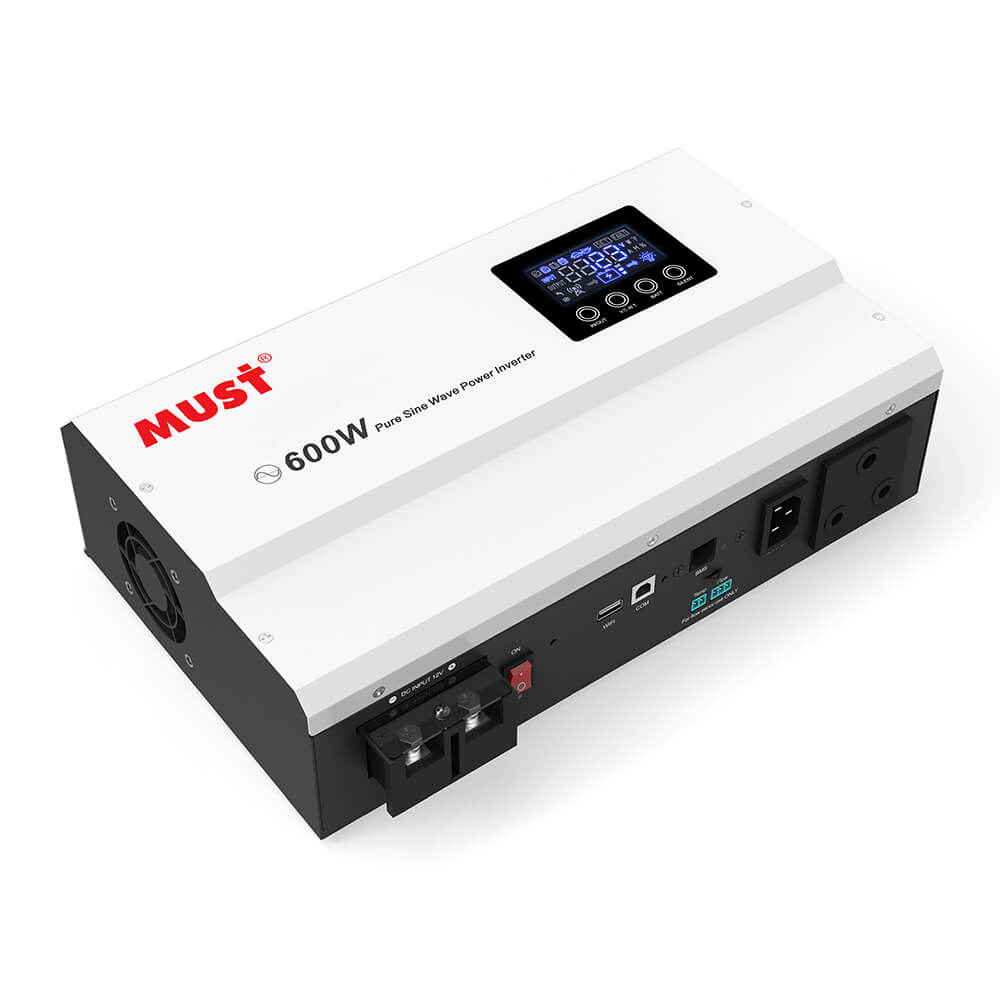

EP1500 Plus Series High Frequency Power Inverter/Charger (600W)

EP1500 PLUS series is a pure sine wave inverter applied to TV, stereos, laptops, and desktop computers and other home appliances. It will automatically switch to inverter and provide power when AC is interrupted unexpectedly.It's perfect for the user who need a simple and economical inverter,with user-friendly installation and setting.

Features:

  • Pure sine wave inverter
  • Double layers PCB board.
  • Support two kinds of batteries include 4 series LiFePO4 Lithium Battery Pack and Lead-acid Battery
  • Auto restart while AC recovery
  • Different charging mode for different kinds of batteries
  • Overload & short-circuit protection, Battery Low Voltage Protection & Over Voltage Protection, Deep discharge protection
  • Advanced technology optimizes battery life
  • Automatic line-to-battery switch over
  • Automatic activate lithium battery pack which is be over discharged no output when AC input is OK
Get Pricing/Info


↓↓↓Installation Portfolio————

MUSTENERGY

MODELEP15-0612 PLUS
Nominal Battery System Voltage12VDC
INVERTER OUTPUT
Rated Power600VA / 600W
WaveformPure Sine Wave
Nominal Output Voltage RMS230VAC
Output Voltage Regulation+10/-18%
Output Frequency50Hz ±1Hz
Inverter Efficiency (Peak)>90%
Line Mode Efficiency>95%
Typical Transfer Time<10ms typical, 15ms max
AC INPUT
Voltage230VAC
Voltage Range184~278VAC
Frequency Range50Hz ±10%
BATTERY
Note: Below Parameters (PB) Lead-acid Battery / (LI) 4 series LiFePO4 Lithium Battery Pack
Nominal Input Voltage12VDC
Low Battery Cutoff10.5VDC(PB)11.5VDC(LI)
Low Battery Alarm11.0VDC(PB)12.0VDC(LI)
Low Battery Voltage Recover12.5VDC(PB)12.8VDC(LI)
High Voltage Alarm14.7VDC(PB)14.5VDC(LI)
High Battery Voltage Recover15.0VDC(PB)14.8VDC(LI)
CHARGER
Boost Voltage (Vbat<12.5V)14.2VDC(PB)14.2VDC(LI)
Float Voltage (Vbat>12.5V)13.8VDC(PB)14.2VDC(LI)
Charging Current15A±2A @ 12V
Overcharge Protection S.D.15.5VDC
BYPASS & PROTECTION
Nominal Input Frequency50Hz
Overload Protection (SMPS Load)FUSE
Output Short Circuit Protection10A
Bypass Fuse Rating10A
Max Bypass Current10A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm)320*231*96
Shipping Dimensions (W*H*D) (mm)415*280*166
Shipping Weight (kg)3
OTHER
Operation Temperature Range0℃ to 40℃
Audible Noise60dB MAX
DisplayLED+LCD
Standard Warranty1 year
CommunicationPC WIFI BMS (BMS optional)
