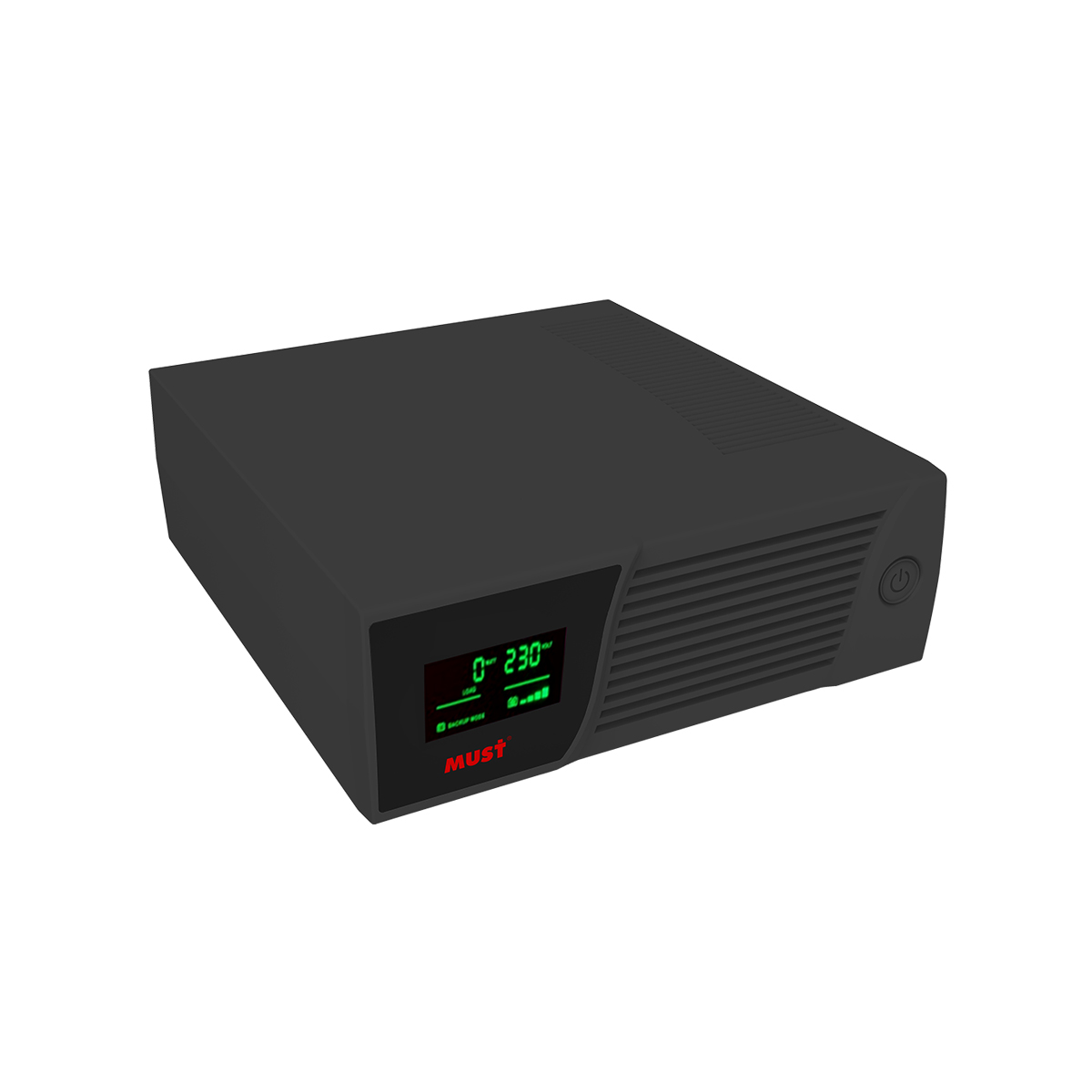

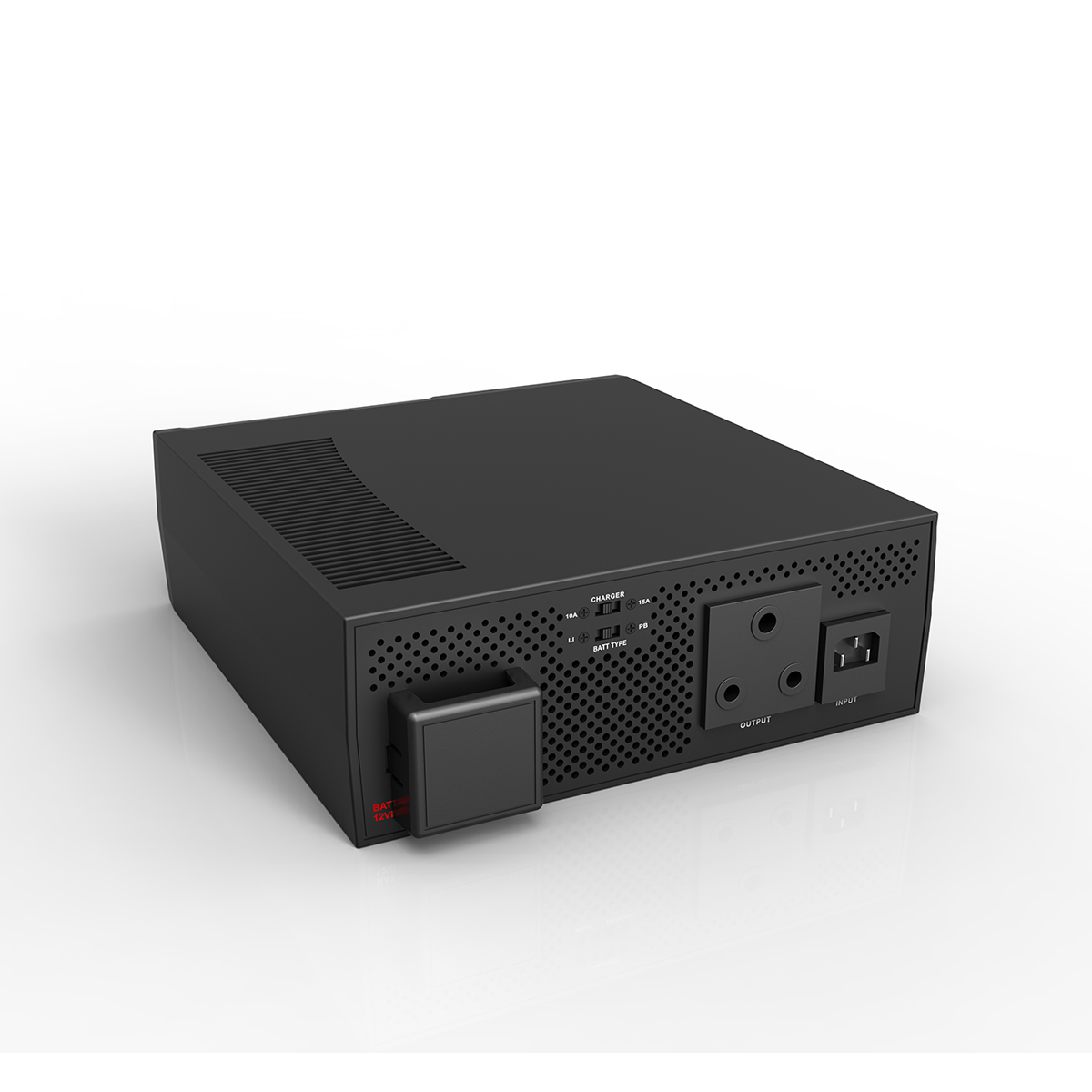

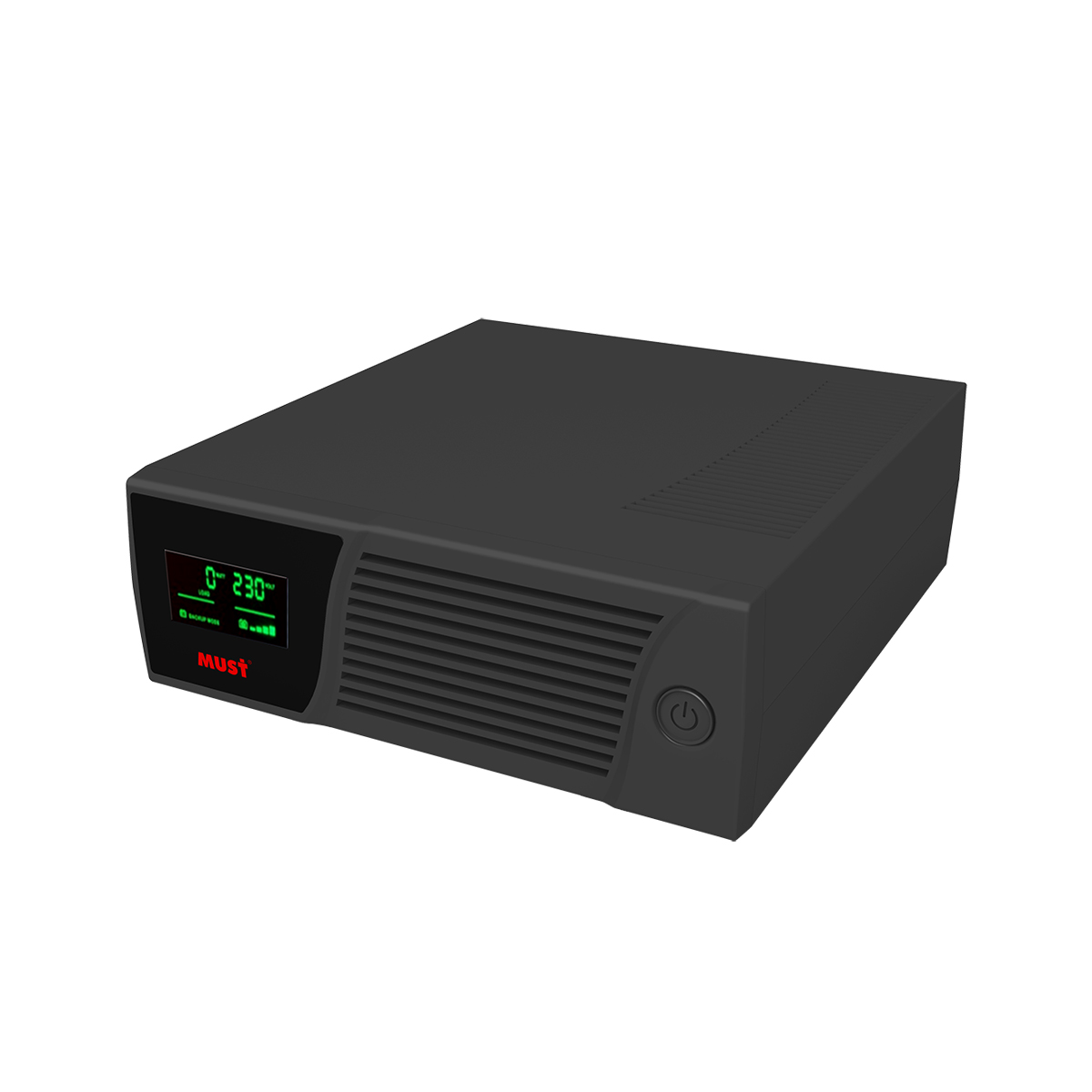

EP1500 Series High Frequency Power Inverter/Charger (1/2KVA)
EP1500 series is a pure sine wave inverter applied to TV, stereos, laptops, and desktop computers and other home appliances. It will automatically switch to inverter and provide power when AC is interrupted unexpectedly.It's perfect for the user who need a simple and economical inverter,with user-friendly installation and setting.
Features:
- Pure sine wave inverter
- Double layers PCB board.
- Support two kinds of batteries：Lithium Battery Pack and Lead-acid Battery
- Support fast max charging current setting
- Different charging mode for different kinds of batteries
- Auto restart while AC recovery
- Overload & short-circuit protection, Battery reverse polarity protection, Deep discharge protection
- Advanced technology optimizes battery life
- Automatic line-to-battery switch over
- Automatic activate lithium battery pack which is be over discharged no output when AC input is OK

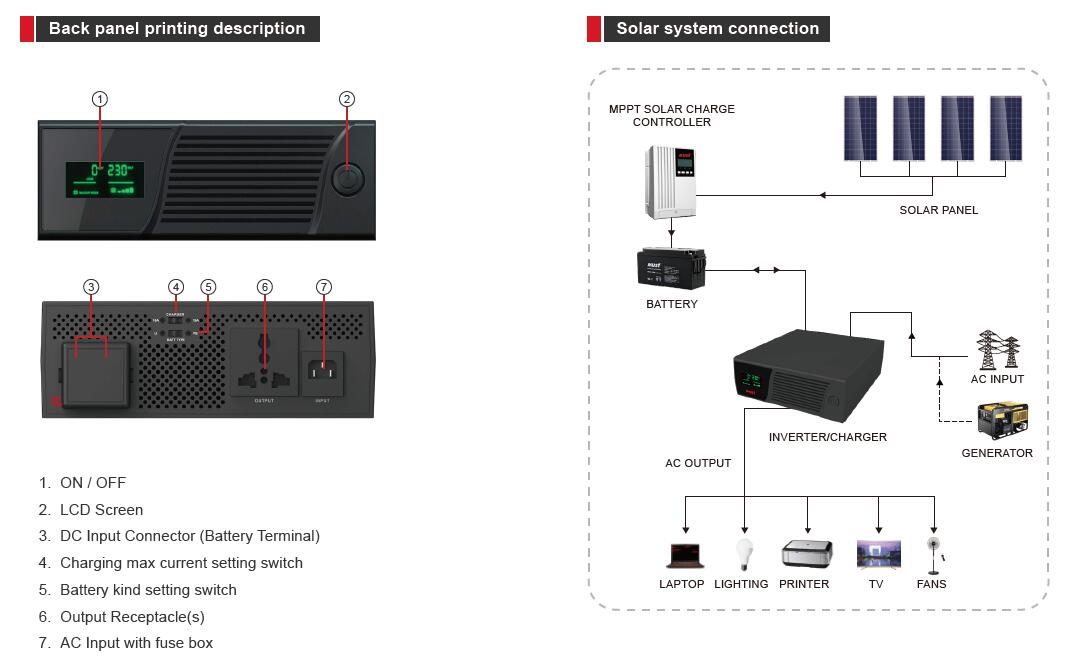

↓↓↓Installation Portfolio————
| MODEL | EP15-1012 | EP15-2024 | ||
|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 24VDC | ||
| INVERTER OUTPUT | ||||
| Rated Power | 1000VA / 600W | 2000VA / 1200W | ||
| Waveform | Pure Sine Wave | |||
| Nominal Output Voltage RMS | 230V | |||
| Output Voltage Regulation | +10/-18% | |||
| Output Frequency | 50Hz / 60Hz ±1Hz | |||
| Inverter Efficiency (Peak) | >90% | |||
| Line Mode Efficiency | >95% | |||
| Typical Transfer Time | <10ms typical, 15ms max | |||
| AC INPUT | ||||
| Voltage | 230VAC | |||
| Voltage Range | 184 ~ 278VAC ± 3% | |||
| Frequency Range | 45 ~ 65Hz ± 2Hz | |||
| BATTERY | ||||
| Note: Below Parameters (PB) Lead-acid Battery / (LI) LiFePO4 Lithium Battery Pack – 12V(4 Series) 24V(8 Series) | ||||
| Nominal Input Voltage | 12VDC | 24VDC | ||
| Low Battery Cutoff | 10.5VDC(PB) | 11.5VDC(LI) | 21.0VDC(PB) | 23.0VDC(LI) |
| Low Battery Alarm | 11.0VDC(PB) | 12.0VDC(LI) | 22.0VDC(PB) | 24.0VDC(LI) |
| Low Battery Voltage Recover | 12.5VDC(PB) | 12.8VDC(LI) | 25.0VDC(PB) | 25.6VDC(LI) |
| High Voltage Alarm | 14.5VDC(PB) | 14.3VDC(LI) | 29.0VDC(PB) | 28.6VDC(LI) |
| High Battery Voltage Recover | 15.0VDC(PB) | 14.8VDC(LI) | 30.0VDC(PB) | 29.6VDC(LI) |
| CHARGER | ||||
| Boost Voltage | 14.4VDC(PB) | 14.4VDC(LI) | 28.8VDC(PB) | 28.8VDC(LI) |
| Float Voltage | 13.8VDC(PB) | 14.4VDC(LI) | 27.6VDC(PB) | 28.8VDC(LI) |
| Charging Current | 10A±2A @ 12V | 7A±2A @ 24V | ||
| Charging Current | 15A±2A @ 12V | 10A±2A @ 24V | ||
| Overcharge Protection S.D. | 15.5VDC | 31VDC | ||
| BYPASS & PROTECTION | ||||
| Nominal Input Frequency | 50Hz / 60Hz (Auto sensing) | |||
| Overload Protection (SMPS Load) | FUSE | |||
| Output Short Circuit Protection | 6.3A | 10A | ||
| Bypass Fuse Rating | 6.3A | 10A | ||
| Max Bypass Current | 6.3A | 10A | ||
| MECHANICAL SPECIFICATIONS | ||||
| Dimensions (W*H*D) (mm) | 255 x 224 x 80 | |||
| Shipping Dimensions (W*H*D) (mm) | 332 x 288 x 127 | |||
| Shipping Weight (kg) | 2.4 | |||
| OTHER | ||||
| Operation Temperature Range | 0℃ to 40℃ | |||
| Audible Noise | 60dB MAX | |||
| Display | LED+LCD | |||
