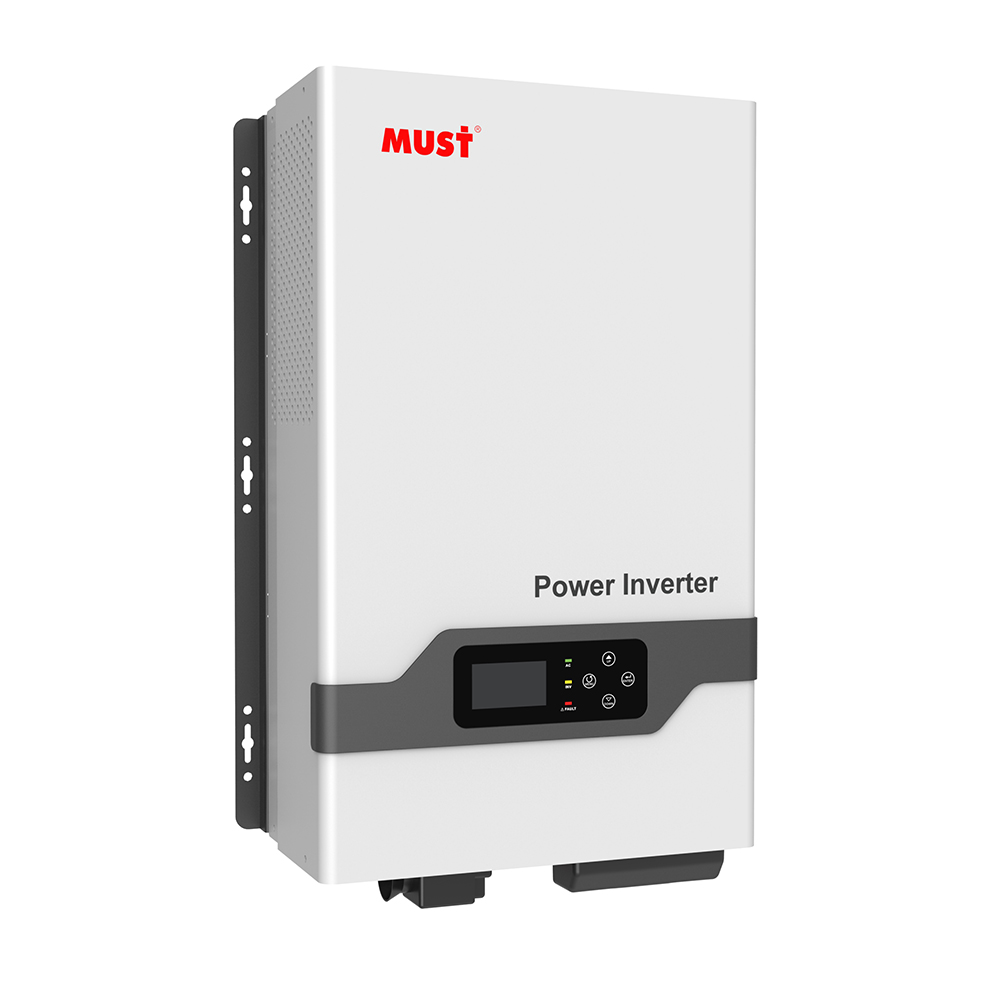

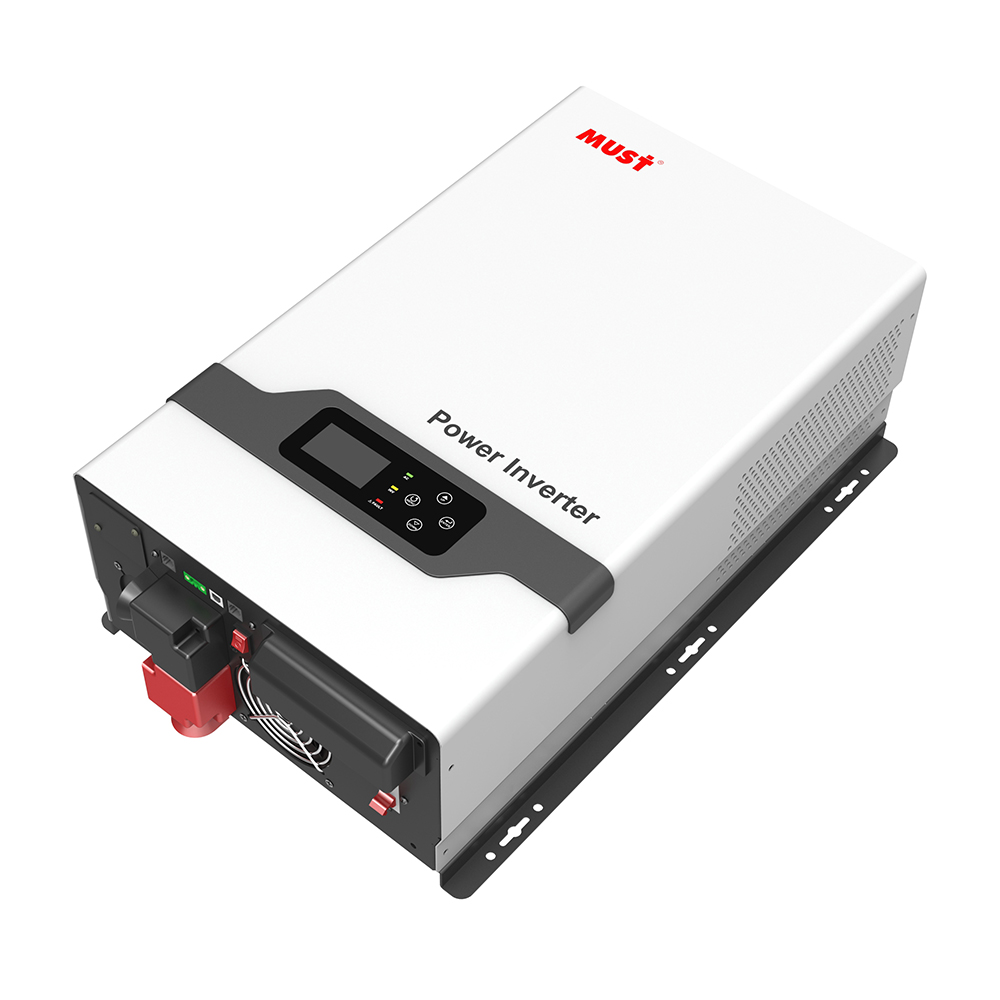

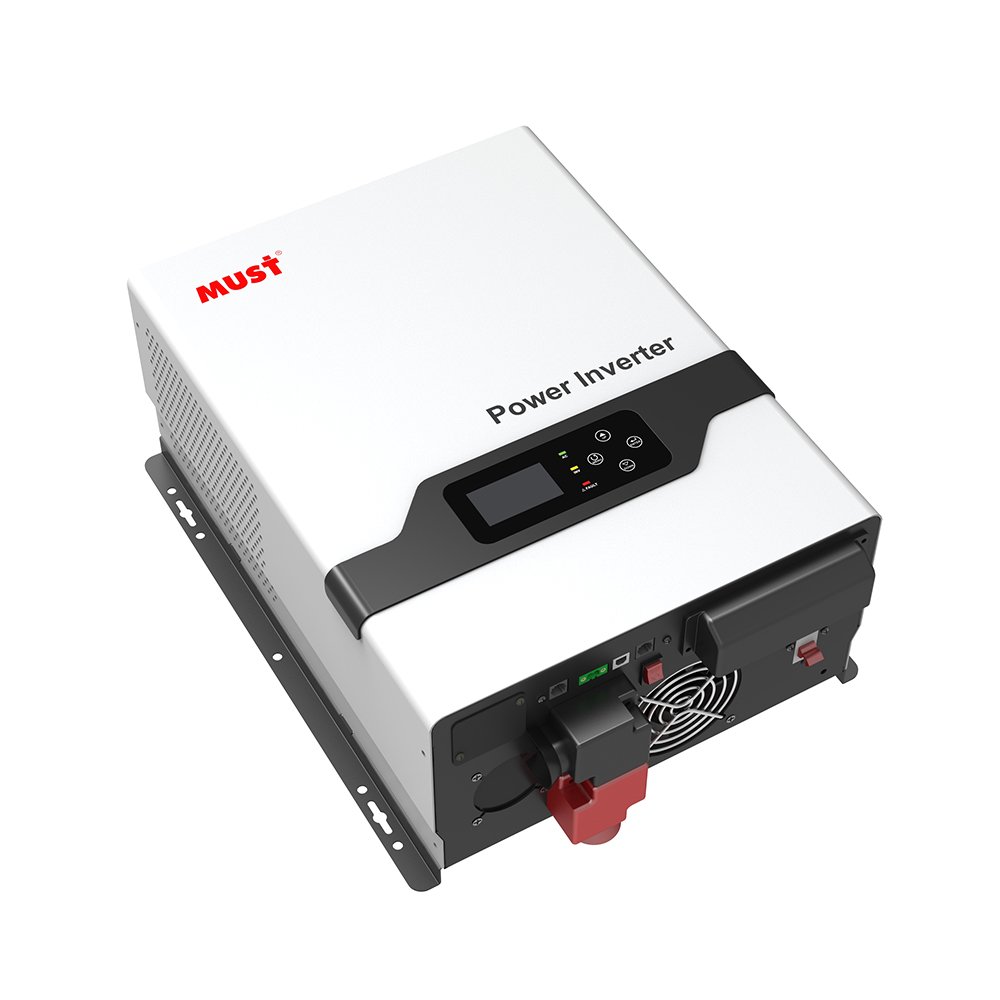

EP3300 TLV Series Low Frequency Pure Sine Wave Split Phase Inverter Charger (AC:110/220V 1-6KW)
This split phase inverter EP3300 TLV series, capacity from 1KW-6KW, DC 12V/24V/48V, it’s applicable to 110VAC\120VAC markets demands, which matches AC 110VAC\120V single phase, or two phase 220V\240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, you can also connect extra solar charge controller to build a solar home system, take use of sunshine freely and save electricity bills.
Features:
- Pure sine wave output
- 3 steps charging
- Overlord and short- circuit protection
- Set charging voltage/charging current
- Power-save mode
- Battery low voltage shutdown point can be set to 10/10.5/11/11.5V
- Inverter voltage can be set to 100/110/120V
- Inverter frequency can be set to 50/60Hz
- Acid or Lithium select
- Wifi port (optional)

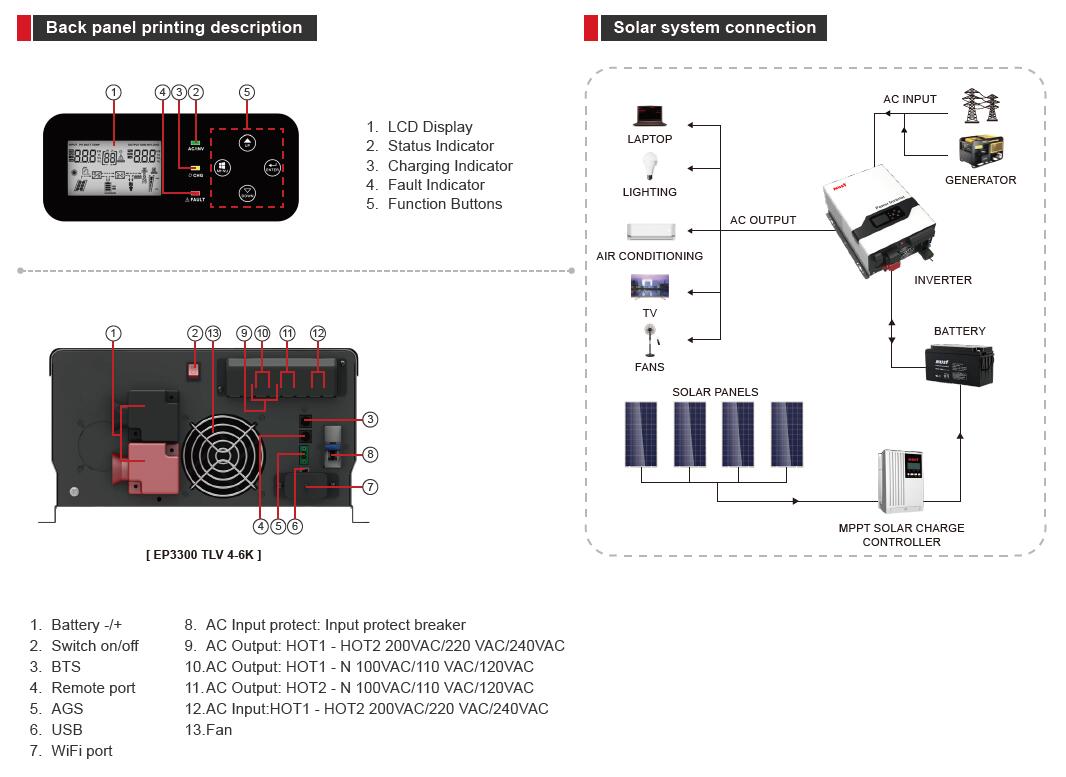

↓↓↓Installation Portfolio————
| MODEL | EP33- 1012 TLV | EP33- 1024 TLV | EP33- 1512 TLV | EP33- 1524 TLV | EP33- 2012 TLV | EP33- 2024 TLV | EP33- 3024 TLV | EP33- 3048 TLV | EP33- 4024 TLV | EP33- 4048 TLV | EP33- 5048 TLV | EP33- 6048 TLV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inverter Output | ||||||||||||
| Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable of starting electric motor | 1P | 1P | 1.5P | 1.5P | 2P | 3P | ||||||
| Power factor | 1 | |||||||||||
| Wave form | Pure sine wave / Same as input wave form (bypass mode) | |||||||||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC) ±10% | |||||||||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) (can be set) | |||||||||||
| Overload protection | Breaker + software protection | |||||||||||
| Output short circuit | Breaker + software protection | |||||||||||
| Inverter efficiency (peak) | >80% | |||||||||||
| Overload | 100% < Load < 110% (alarm 5min then stop output and fault code 07) 110% < Load < 125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) | |||||||||||
| Battery | ||||||||||||
| Battery voltage | 12VDC / 24VDC | 24VDC / 48VDC | 48VDC | |||||||||
| Minimum start voltage | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Low battery voltage cut off | 10V / 10.5V / 11V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Low battery voltage alarm | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| High battery voltage alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| High Battery Voltage Recover | (13.8-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Save mode | Load ≤50±20W(120V)/100±20W(220V) | |||||||||||
| AC Input Mode | ||||||||||||
| Input waveform | Pure sine wave | |||||||||||
| Nominal input voltage | 200Vac / 220Vac / 240Vac | |||||||||||
| Max input voltage | 270Vac MAX | |||||||||||
| Input frequency | 50Hz / 60Hz (auto sensing) | |||||||||||
| Efficiency (AC mode) | >95% (load, full battery) | |||||||||||
| Transfer time AC to DC | 15ms(max) | |||||||||||
| Transfer time DC to AC | 15ms(max) | |||||||||||
| Charge Mode | ||||||||||||
| Boost voltage | 14.1V(Default) Range of adjustment 13.8-14.5V / *2 for 24VDC / *4 for 48VDC (Regulation step 0.1V) | |||||||||||
| Float voltage | 13.5V(Default) Range of adjustment 13.5-13.7V / *2 for 24VDC / *4 for 48VDC (Regulation step 0.1V) | |||||||||||
| 12V | 30A | 45A | 60A | / | / | / | / | |||||
| 24V | 20A | 25A | 30A | 40A | 60A | / | / | |||||
| 48V | / | / | / | 20A | 30A | 35A | 40A | |||||
| Min charge current 10A. Change by every 5A | ||||||||||||
| Dimensions | ||||||||||||
| Dimensions (W*H*D) (mm) | 277*196*466mm | 277*186*621mm | ||||||||||
| Ship Dimensions (W*H*D) (mm) | 381*316*597mm | 381*306*752mm | ||||||||||
| Warranty | One year (standard), 2 years optional (IP20) | |||||||||||
