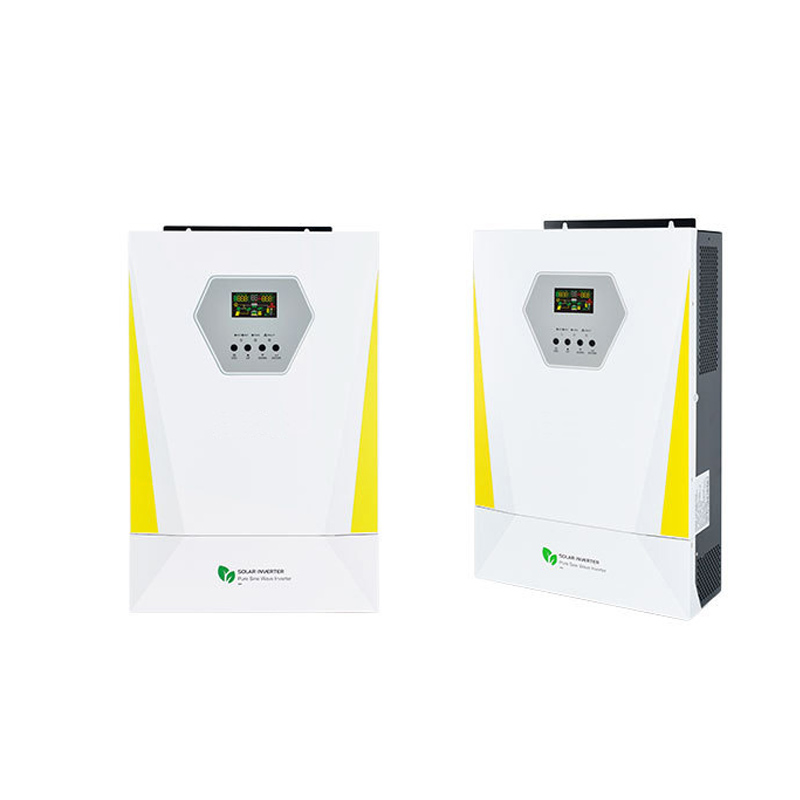

Off Grid Solar Inverter

GD Series(3-5kW)

Features:

1. Lithium battery auto-restart function
2. Utility charging voltage/PV charging voltage adjustable
3. Battery reverse connection protection with fuse switch
4. Support working without battery
5. High precision of output voltage, ±5%
6. Intelligent power supply mode
7. Slim body, convenient installation and transportation
8. PF1.0, high efficiency, low consumption

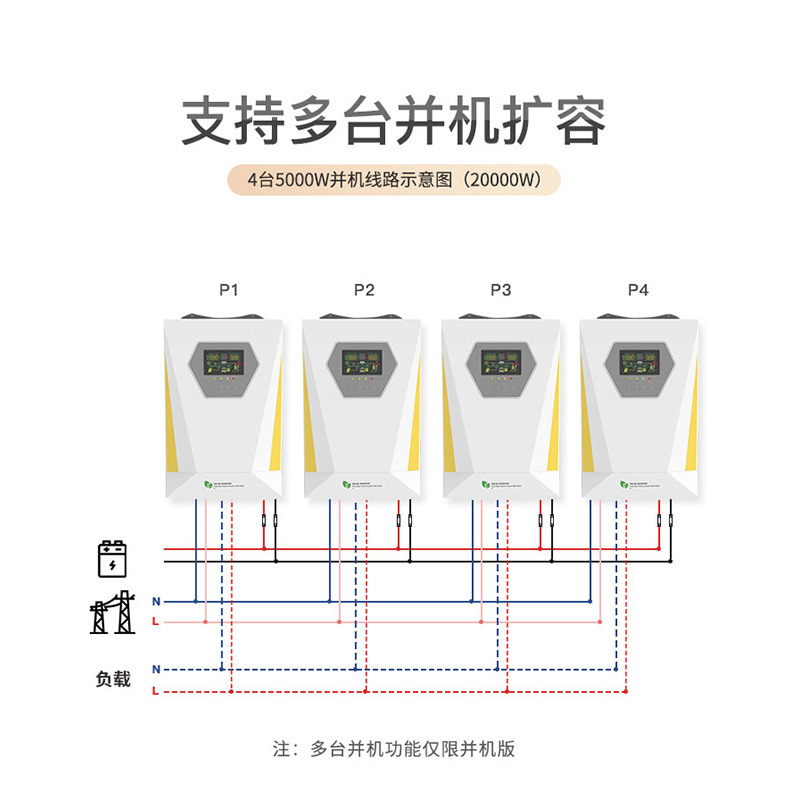

9. Parallel function up to maximum 9 units
10. Can be connected to external WIFI

Model		GB3024MH	GB3524MH	GB5048MH	GB5548MH	GB10048MH
Input	Input Sources	L+N+PE
	Rated Input Voltage	220/230/240VAC
	Voltage Range	90-280VAC+3V(APL Mode)170-280VAC+3V(UPS Mode)
	Freqency	50Hz/60Hz(Auto Ad aptive)
Output	Rated Capacity	3000W	3500W	5000W	5500W	10000W
	Output Voltage	220/230/240VAC+5%
	Output Frequency	50/60Hz+0.1%
	Waveform	Pure Sine Wave
	Transfer Time（adjustable）	Computers(U PS Mode)1 Oms, Appliance(APL Mode )20ms
	Peak Power	6000VA	7000VA	10000VA	11000VA	20000VA
	Over Load Ability	Battery Mode: 10.5s@11 0% 150%Load；5.5s@150% 200% Load；200ms @>200%Load
	Peak Efficiency (Battery Mode)	>94%	>94%	>94%	>94 %	>94%
Battery	Battery Votage	24Vdc	24Vdc	48Vdc	48Vdc	48Vdc
	Constant Charging Voltage (Adjustable)	28.2Vdc	28.2Vdc	56.4Vdc	56.4Vdc	56.4Vdc
	Flotage Charging Voltage (Adjustable)	27Vdc	27Vdc	54Vdc	54Vdc	54Vdc
Chargers	PV Charging Mode	MPPT	MPPT	MPPT	MPPT	MPPT Dual MPPT
	MAX.PV Input Power	4000W	4000W	5500W	5500W	2* 5500W
	MPPT Tracking Range	120-500Vdc	120-500Vdc	120-500Vdc	120-500Vdc	120-500Vdc
	Best Voltage	300-400V	300-400V	300-400V	300-400V	300-400V
	MAX.PV Input Vlotage	500Vdc	500Vdc	500Vdc	500Vdc	500Vdc
	MAX.PV Charging Current	100A	100A	100A	100A	160A
	MAX.AC Charging Current	60A	60A	60A	60A	120A
	MAX.Charging Current	100A	100A	100A	100A	160A
Dispaly	LCD Display	Display Running Mode/Loads/Input/Output etc.
Interface	RS232	5PIN/Pitch2.0mm. Baud Rate2400
	Communication Port	2x 5PIN/Pitch2.54mm,Lithium Lattery BMS Communication Card, WifiCard ,DryContact
	Parallel Connect Interface	With Parallel
Environments	Operating Temperature	0-40°C
	Humidity	20%-95%(Non-condensing)
	Storage Temperature	-15~60℃
	Altitude	Altiude Not Over 1000m,Derating over 1000m,Max 4000m. Refer to IEC62040
	Noise	≤50db
