Lithium Energy Storage System

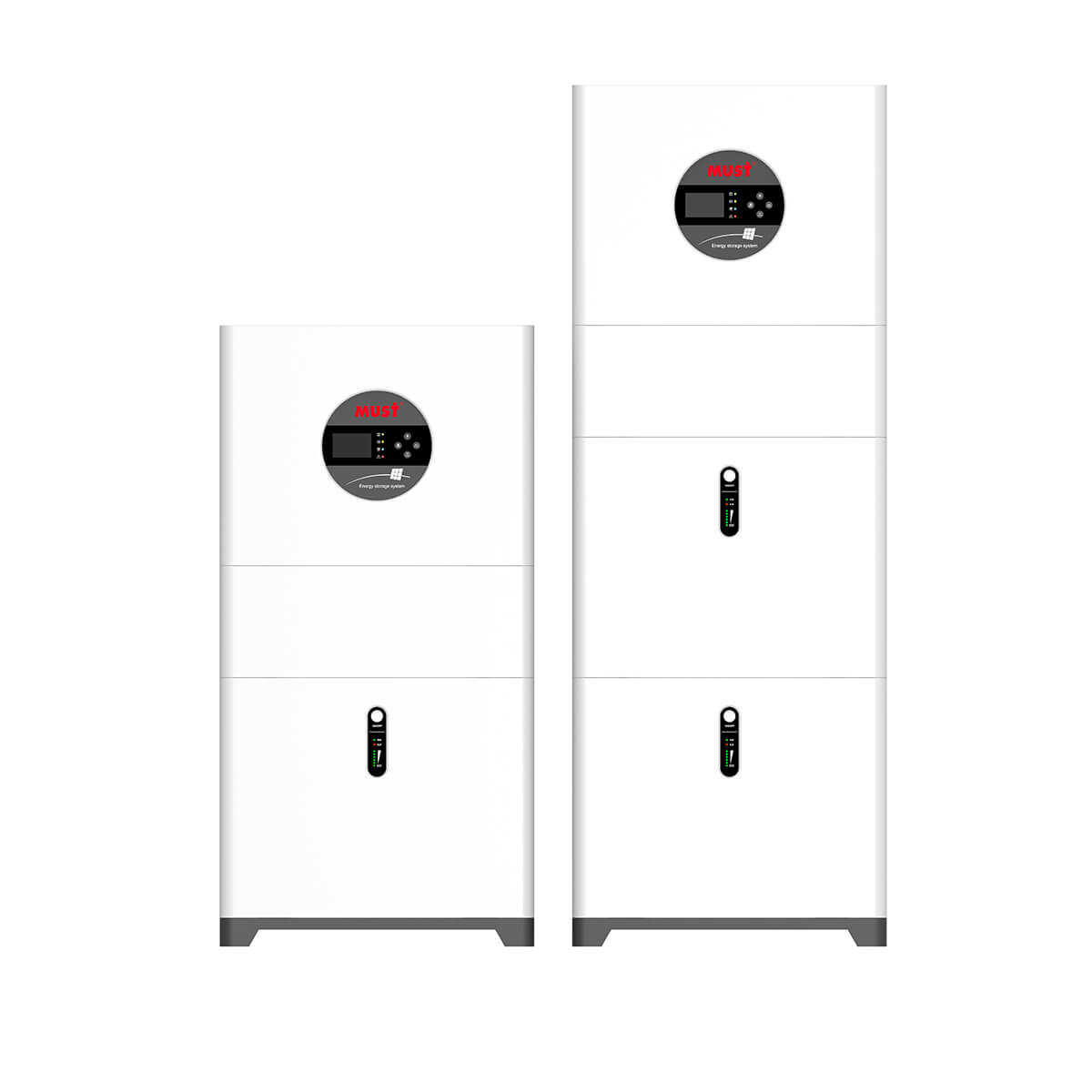

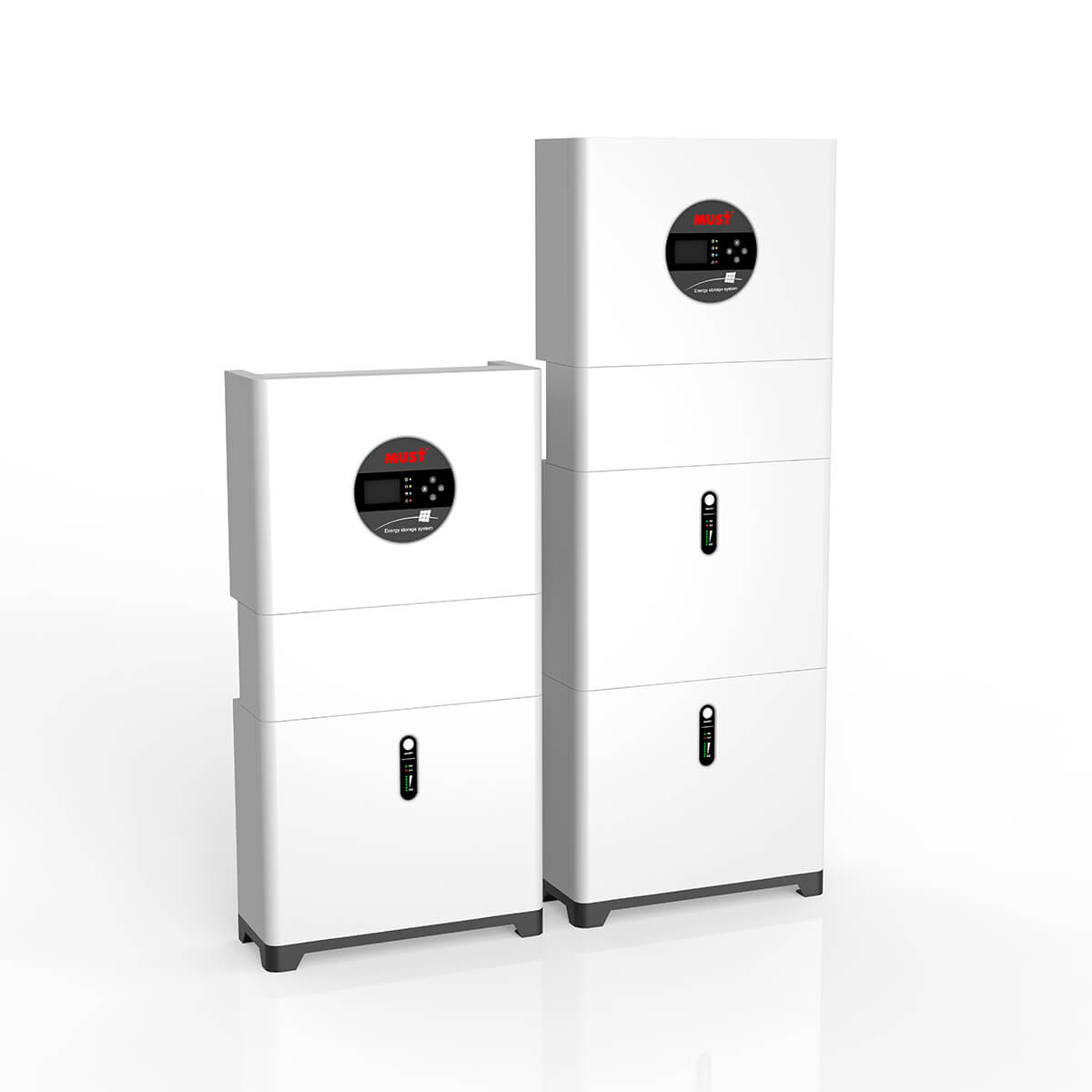

HBP1100 Series Home Solar Energy Storage System (5/6KW)

The HBP1100 energy storage system is an all-in-one solution that integrates a hybrid solar inverter and a lithium battery into one unit. This model combines functions for both off-grid and on-grid energy management, making it easy to store solar energy in your home battery.

Features:

  • Rated power: 5kW / 6kW
  • Lithium battery modular capacity: 5120Wh / 10240Wh
  • Self-consumption and feedback to the grid
  • Multiple working modes: energy storage mode, load priority mode, power selling mode, and a high-efficiency mode (six time periods are provided to set different modes to achieve peak-shaving and valley-filling, maximizing economic benefits)
  • Built-in BMS, supports charging and discharging according to BMS requirements
  • Supports connection with a generator
  • Automatic switch-over from the line to the battery
Get Pricing/Info


The flexible modular system can be designed based on your daily household consumption. The HBP1100 ESS makes it easy to select the priority of power supply, allowing you to either store the energy for self-consumption or sell it back to the grid.

The HBP1100 ESS is the best emergency energy solution for villas, apartments, hotels, and shopping centers.

↓↓↓Installation Portfolio————

MUSTENERGY

ModelHBP11-5048HBP11-6048
Nominal Battery System Voltage48VDC
INVERTER OUTPUT
Rated Power5000W6000W
WaveformPure Sine Wave
Nominal Output Voltage RMS220~240Vac
Output Voltage Regulation+10/-18%
Output Frequency50Hz/60Hz
Inverter Efficiency (Peak)97%
Typical Transfer Time10ms, 15ms max
AC INPUT
Voltage230VAC
Voltage Range180~280Vac
Frequency Range47.5~52.5Hz / 57.5~62.5Hz
BATTERY
Note: Below Parameters base on one LiFePO4 Lithium Battery Modular
Battery51.2VDC 100AH 5120/10240Wh
Low Battery Cutoff44VDC
Low Battery Alarm46VDC
Low Battery Voltage Recover48VDC
High Voltage Alarm58.5VDC
High Battery Voltage Recover57.5VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage500VDC
PV Array MPPT Voltage Range120~500VDC
Maximum Solar Charge Current100A125A
Maximum AC Charge Current100A125A
Maximum Charge Current100A125A
Charger Voltage56.5VDC56.5VDC
Charging Current100A100A
Charging Time1-2 hours1-2 hours
Overcharge Protection S.D.60VDC60VDC
Output
AC Output230Vac (Terminal)
BYPASS & PROTECTION
Nominal Input Frequency50Hz or 60Hz
Circuit breakerFUSE
Output Short Circuit Protection80A90A
Max Bypass Current23A27A
MECHANICAL SPECIFICATIONS
Dimensions (W*D*H) (mm)//
Shipping Dimensions (W*D*H) (mm)//
Shipping Weight (kg)//
OTHER
Operating Temperature Range-15℃ to 40℃
Ingress protection ratingIP65
Audible Noise60dB MAX
DisplayLED+LCD
Standard Warranty2 year
