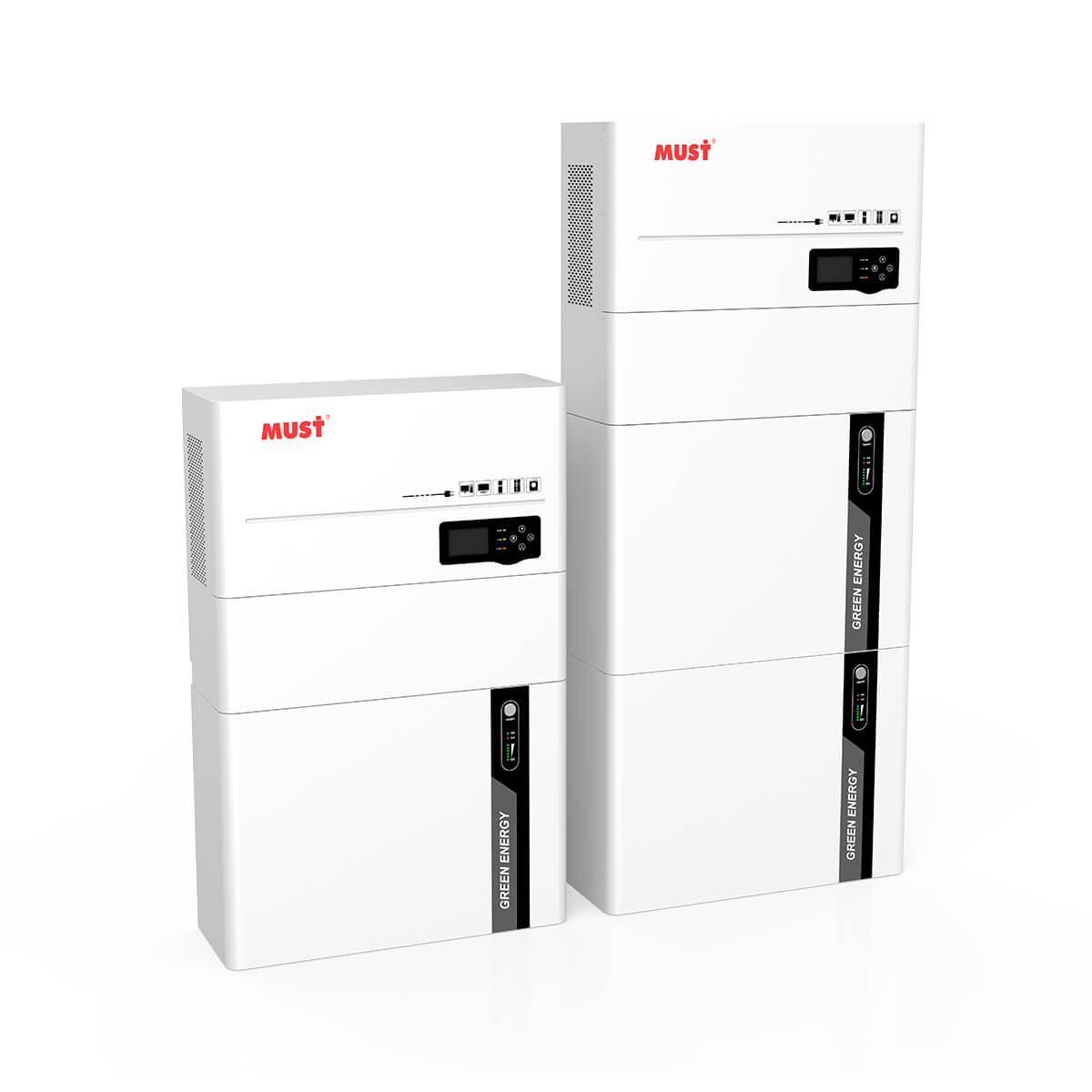

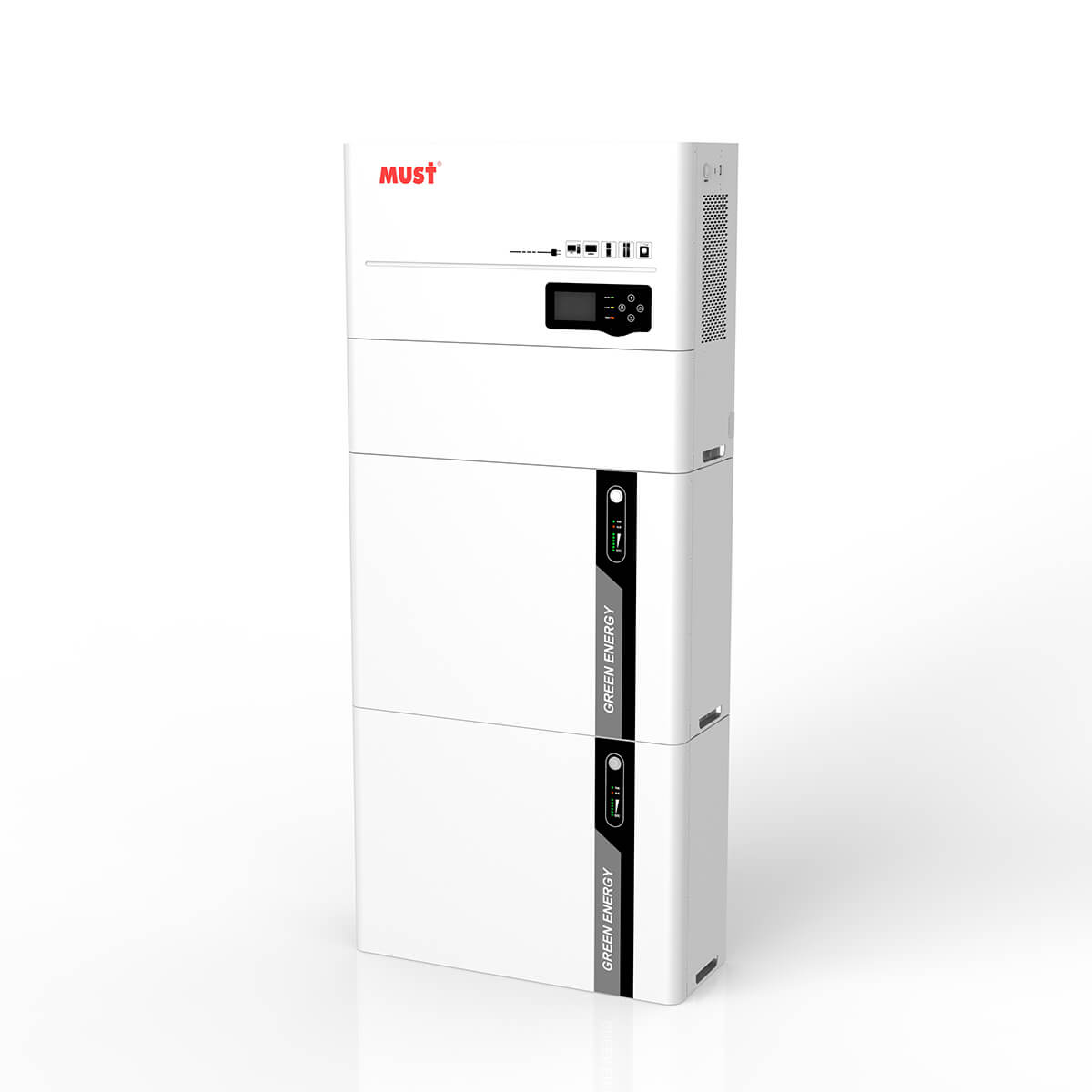

HBP1800 ES Series Home Solar Energy Storage System (3.5/5.5KW)
The HBP1800 ES energy storage system includes a 3.5 kW or 5.5 kW solar inverter and a lithium battery storage with optional energy ranging from 5120-10240 Wh. This one-stop service system makes it more convenient for you to manage your solar home battery storage.
Features:
- The product boasts a rated power output of 3.5KW/5.5KW.
- It uses a modular Lithium Battery with a 5120Wh capacity.
- The PCB board has a double-layer design.
- It is equipped with a display that shows the accumulated working time.
- An auto-restart feature is included that activates when AC power is restored.
- The product has several protection features, including overload and short-circuit protection, battery reverse polarity protection, and deep discharge protection.
- Advanced technology optimizes battery life.
- The product has an automatic line-to-battery switch-over feature.
Our flexible modular system can be designed based on your daily household energy consumption. This class-leading power station provides you with the power to run your daily household appliances, cabin workshops, or even provide power backup for your entire house for one or two days, depending on your demands. It’s the perfect emergency energy solution for villas, apartments, hotels, and shopping centers.
↓↓↓Installation Portfolio————
| Model | HBP18-3524 ES | HBP18-5548 ES | ||||
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 3500VA / 3500W | 5500VA / 5500W | ||||
| Waveform | Pure Sine Wave | |||||
| Nominal Output Voltage RMS | 230V | |||||
| Output Voltage Regulation | +10/-18% | |||||
| Output Frequency | 50Hz / 60Hz ± 0.5Hz | |||||
| Inverter Efficiency (Peak) | >93% | |||||
| Typical Transfer Time | <10ms , 15ms max | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |||||
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Note: Below Parameters base on one LiFePO4 Lithium Battery Modular | ||||||
| Battery | 25.6VDC 200AH 5120/10240Wh | 51.2VDC 100AH 5120/10240Wh | ||||
| Low Battery Cutoff | 23.2VDC | 46.4VDC | ||||
| Low Battery Alarm | 24.0VDC | 48.0VDC | ||||
| Low Battery Voltage Recover | 25.6VDC | 51.2VDC | ||||
| High Voltage Alarm | 29.0VDC | 58.0VDC | ||||
| High Battery Voltage Recover | 29.6VDC | 59.2VDC | ||||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 450VDC | |||||
| PV Array MPPT Voltage Range | 150~430VDC | |||||
| Maximum Solar Charge Current | 100A | 120A | ||||
| Maximum AC Charge Current | 80A | 100A | ||||
| Maximum Charge Current | 100A | 120A | ||||
| Charger Voltage | 28.8VDC | 57.6VDC | ||||
| Charging Current | 40A ± 2A | 60A ± 2A | ||||
| Overcharge Protection S.D. | 31VDC | 62VDC | ||||
| Output | ||||||
| AC Output | 230Vac (Terminal) | |||||
| BYPASS & PROTECTION | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||
| Circuit breaker | FUSE | |||||
| Bypass breaker rating | 32A | 40A | ||||
| MECHANICAL SPECIFICATIONS | ||||||
| Dimensions (W*D*H) (mm) | 512Wh: 596*220*920; 10240Wh: 596*220*1345 | |||||
| Shipping Dimensions (W*D*H) (mm) | / | |||||
| Shipping Weight (kg) | / | / | ||||
| OTHER | ||||||
| Operating Temperature Range | -10℃ to 50℃ | |||||
| Audible Noise | 60dB MAX | |||||
| Display | LED+LCD | |||||
| Standard Warranty | 2 year | |||||
