HBP1800 MT Series Home Solar Energy Storage System (3/5.2KW)

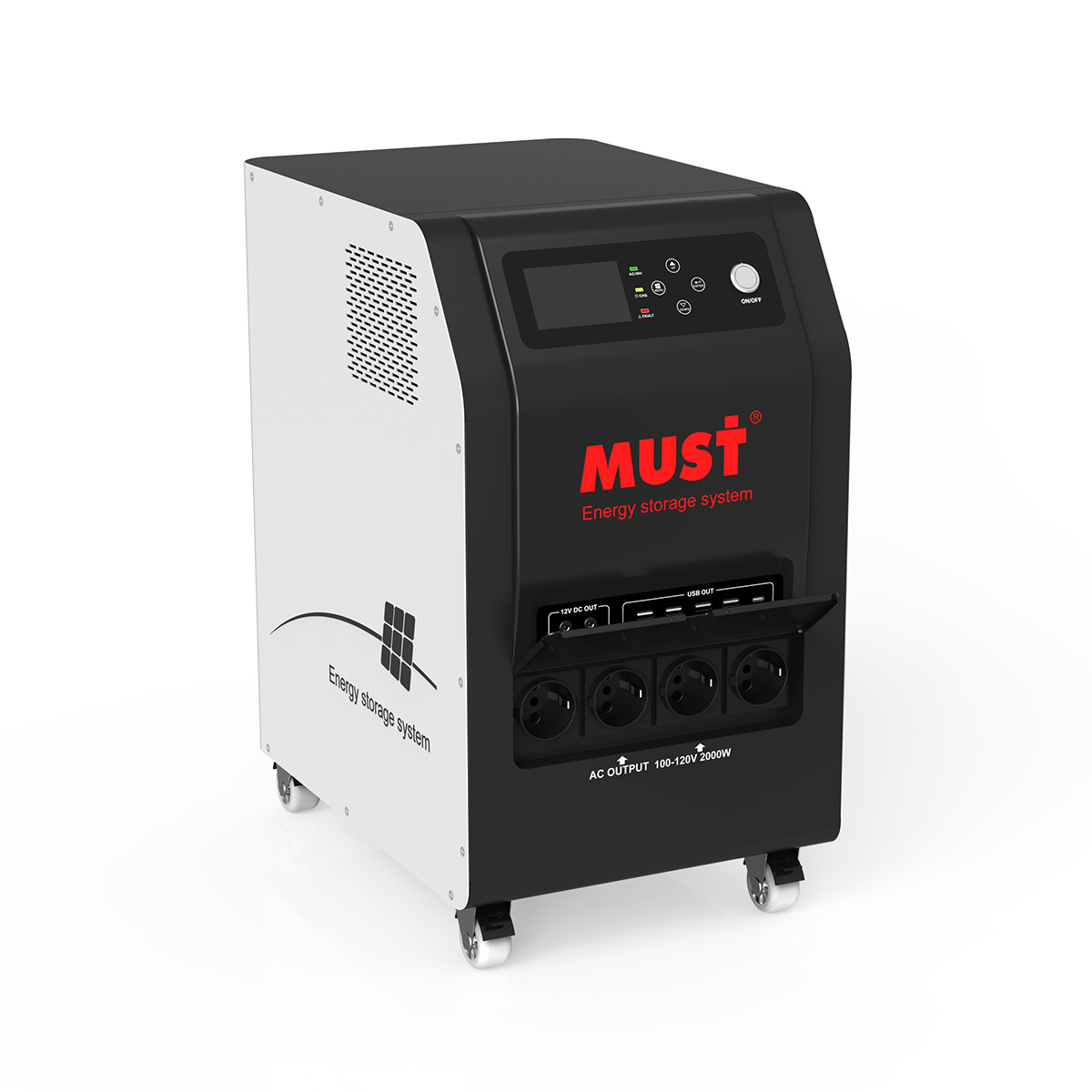

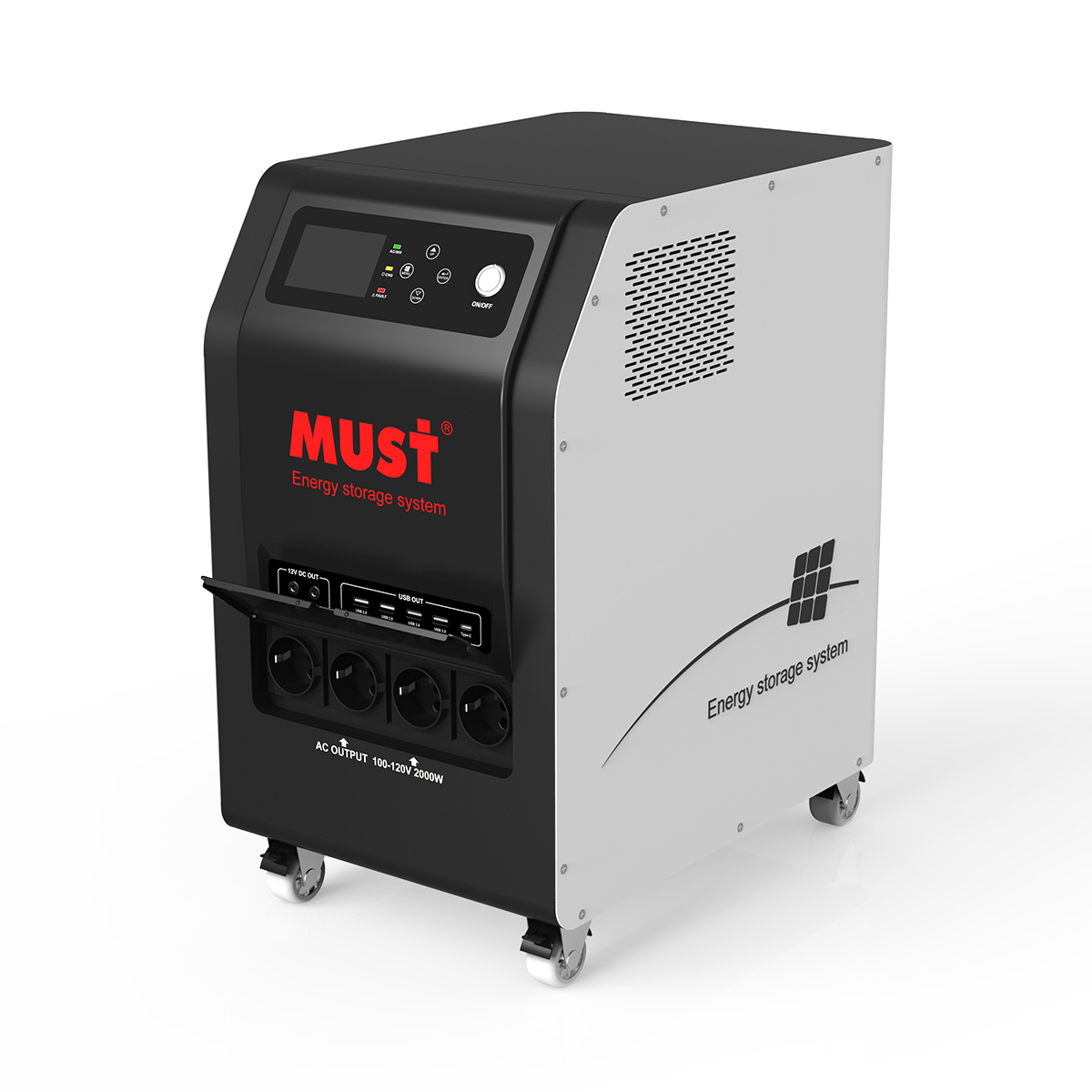

The HBP1800 MT power station is an exceptional device that boasts a 3072Wh or 12288Wh LiFePO4 battery pack and a pure sine wave solar inverter rated at 3000W or 5200W. Unlike its competitors, this power station is capable of powering your entire party, family camping trip, cabin workshops, or even your entire home for up to two days during unexpected power outages. With 11 outlets and a maximum capacity, it can easily power all your devices, including laptops, air conditioners and more.
Features:
- 3072Wh / 12288Wh LiFePO4, 4000+ Cycles to 80% Capacity
- 3KW/5.2KW Pure Sine Wave Output
- Flexible UPS Mode(24/7)
- Movable Power Station
- Off-grid Energy Storage
- Multiple Devices Can Be Loaded Simultaneously
- Flexible Recharging Way To Keep Your HBP1800 MT Always On
- App Remote Control

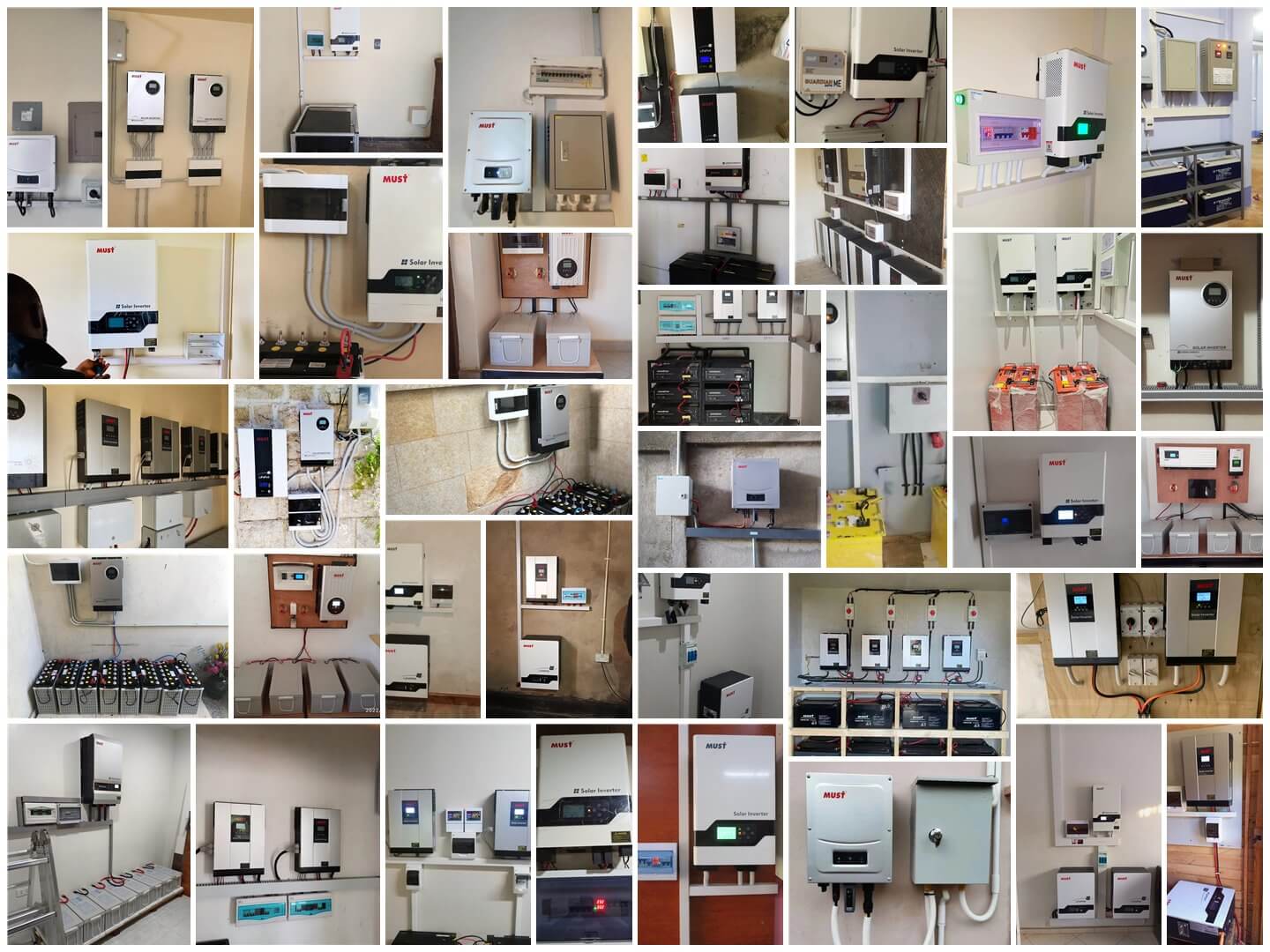

↓↓↓Installation Portfolio————
| MODEL | HBP18-3024MT | HBP18-5248MT |
|---|---|---|
| Inverter | ||
| Rated power | 3000W | 5200W |
| Output voltage waveform | Pure sine wave | |
| Output voltage regulation | 230Vac ±5% | |
| Output frequency | 50Hz / 60Hz (±0.2Hz) | |
| Peak efficiency | 90% | 93% |
| Nominal DC input voltage | 24Vdc | 48Vdc |
| Standby Consumption | < 25W | |
| PV Input | ||
| Max solar power input | 1800W | 5000W |
| PV max charging current | 60A | 100A |
| Combined charging current | 80A | 140A |
| Max efficiency | 98.0% max | |
| PV array open circuit voltage | 145Vdc | 450Vdc |
| PV Array MPPT Voltage Range | 30~120Vdc | 150~430Vdc |
| AC Input | ||
| AC input voltage | 230Vac ±5% | |
| Acceptable input voltage range | 90-280Vac | 170-280Vac |
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |
| AC Charge | ||
| Charging current @ Nominal input voltage | 20A/30A | 80A |
| Charging Algorithm | 4-step (Li) | |
| Output | ||
| AC output | 230Vac (Socket *4pcs) | |
| Type-C | DC output*1pcs | |
| USB (5V 2.4A) | DC output*4pcs | |
| USB (12V 1A) | DC output*2pcs | |
| Lithium Battery | ||
| Energy | 3072Wh | 12288Wh |
| Nominal voltage | 25.6V | 51.2V |
| Battery capacity | 120Ah | 240Ah |
| Protection board | 50A | 30-100A |
| Standard charging & discharge current | 50A | 100A |
| Operation temperature | ||
| Charge | 10~50℃ | |
| Discharge | -20~55℃ | |
