Lead Acid Replacement 12/24V

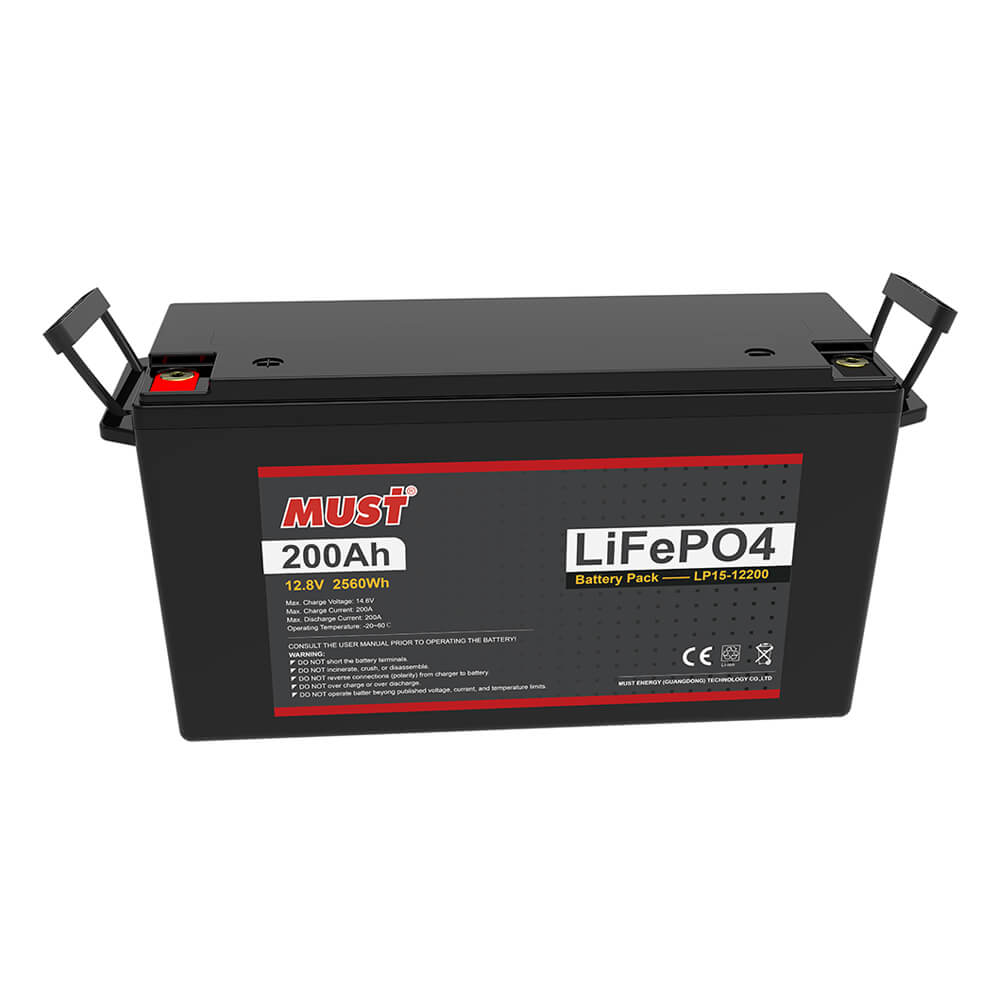

Lithium Iron Phosphate Battery LP15-12200 (12.8V/200Ah)

With smart design and elegant appearance, MUST LiFePO4 battery is an ideal replacement for traditional lead acid battery,offering a drop-in solution for lead acid battery replacement. Our battery can be used individually or assembled in series to create larger system.

Features:

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
Low maintenance batteries with stable chemistry;
Battery Management System (BMS) is incorporated against abuse;
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Get Pricing/Info

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Caravan
•Marine
•Golf Car
•Buggies

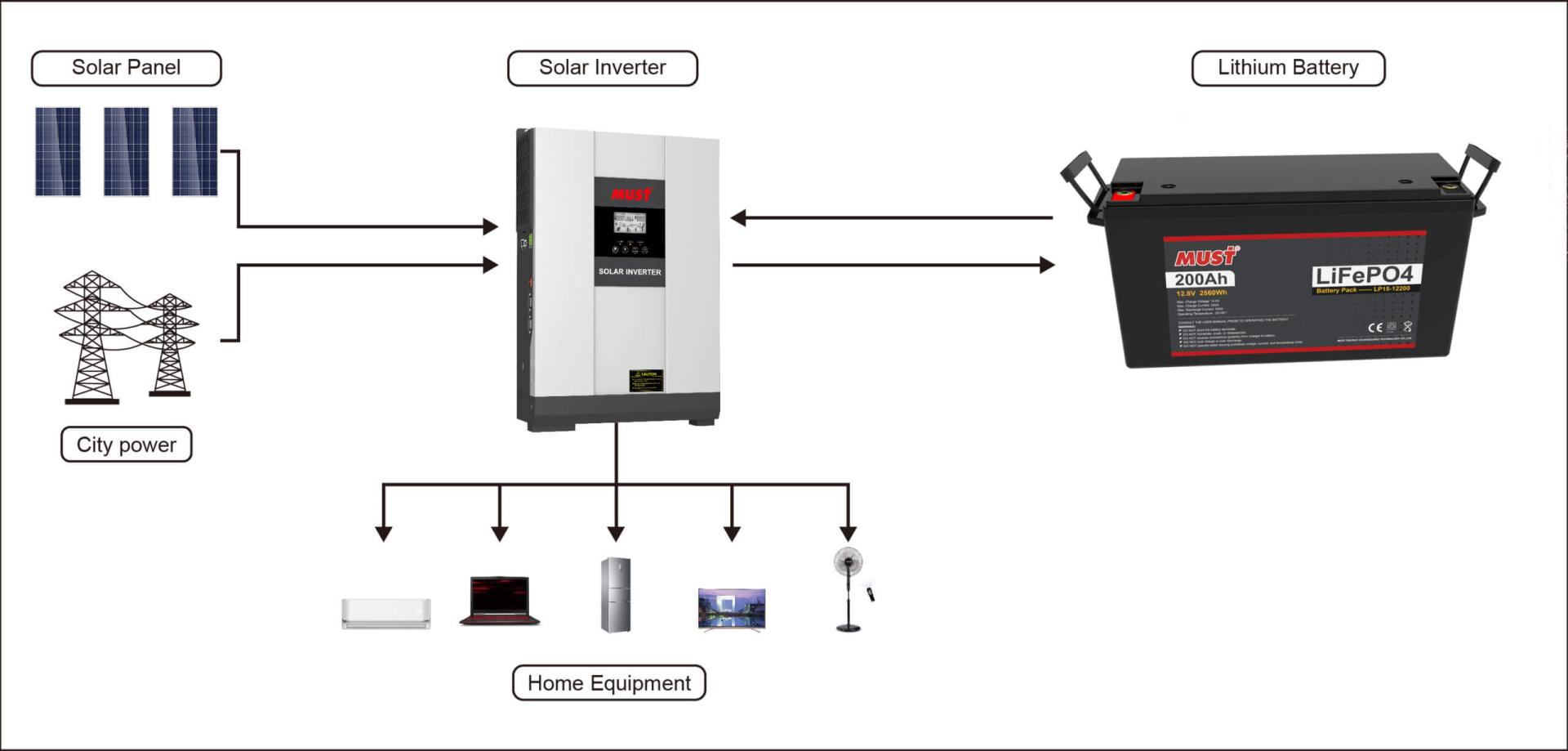

•Solar Storage
•Remote Monitoring
•Switching applications and more

FEATURES & BENEFITS

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL		LP15-12200
Nominal voltage		12.8V
Nominal Capacity		200Ah
Nominal energy		2560Wh
Life Cycles		6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage		14.6V
Recommended Charge Current		20.0A
End of discharge voltage		10.0V
Standard method	Charge	40.0A
Standard method	Discharge	100.0A
Maximum continuous current	Charge	200.0A
Maximum continuous current	Discharge	200.0A
BMS Cut-Off Voltage	Charge	<15.6 V (3.9V/Cell)
BMS Cut-Off Voltage	Discharge	>8.0 V (2s) (2.0V/Cell)
Temperature	Charge	-4 ~ 113 ℉ (0 ~ 45℃ )
Temperature	Discharge	-4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature		23~95 ℉ (-5~35℃ )
Shipment voltage		≥12.8V
Case Material		ABS+PC
Dimension (L x W x H)		483 x 170 x 240 mm 19.0 x 6.7 x 9.4”
Approx. Weight		50.7 lbs (23 kg)
Charge retention and capacity recovery capability		Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
