Lead Acid Replacement 12/24V

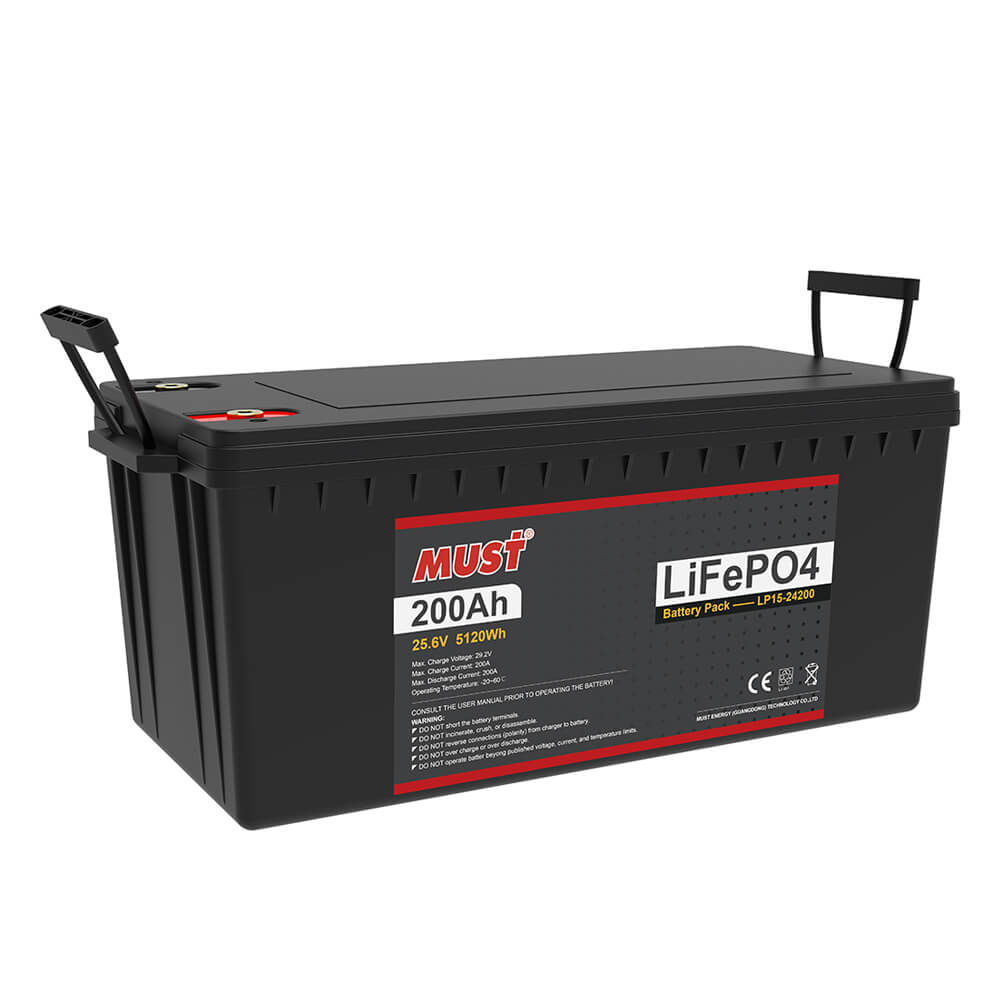

Lithium Iron Phosphate Battery LP15-24200 (25.6V/200Ah) Lithium Iron Phosphate Battery LP15-24200 (25.6V/200Ah)

This battery comes equipped with a state of the art built-in Battery Management System (BMS). The Humless Lithium-Iron battery is lighter, more compact, and more powerful than traditional lead-acid batteries.

Features:

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
Low maintenance batteries with stable chemistry;
Battery Management System (BMS) is incorporated against abuse;
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Get Pricing/Info

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL		LP15-24200
Nominal voltage		25.6V
Nominal Capacity		200Ah
Nominal energy		5120Wh
Life Cycles		6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage		29.2V
Recommended Charge Current		20.0A
End of discharge voltage		20.0V
Standard method	Charge	40.0A
Standard method	Discharge	100.0A
Maximum continuous current	Charge	100.0A/ 200.0A
Maximum continuous current	Discharge	100.0A/ 200.0A
BMS Cut-Off Voltage	Charge	<31.2 V (3.9V/Cell)
BMS Cut-Off Voltage	Discharge	>16.0 V (2s) (2.0V/Cell)
Temperature	Charge	-4 ~ 113 ℉ (0 ~ 45℃ )
Temperature	Discharge	-4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature		23~95 ℉ (-5~35℃ )
Shipment voltage		≥25.6V
Case Material		ABS+PC
Dimension (L x W x H)		522 x 240 x 218 mm 20.6 x 9.5 x 8.6
Approx. Weight		99.2 lbs (45 kg)
Charge retention and capacity recovery capability		Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
