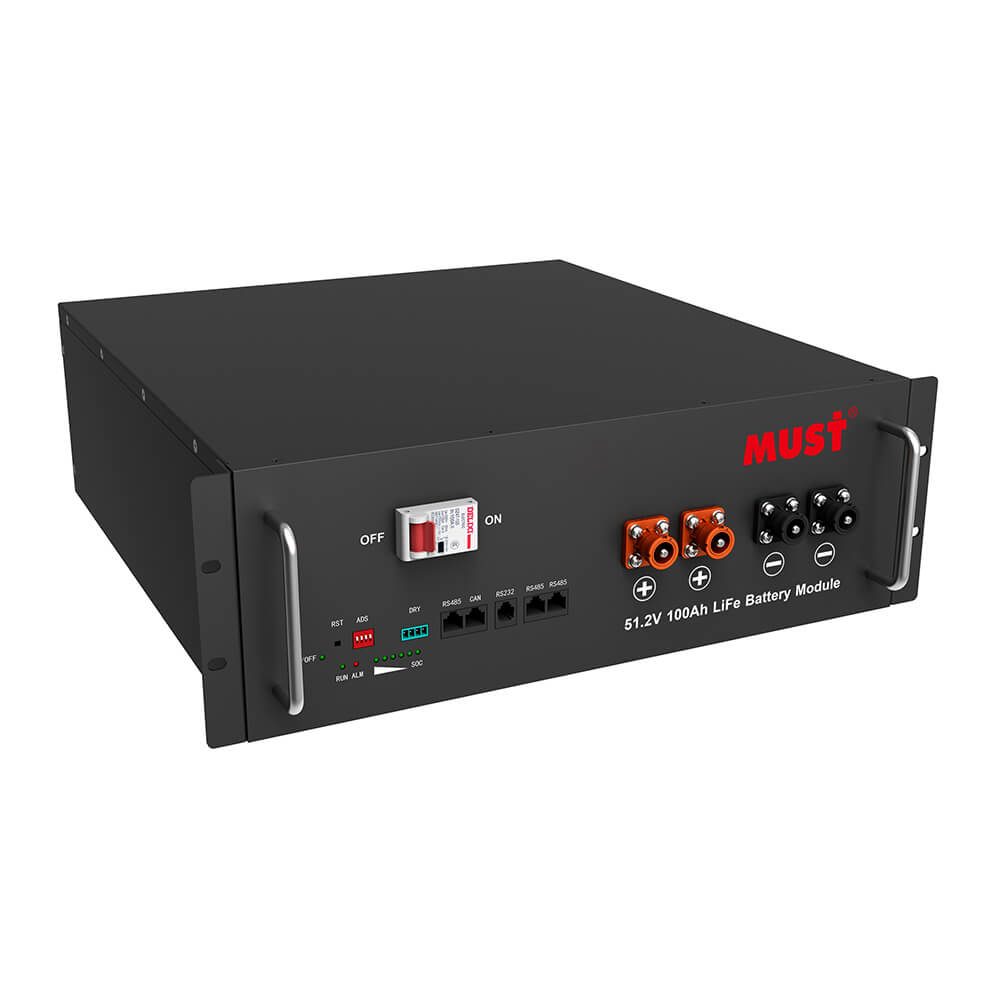

Rack Mounted 48V

Lithium Iron Phosphate Battery LP18-48100-15 (48V/100Ah)

It’ s long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflects the real requirements of end users and strongest technical capability of MUST's.Widely used in microgrid energy storage, photovoltaic energy storage, computer data ROM stand-by power, UPS and etc.

Features:

  • 6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
  • Low maintenance batteries with stable chemistry;
  • Battery Management System (BMS) is incorporated against abuse;
  • up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
  • Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
  • Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
  • Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Get Pricing/Info


APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS


FEATURES & BENEFITS

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

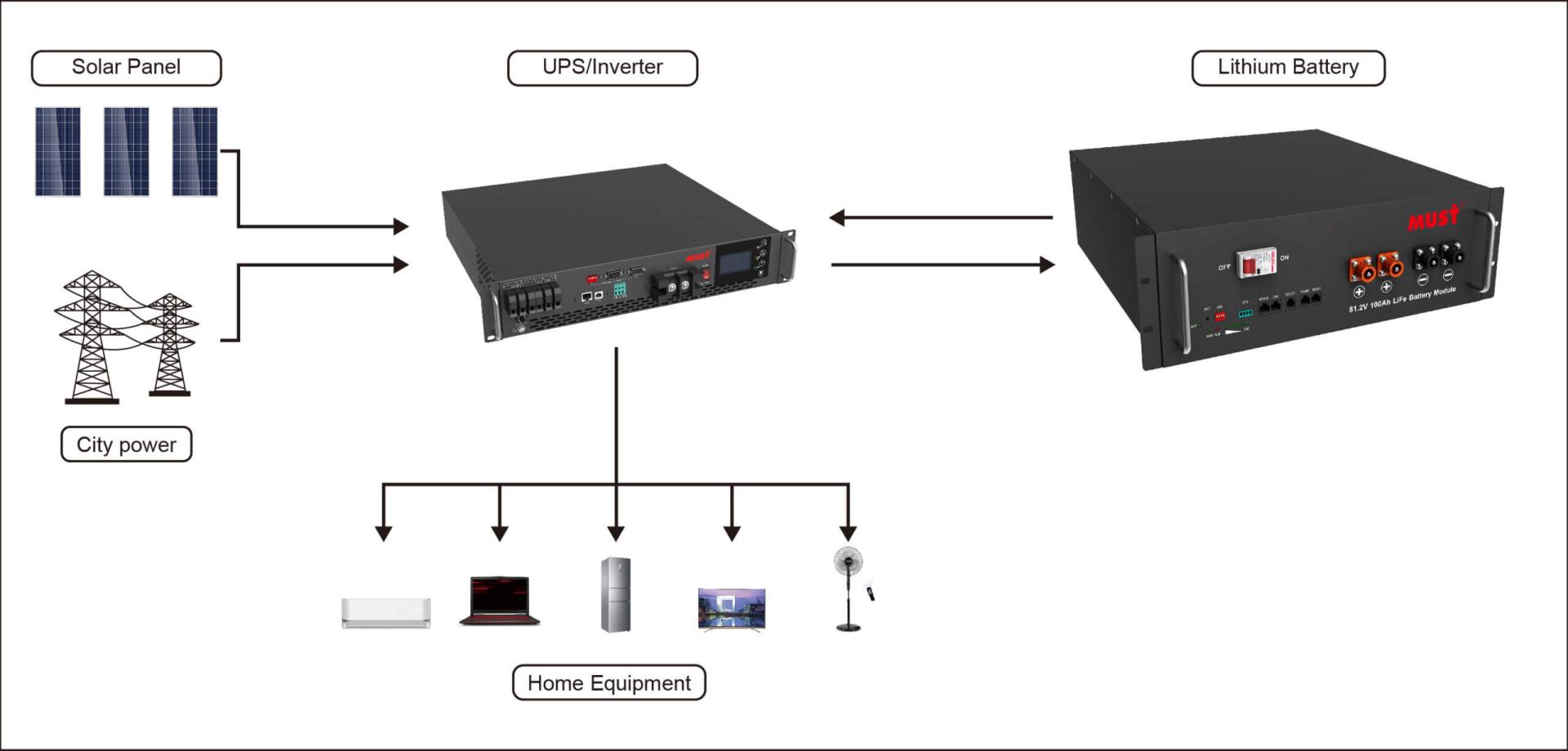

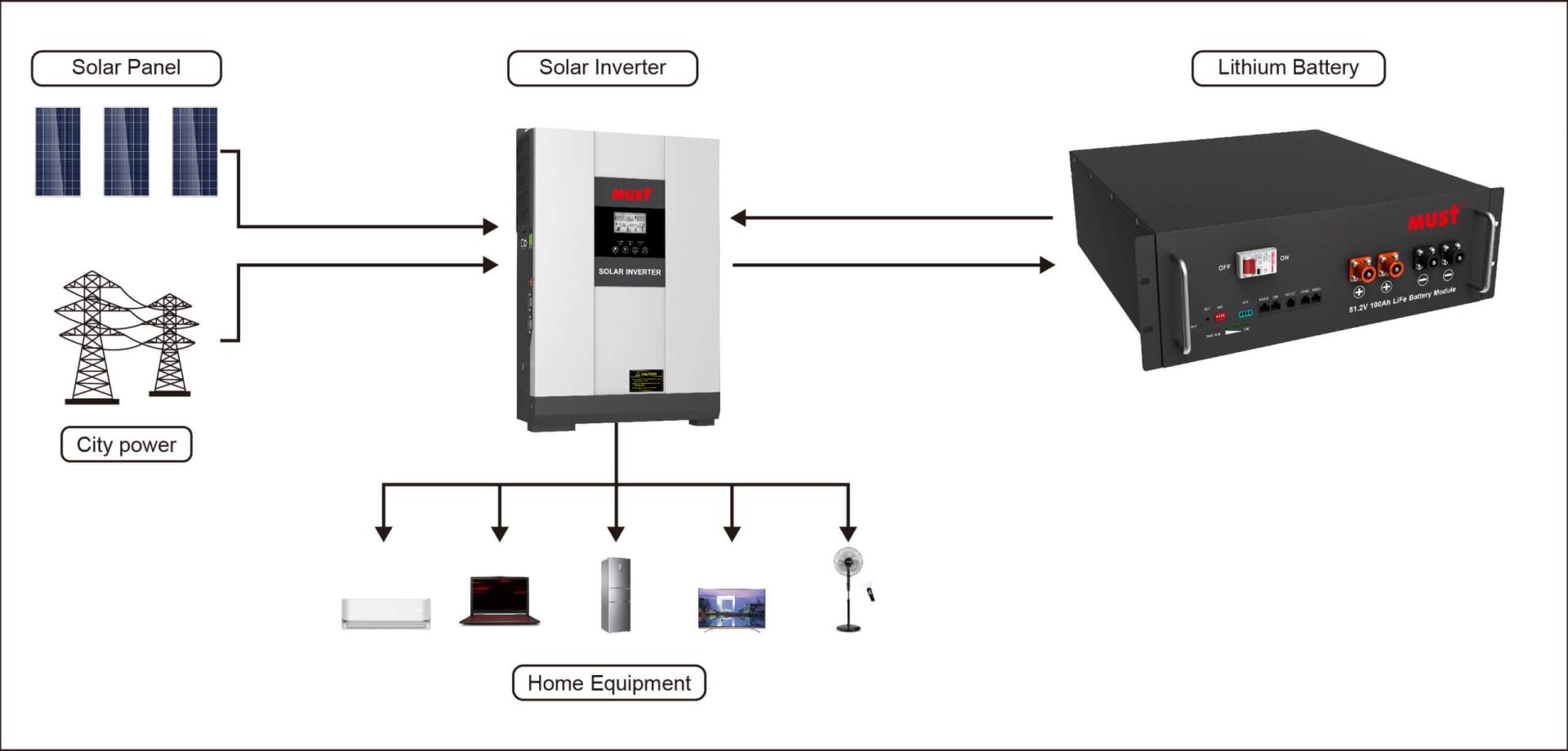

↓↓↓Installation Portfolio————

MUSTENERGY

ELECTRICAL PERFORMANCE

Nominal Voltage48 V
Nominal Capacity100 Ah
Capacity @ 20A300 min
Energy5120 Wh
CommunicationCAN2.0/RS232/RS485
Resistance≤40 mΩ @ 50% SOC
Efficiency>96%
Module ParallelUp to 16 packs

CHARGE PERFORMANCE

Recommended Charge Current20A
Maximum Charge Current100A
Recommended Charge Voltage54V
BMS Charge Cut-Off Voltage<54.7 V (3.65V/Cell)
Reconnect Voltage>54 V (3.6V/Cell)
Balancing Voltage<54 V (3.6V/Cell)
Maximum Batteries in Series15 (*Consult MUST)

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current100 A
Peak Discharge Current110 A (3s)
BMS Discharge Cut-Off Current150 A (300ms)
Balancing open voltage51.7 V (3.45V/Cell)
Recommended Low Voltage Disconnect41.2 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage>30.0V (2s) (2.0V/Cell)
Reconnect Voltage>37.5 V (2.5V/Cell)
Short Circuit Protection250 ~ 500 μs

COMPLIANCE

CertificationsCE (battery) UN38.3 (battery) UL1642 & IEC62133 (cells)
Shipping ClassificationUN 3480, CLASS 9

MECHANICAL PERFORMANCE

Dimension (L x W x H)482 x 480 x 133 mm 19.0 x 18.9 x 5.2″
Approx. Weight20.0 lbs (44 kg)
Terminal TypeDIN POST
Terminal Torque80 ~ 100 in-lbs (9 ~ 11 N-m)
Case MaterialSPPC
Enclosure ProtectionIP54

TEMPERATURE PERFORMANCE

Discharge Temperature-4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature-4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off149 ºF (65 ºC)
Reconnect Temperature131 ºF (55 ºC)

HEATING FOIL PERFORMANCE

Heating Temperature Range-4 to 41 ºF (-20 to 5 ºC)
Heating TimeApproximately 1 hour @ 7.5 A
BMS Heating Foil Cut-Off158 ºF (70 ºC)
