Lithium Iron Phosphate Battery LP18-48200 (51.2V/200Ah) Visench

sa@visenchenergy.com WhatsApp | WeChat | Tel: +86 181 2395 8880 (George)

Rack Mounted 48V

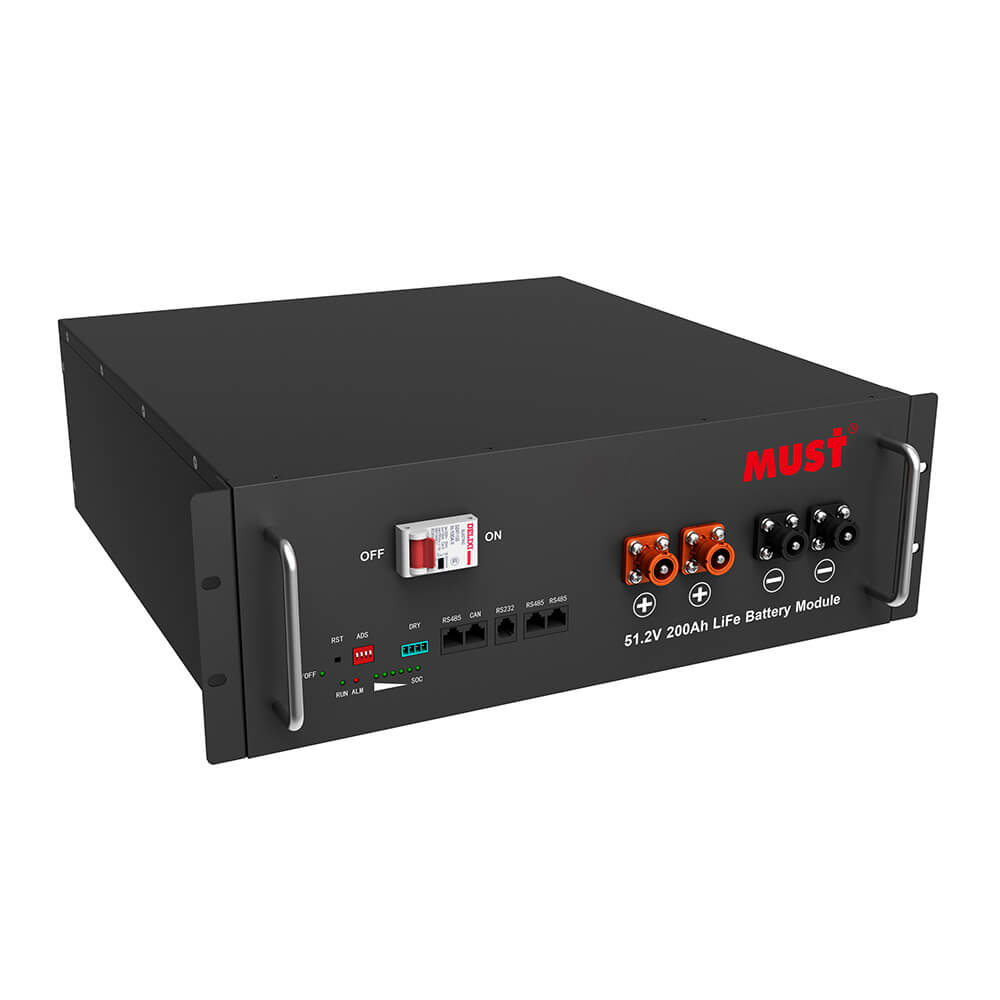

Lithium Iron Phosphate Battery LP18-48200 (51.2V/200Ah)

MUST's 19 inches rack standard backup battery is based on Lithium iron phosphate battery, It has been designed to provide backup power for telecom equipment or energy storage system in household. It has excellent safety, high energy density, long lifetime, very nice temperature performance, green power newly of excellent safety and high reliability.

Features:

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
Low maintenance batteries with stable chemistry;
Battery Management System (BMS) is incorporated against abuse;
Battery Management System (BMS) is incorporated against abuse; up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Get Pricing/Info

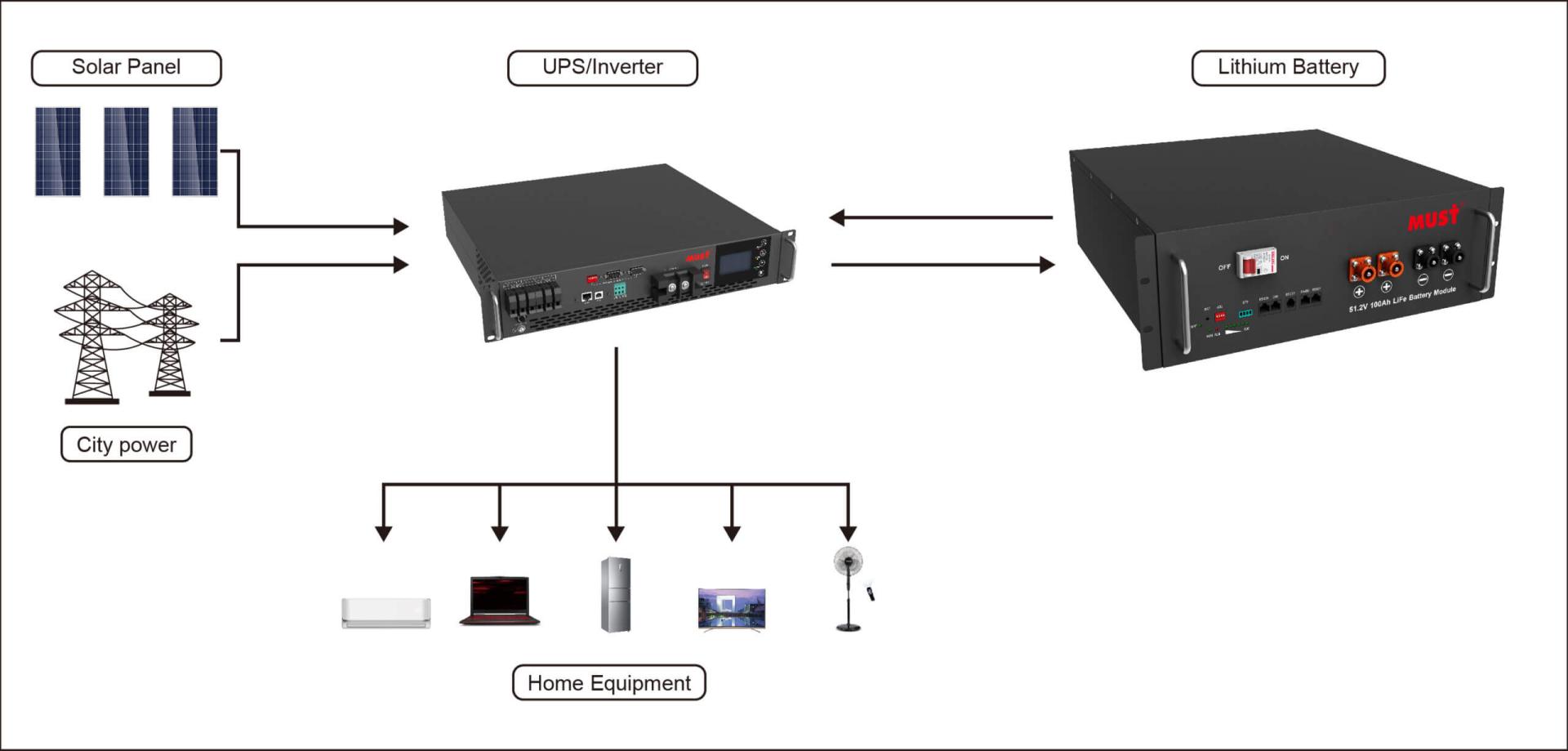

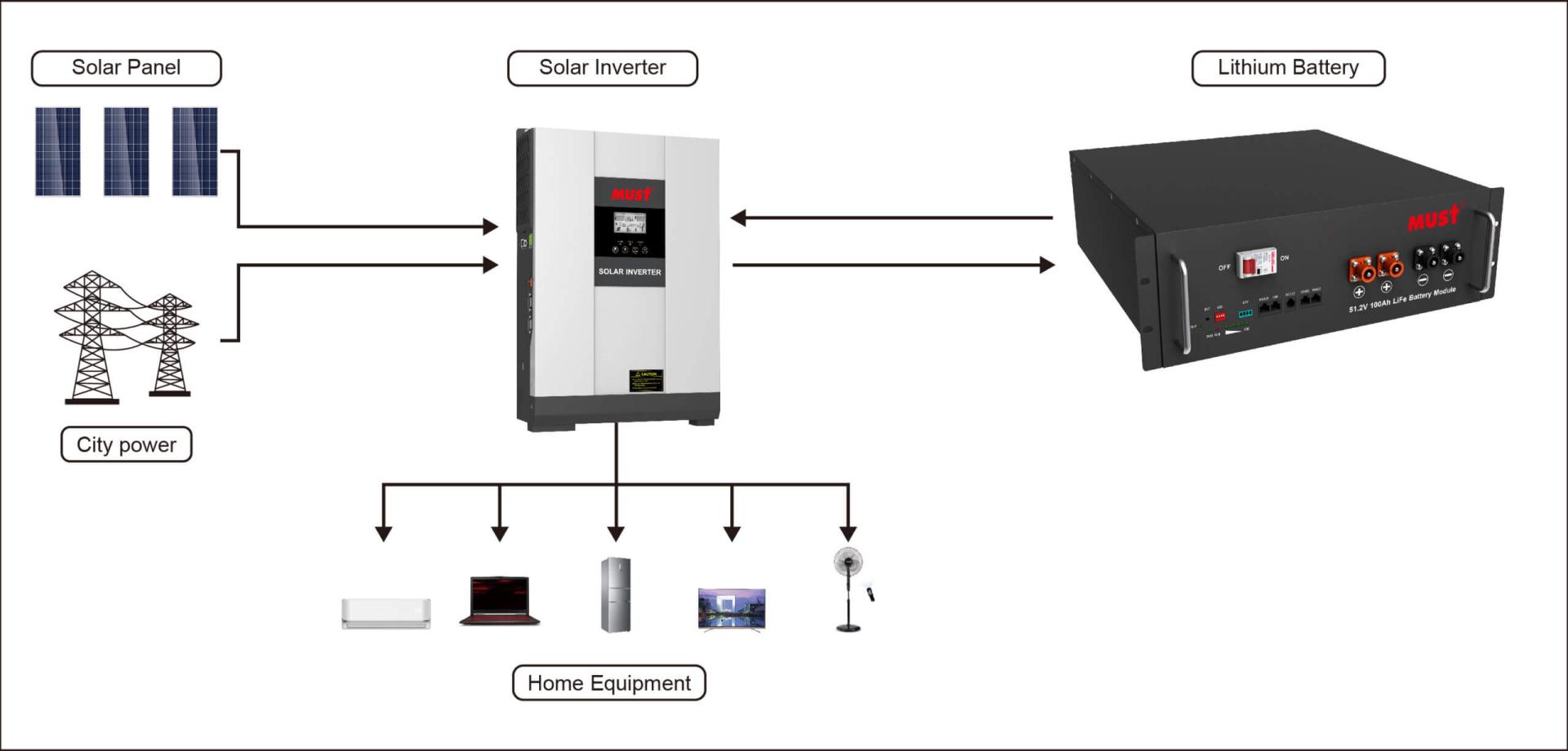

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS

FEATURES & BENEFITS

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL		LP18-48200
Nominal voltage		51.2V
Nominal Capacity		200Ah
Nominal energy		10240Wh
Life Cycles		6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage		57.6V
Recommended Charge Current		20.0A
End of discharge voltage		44.0V
Standard method	Charge	40.0A
Standard method	Discharge	100.0A
Maximum continuous current	Charge	100.0A
Maximum continuous current	Discharge	100.0A
BMS Cut-Off Voltage	Charge	<58.4 V (3.65V/Cell)
BMS Cut-Off Voltage	Discharge	>32.0V (2s) (2.0V/Cell)
Temperature	Charge	-4 ~ 113 ℉ (0 ~ 45℃ )
Temperature	Discharge	-4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature		23~95 ℉ (-5~35℃ )
Shipment voltage		≥51.2V
Module Parallel		Up to 4 units
Communication		CAN2.0/RS232/RS485
Case Material		SPPC
Dimension (L x W x H)		482 x 500 x 222 mm 19.0 x 19.7 x 8.7”
Approx. Weight		176.3 lbs (80 kg)
Charge retention and capacity recovery capability		Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
