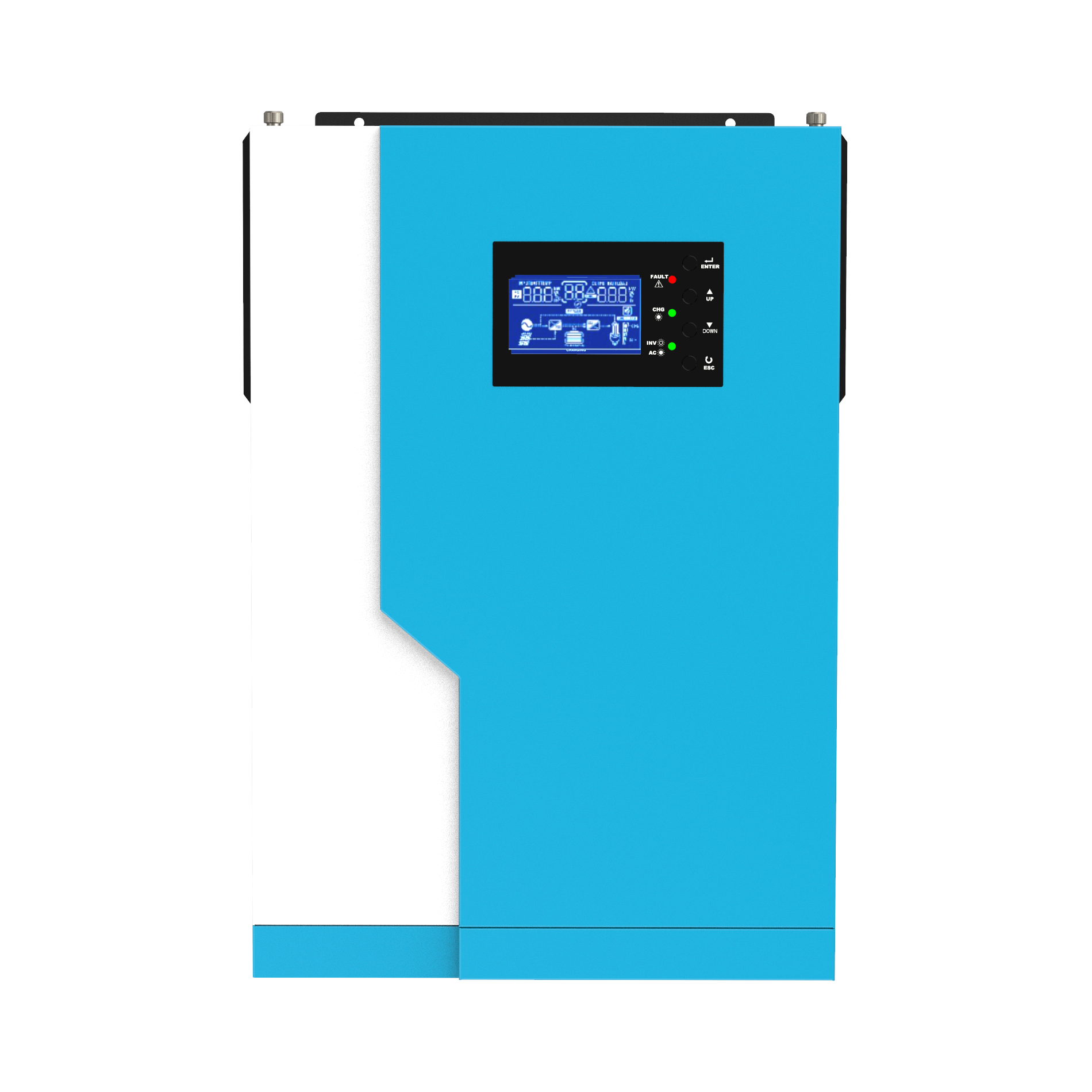

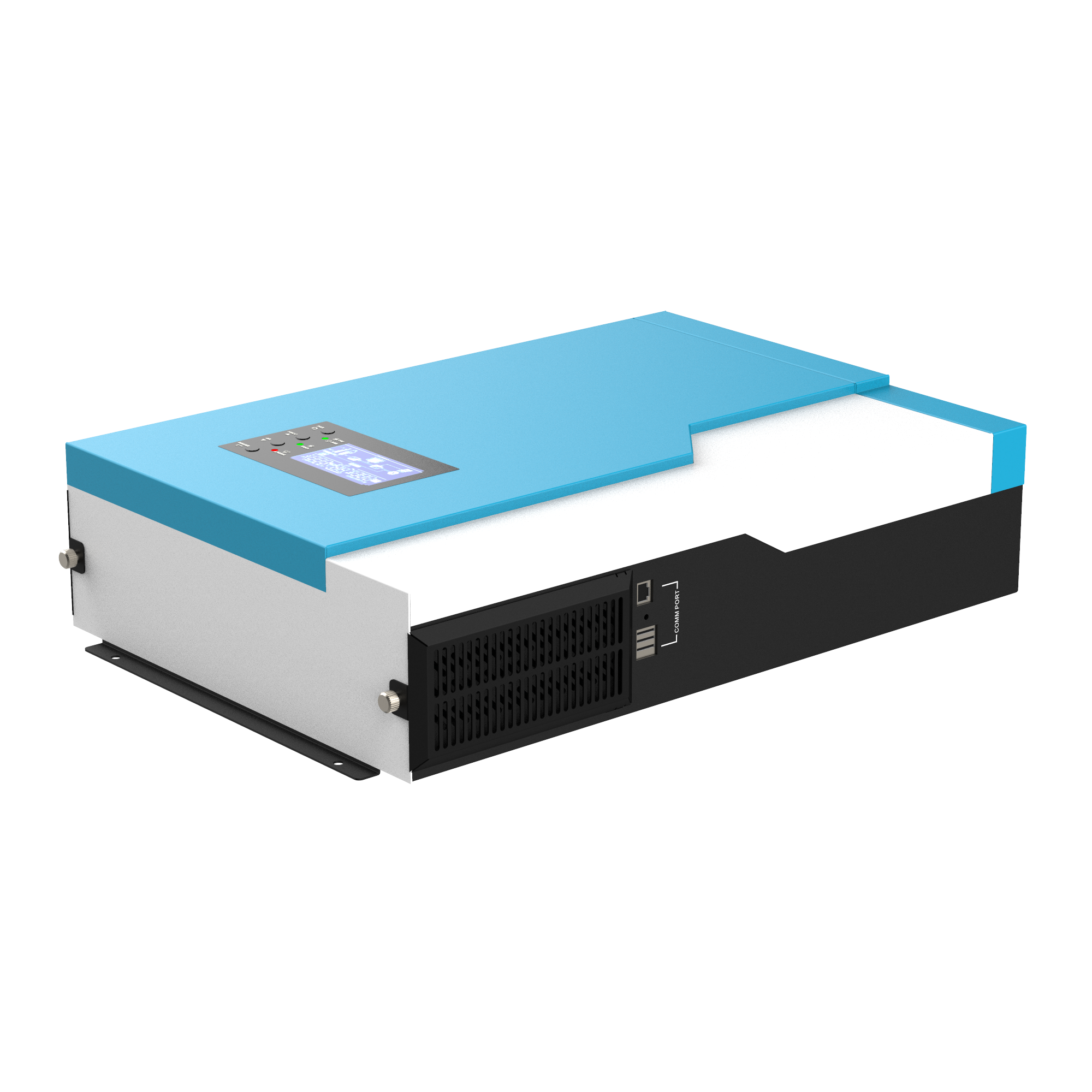

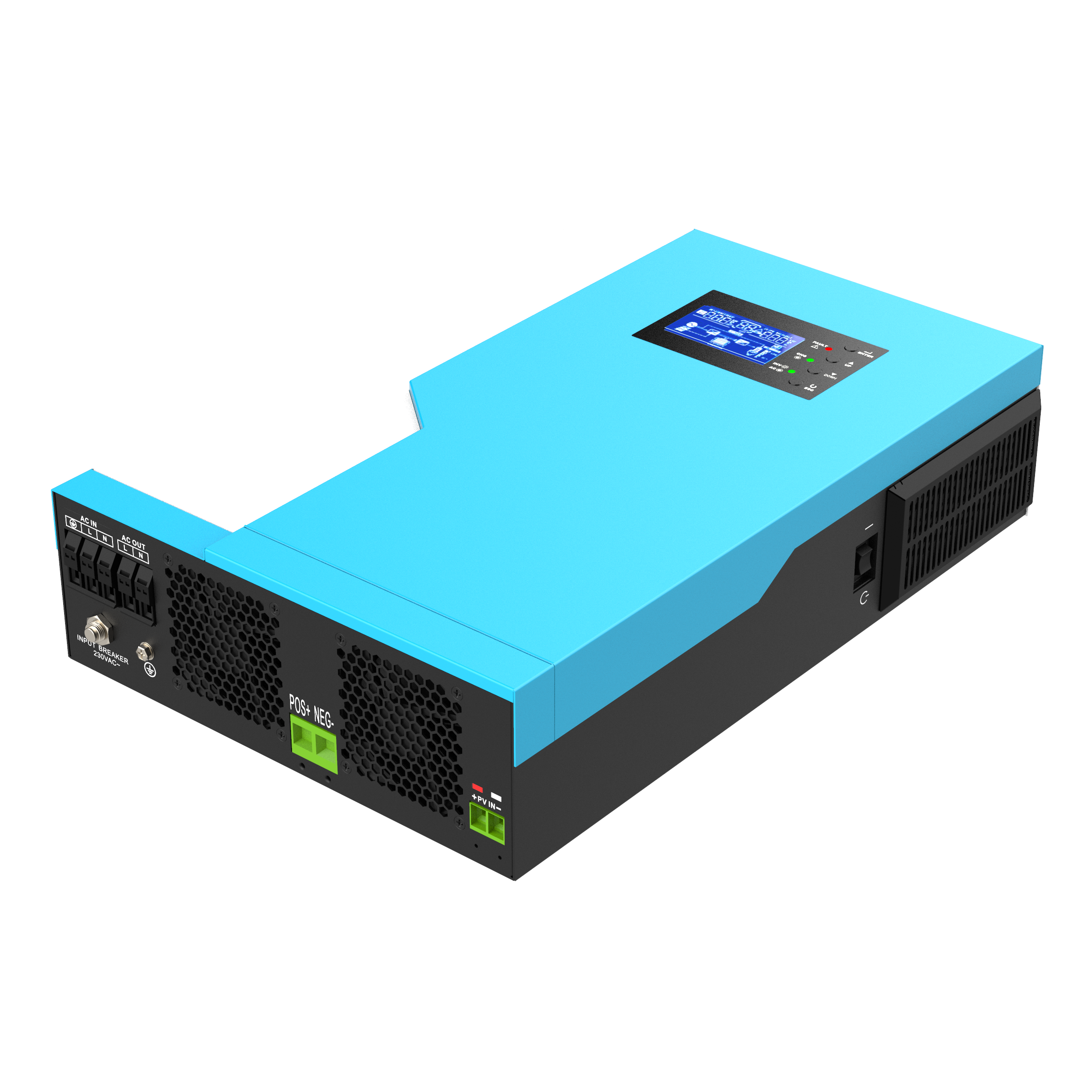

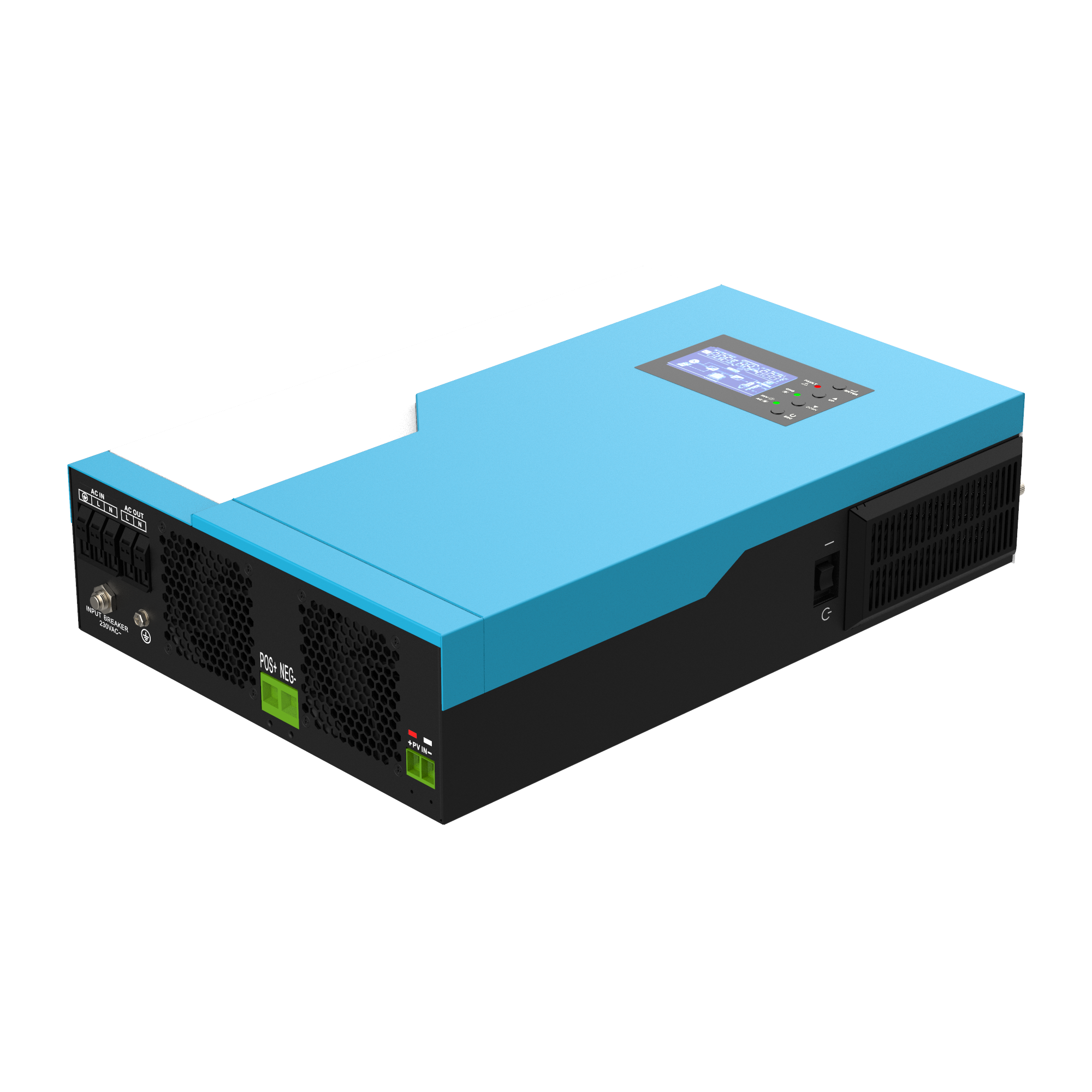

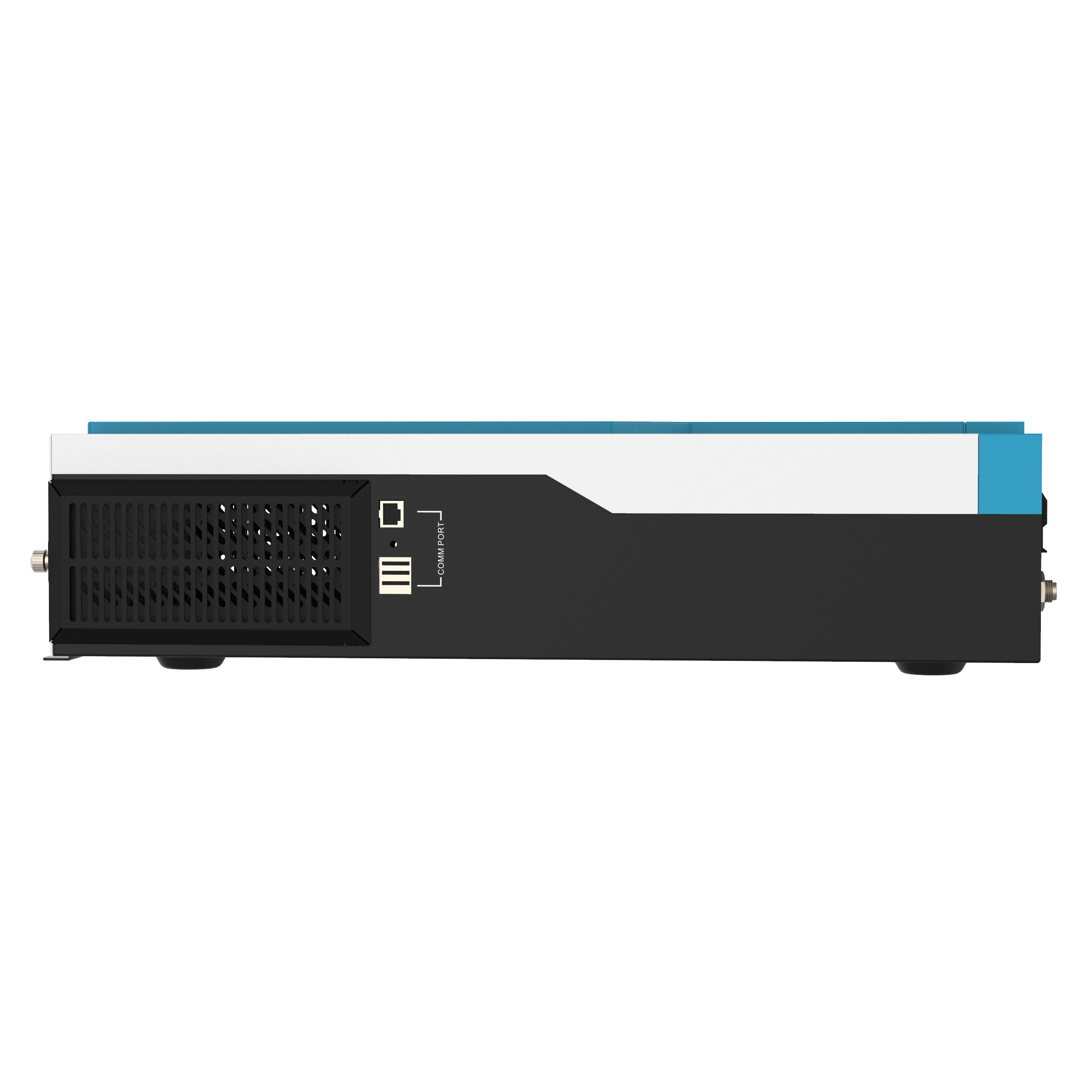

Off Grid Solar Inverter
Off Grid Solar Inverter
MPS-V Plus Series(3.5-5.5kW)
LCD display Connection Key Features
Features:
- Pure sine wave solar inverter
- Output power factor 1.0
- WIFI & GPRS available for IOS and android
- Inverter running without battery
- Buit-in 100A MPPT solar charger
- High PV input voltage range(120~500VDC)
- Buit-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life

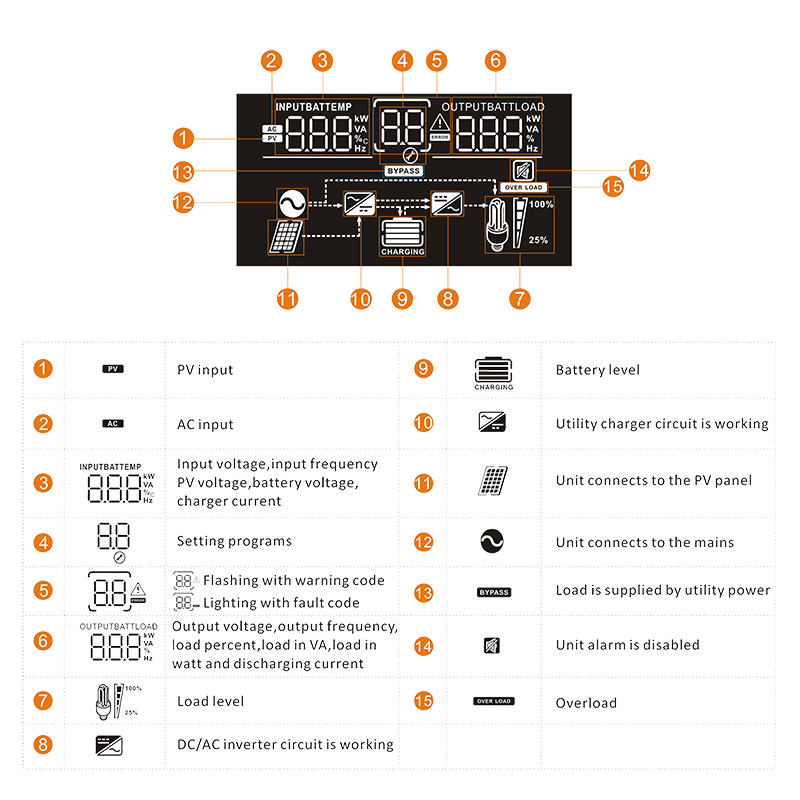

LCD display

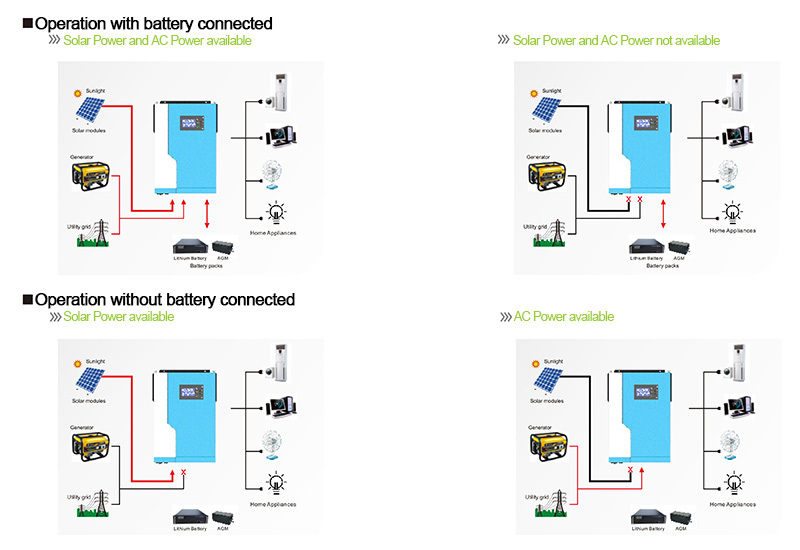

Connection
Key Features
| MODEL | MPS-V 3500W-PLUS | MPS-V 5500W-PLUS |
| Rated Power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency (Peak) PV to INV | 97% | |
| Efficiency (Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-450VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 100A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension. D*W*H(mm) | 440*300*100 | |
| Net Weight (kg) | 11kg | |
| Communication Interface | USB/RS232(Standard) GPRS/WIFI(Optional) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
