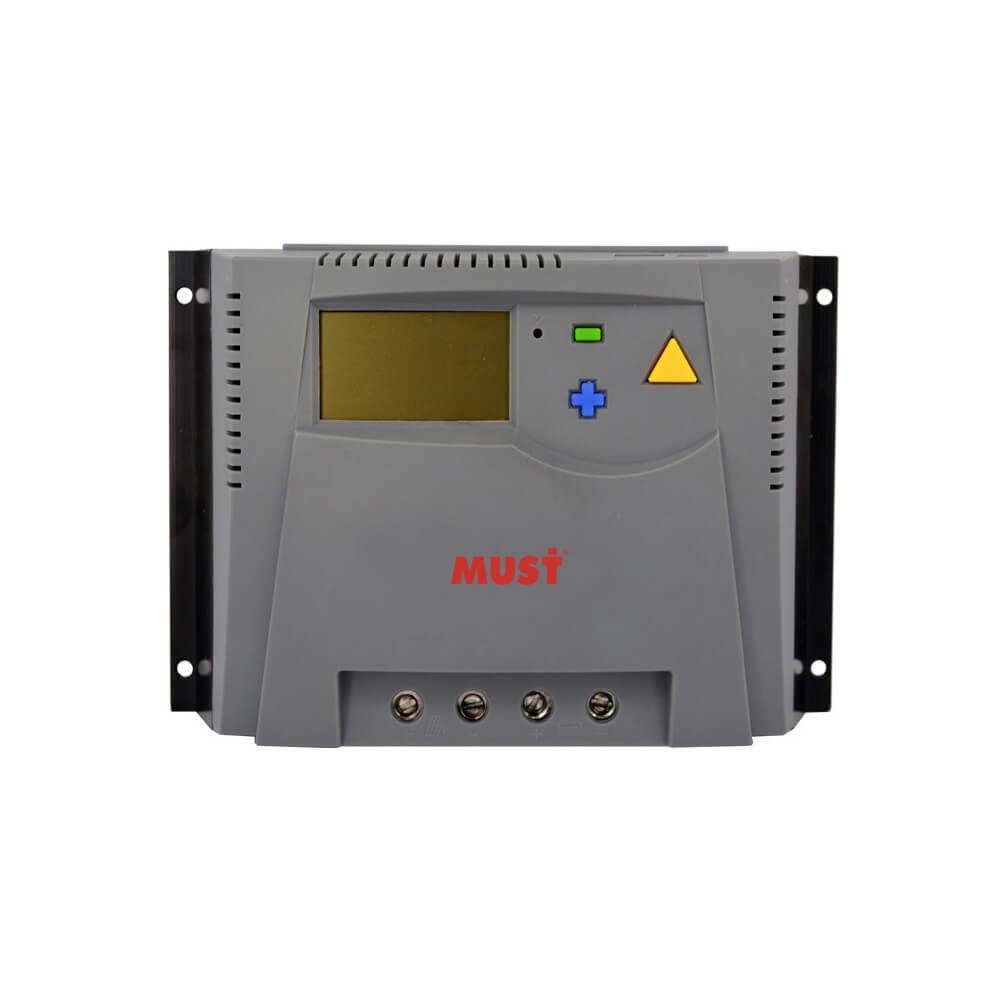

PC1500A SK Series PWM Solar Charge Controller (70-80A)

PC1500A series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. All parameter values can be set to meet various applications.

Features:

    Get Pricing/Info


    FEATURES



    10A 20A 30A 40A 50A 60A 80A SOLAR CHARGE CONTROLLER.





    MOST PARAMETERS DISPLAYED EXPLICITY.





    PWM CHARGING MODE WITH 4 STAGES(BULK, ABSORPTION, FLOAT AND EQUALIZED).





    ADAPTABLE TO SEALED, GEL, FLOODED AND OTHER CUSTOMIZED BATTERY TYPE.





    AUTO-DETECT BATTERY VOLTAGE OR MAINTAIN A FIXED VOLTAGE.





    ALL WORKING PARAMETERS CAN BE RESET, SAVED AND TRANSFERREDTO A COMPUTER OR OTHER TERMINAL EQUIPMENT.





    BESIDES REGULAR INPUT, OUTPUT AND BATTERY PROTECTION,PROTECTION OF OVER-CURRENT FROM SOLAR PANEL IS APPLIED.





    REMOTE COMMUNICATION.





    SELF-TIMING.





    ↓↓↓Installation Portfolio————

    MUSTENERGY

    Specification

    ModelPC1500A-70DPC1500A-80DPC1500A-7048DPC1500A-8048D
    SOLAR INPUT
    Input voltage≤50V≤100V
    Rated input current70A80A70A80A
    Charge loop voltage drop≤0.19V≤0.30V
    BATTERY
    System voltage12V / 24V Auto48V
    No load loss≤13mA≤16mA
    Battery typeSealed, GEL, Flooded, User customized
    Charging mode4 stage ( Bulk, Absorption, Float, Equalized ), PWM
    Float charge voltage13.8V ( 13V ~ 15V ) x 1/ x 2/ x4
    Absorption charge voltage14.4V ( 13V ~ 15V ) x 1/ x 2/ x4
    Equalized charge voltage15.1V ( 13V ~ 15.5V ) x 1/ x 2/ x4
    Temperature compensation-4mV / Cell / °C
    RELATED
    Max wire size25mm² ( AWG 3# )
    Working temperature-20°C~55°C
    Working humidity10% ~ 90%, no condensation
    Dimension ( L x W x H )220mm x 153mm x 77mm
    Net weight1350g
