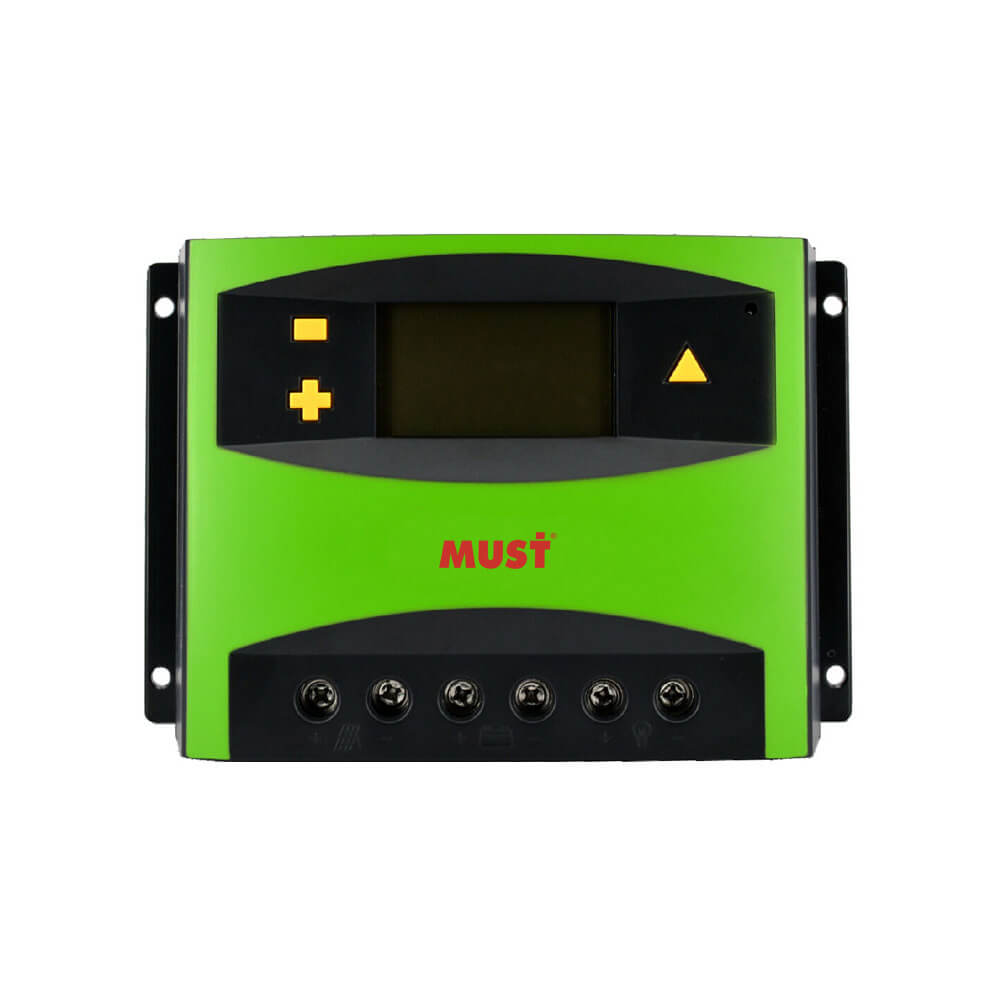

PC1500B TK Series PWM Solar Charge Controller (10-60A)

This intelligent,multi-purpose solar charge and discharge controller has a very friendly interface of fixed LCD display. Various control parameters can be flexibly set, fully meet your various application requirements.

Features:

    Get Pricing/Info


    FEATURES



    10A 20A 30A 50A 60A SOLAR CHARGE CONTROLLER.





    VIVID LCD GRAPHIC SYMBOLS.





    SIMPLE BUTTON OPERATION.





    AUTOMATIC IDENTIFICATION OF SYSTEM VOLTAGE LEVEL.





    INTELLIGENT PWM CHARGING MODE.





    ADJUSTABLE CHARGE-DISCHARGE PROTECTION.





    AUTOMATIC TEMPERATURE COMPENSATION.





    SETTABLE OPERATION MODE OF LOAD.





    BATTERY REVERSE-DISCHARGE PROTECTION.





    BATTERY LOW VOLTAGE DISCONNECTION(LVD).





    BATTERY REVERSE CONNECTION PROTECTION.





    OVER CURRENT PROTECTION.





    USB OUTPUT.





    ↓↓↓Installation Portfolio————

    MUSTENERGY

    Specification

    ModelPC1500B-50DPC1500B-60DUPC1500B-5048DPC1500B-6048D
    INPUT
    PV voltage≤50V≤100V
    Rated current40A50A60A40A50A60A
    OUTPUT
    System voltage12/24V Auto48V
    High voltage disconnection16.00V x 1/ x 2/ x 3/ x 4 ( 0.5V )
    Rated discharging current40A50A60A40A50A60A
    No load loss≤13mA≤25mA
    Charge loop voltage drop≤0.21V≤0.24V≤0.25V≤0.25V
    Discharge loop voltage drop≤0.12V≤0.10V≤0.12V≤0.10V
    Charging modePWM 4-stage bulk, absorption, float, equalized
    Float charging voltage13.8V (13V~15V ) x 1/ x 2/ x 3/ x 4
    Absorption charging voltageDuration 2 hours14.4V (13V~15V ) x 1/ x 2/ x 3/ x 4
    Equalized charging voltage14.6V (13V~15.5V ) x 1/ x 2/ x 3/ x 4
    Low voltage protection10.7V (10V~14V ) x 1/ x 2/ x 3/ x 4
    Low voltage reconnecting12.6V (10V~14V ) x 1/ x 2/ x 3/ x 4
    USB output5V, 1ANone
    OTHER
    Installing cables size≤6mm²≤16mm²≤6mm²≤16mm²
    Working temperature-20°C~55°C
    Dimention(L x W x H)188mm x 95mm x 46.5mm
    Net weight355g360g355g360g
