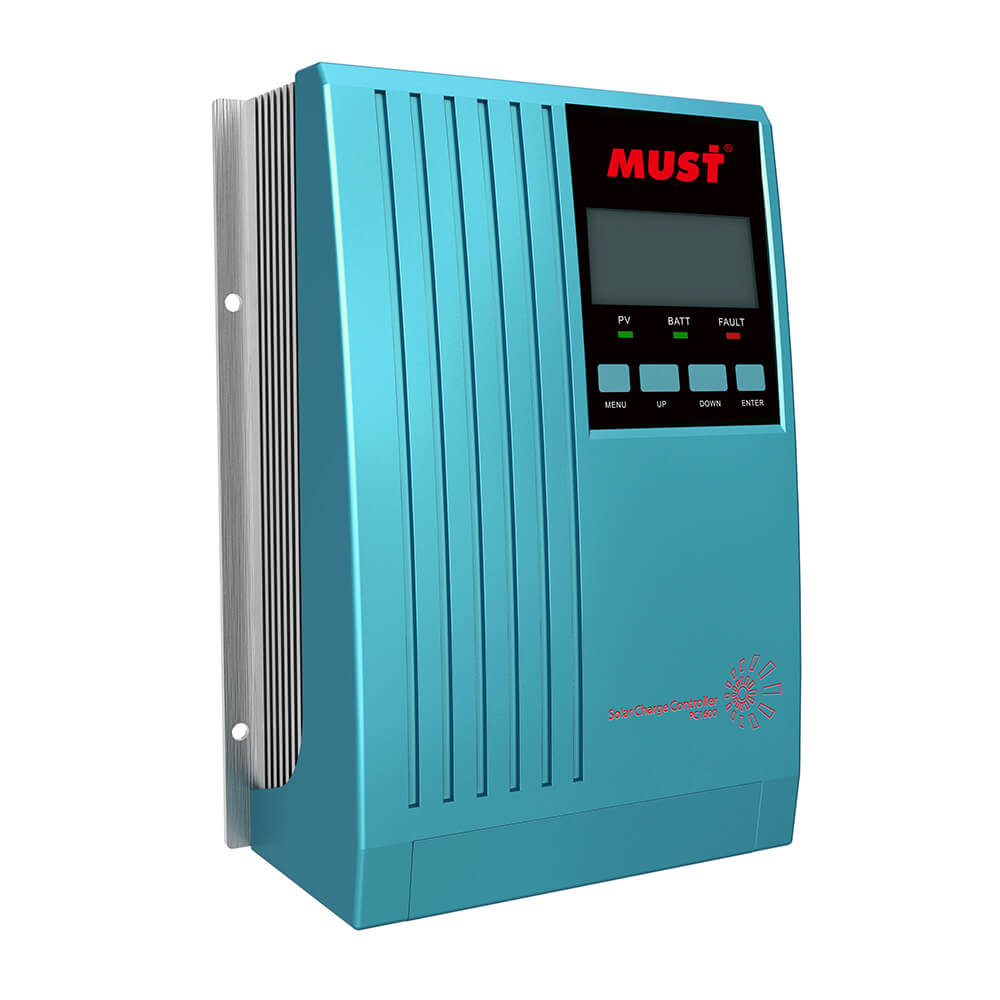

PC1600A Series MPPT Solar Charge Controller (20/30/40A)
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.
Features:
- LCD display , easy to operate on LCD screen
- Multi stage charging (3-stage charging , parallel charging and equalized charging function)
- BTS - Battery remote temperature sensor terminal
- Enable to charge Li-thium, Gel , lead-acid battery
- With RS485 & USB communication port
- Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit

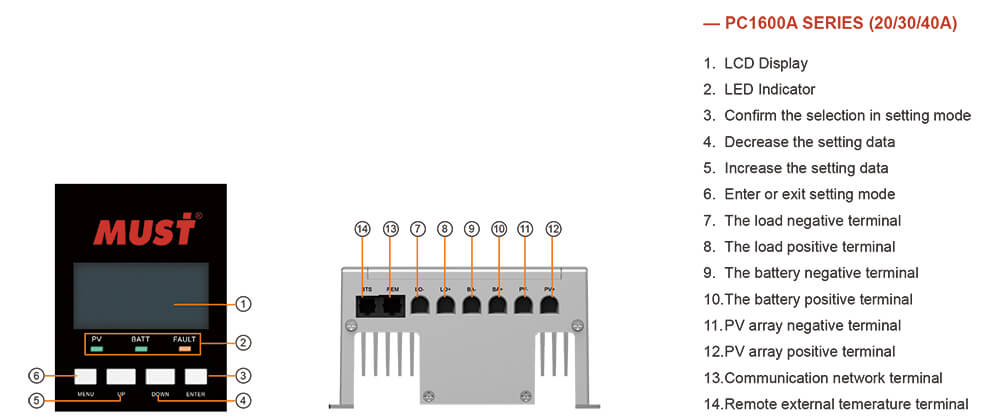

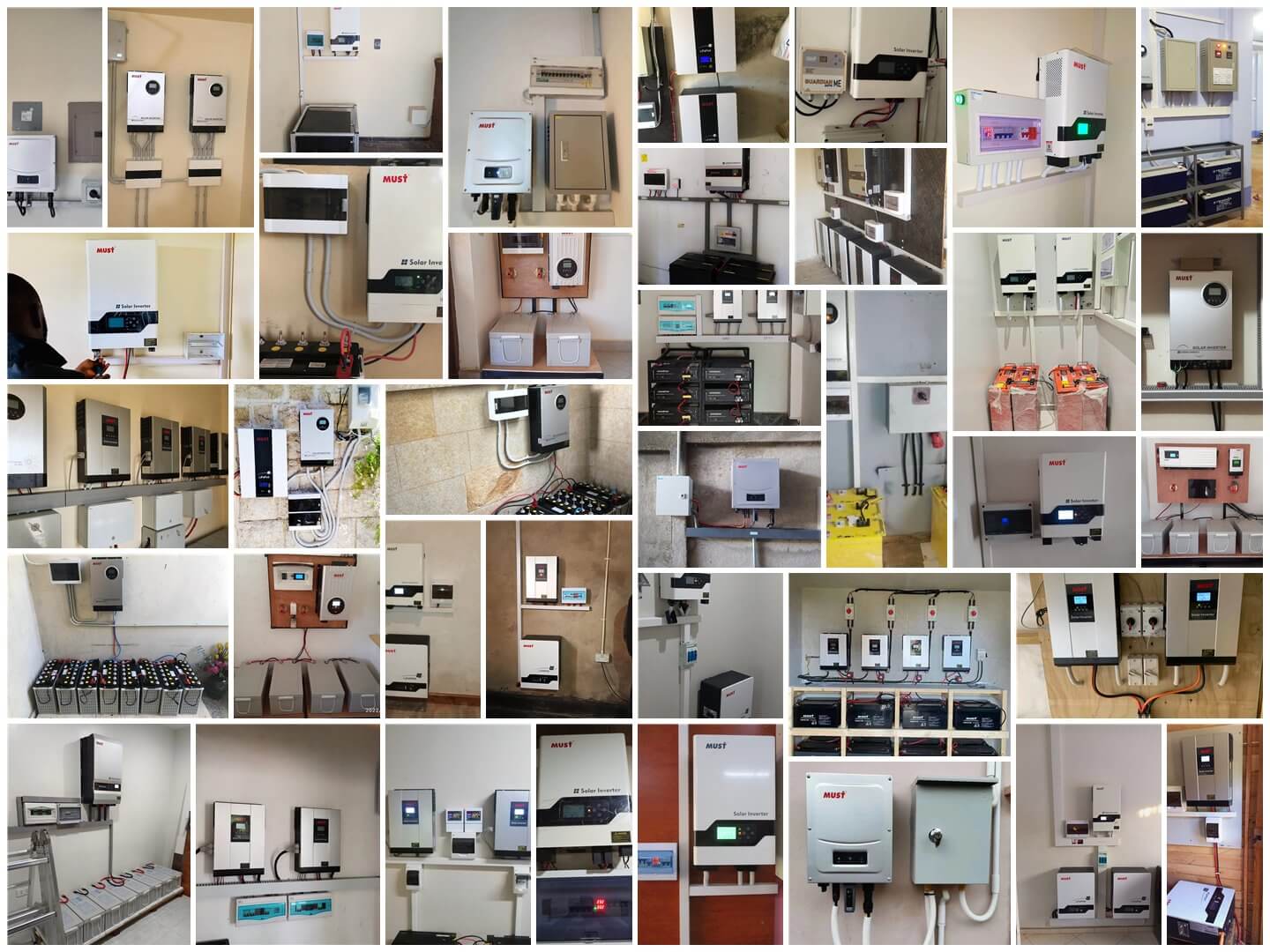

↓↓↓Installation Portfolio————
| MODEL | PC16-2015A | PC16-3015A | PC16-4015A |
|---|---|---|---|
| Nominal Battery System Voltage | 12VDC / 24VDC (Auto Detection) | ||
| CONTROLLER INPUT | |||
| PV Open Circuit Voltage | 100VDC@12V / 145VDC @24V | ||
| PV Array MPPT Voltage Range | 16VDC~100VDC@12VDC/32VDC~130VDC@24VDC | ||
| Max PV Input Power(12V) | 300W | 450W | 600W |
| Max PV Input Power(24V) | 600W | 900W | 1200W |
| BATTERY | |||
| Absorption Voltage | 12.5VDC / 25.0VDC | ||
| Refloat Voltage | 13.7VDC / 27.4VDC | ||
| Float Voltage | 14.3VDC / 28.6VDC | ||
| Low Voltage Protection Point | 10.0VDC / 20.0VDC | ||
| DC OUTPUT | |||
| Output Voltage | 10.0~14.5VDC / 20.0~29.0VDC | ||
| Peak Conversion Efficiency | 98%(MPPT Efficiency 99%) | ||
| Max Charging Current | 20 amps continuous | 30 amps continuous | 40 amps continuous |
| Max Output Current | 20 amps continuous | 20 amps continuous | 20 amps continuous |
| Low Voltage alarm | 10.25VDC / 20.5VDC | ||
| Low Voltage cut off | 10.0VDC / 20.0 VDC | ||
| Low Voltage Recovery | 11.0VDC / 22.0VDC | ||
| GENERAL SPRCIFICATION | |||
| Radiating Mode | Automatic cooling | ||
| DISPLAY PROTECTION | |||
| LED Indication | Systematic operation, LV indication, LV protection, Over charge protection Loads protection, Short circuit protection | ||
| LED Display | Charge Voltage, Charge Current, Voltage of storage battery, Capacity of storage battery, Output current | ||
| Alarm Protections | PV array short circuit, PV reverse polarity | ||
| Battery reverse polarity, Over charging protrction | |||
| Output short circuit protection | |||
| Low voltage protection for storage battery | |||
| MECHANICAL SPECIFICATIONS | |||
| Mounting | Wall mount | ||
| Machine Dimension (W*H*D)(mm) | 154*236*88mm (color box / pcs) | ||
| Gross Wight (kg)(per pcs) | 2.2kg | 2.65kg | 2.65kg |
| Package Dimension (W*H*D)(mm) | 610*308*230mm (4pcs / Carton) | ||
| Gross Weight (kg)(per carton) | 10.8kg | 13.4kg | 13.4kg |
| OTHER | |||
| Environmental Rating | Indoor | ||
| Operation Temperature Range | 0℃ ~ 55℃ | ||
| Loading (20GP/40GP/40HQ) | 2500pcs / 5000pcs / 5800pcs | ||
