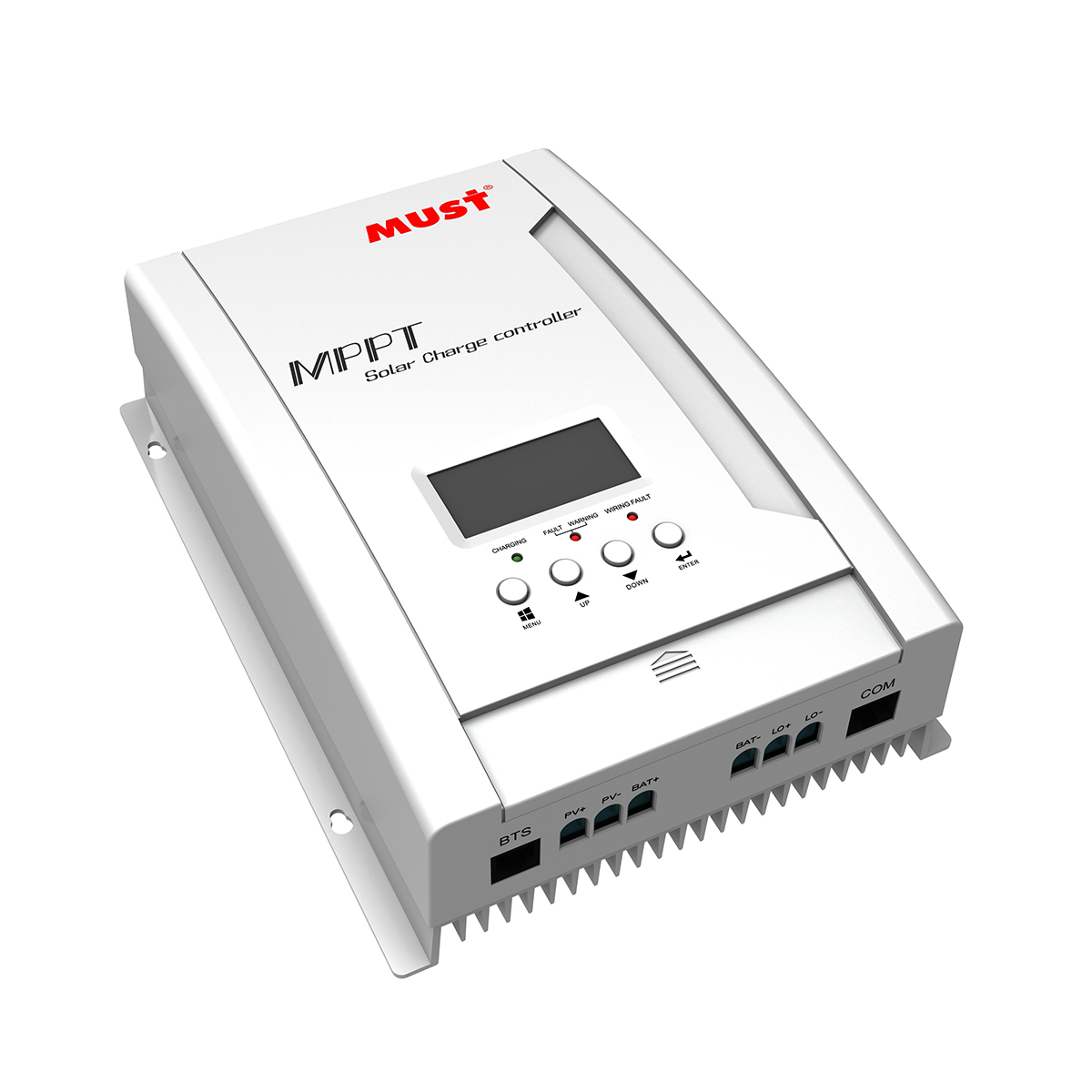

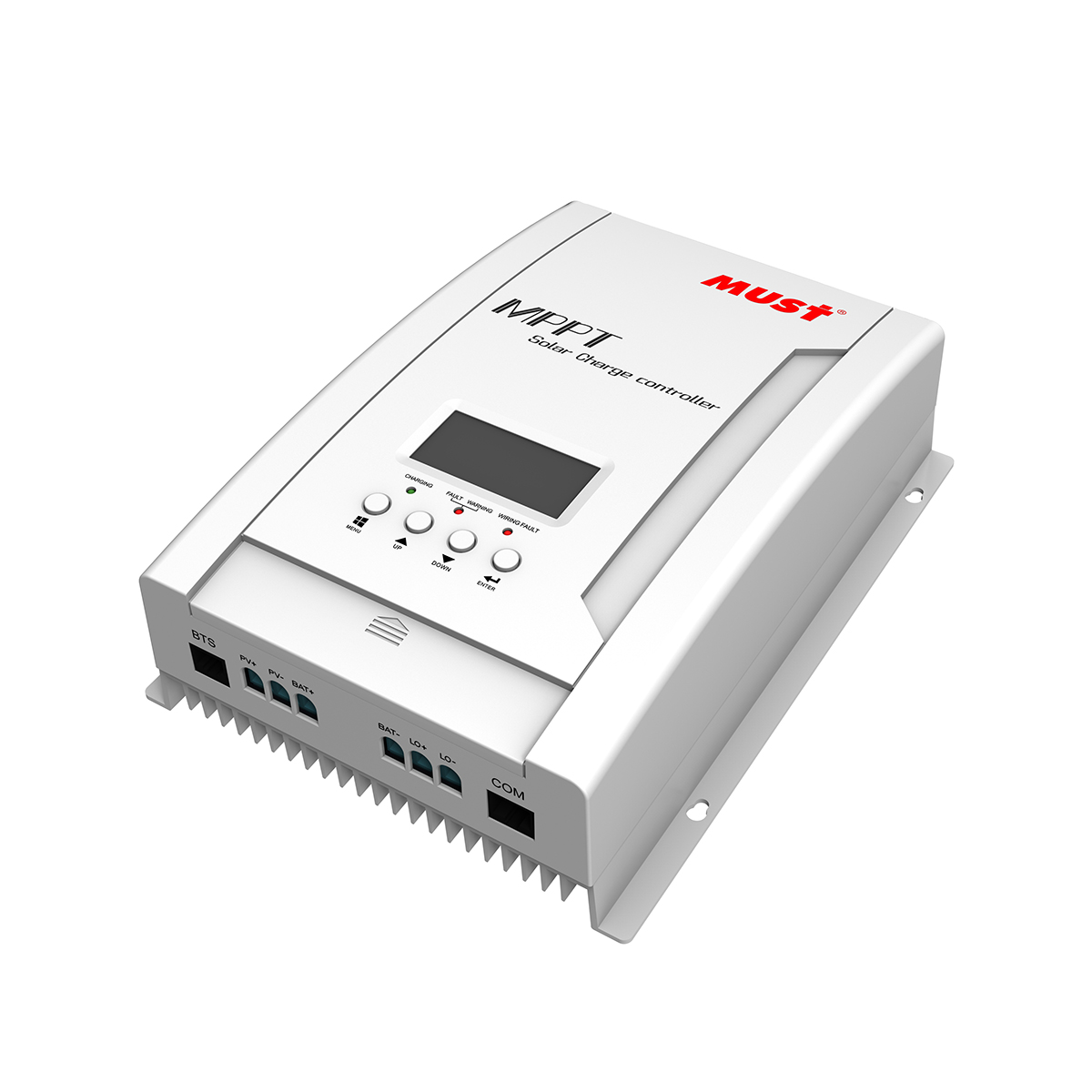

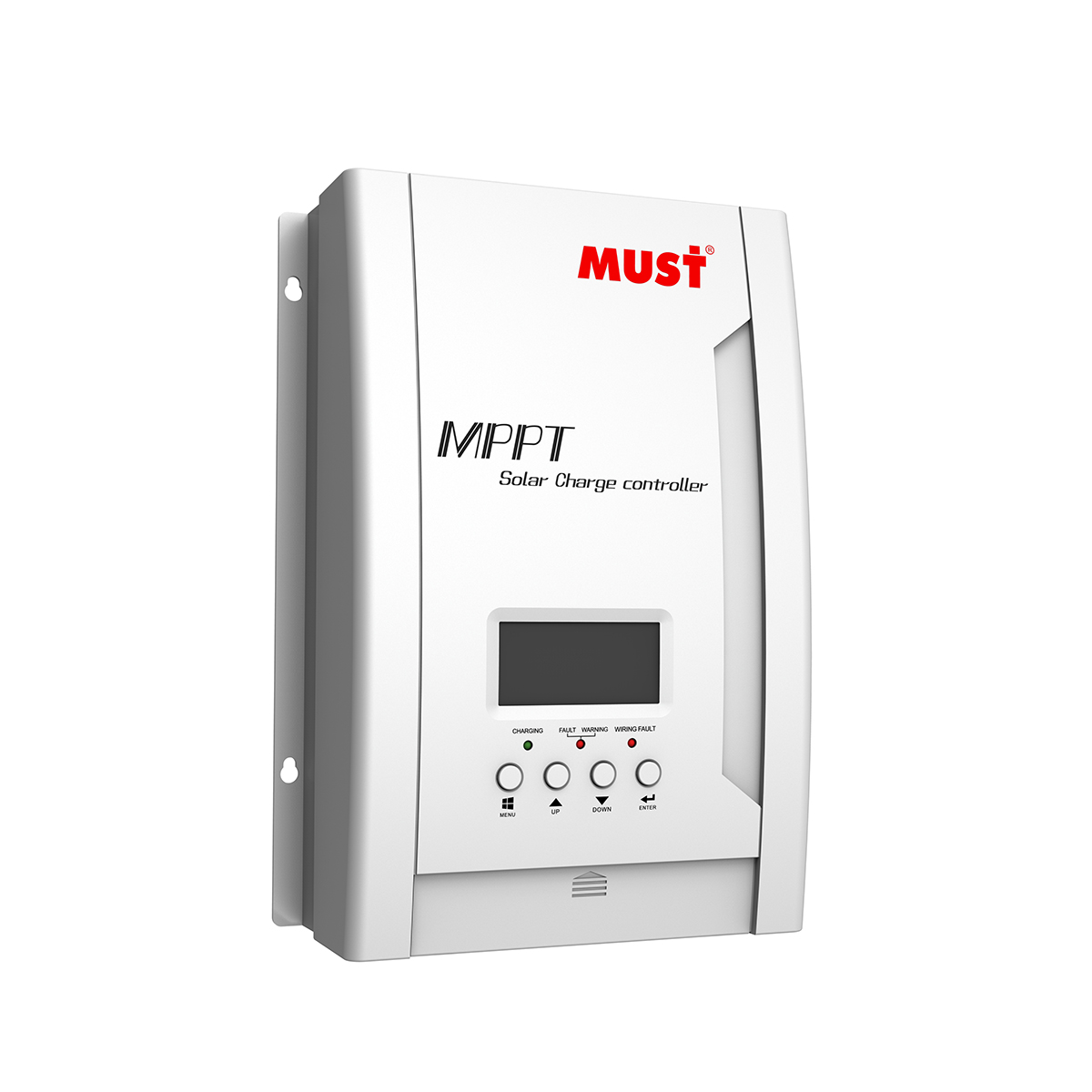

PC1800A Series MPPT Solar Charge Controller (30/40A)
This solar charge controller is an advanced solar charger with maximum power point tracking. Applying intelligent MPPT algorithm, it allows solar charge controller to extract maximum power from solar arrays by finding the maximum power point of the array.The MPPT battery charging process has been optimized for long battery life and improved system performance. Self-diagnostics and electronic error protections prevent damage when installation errors or system faults occur.
Features:
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Compatible for PV systems in 12V,or24V
- Three-stage charging optizes battery performance
- Maximum charging current up to 30A/40A
- Advanced MPPT technology,with efficienQf no less than 99%
- Maximum DC- DC conversion efficiency of 98%
- Battery temperature sensor(BTS) automatically provides temperature compensation Automatic battery voltage detection
- Integrated intelligent slot compatible with 485 communication

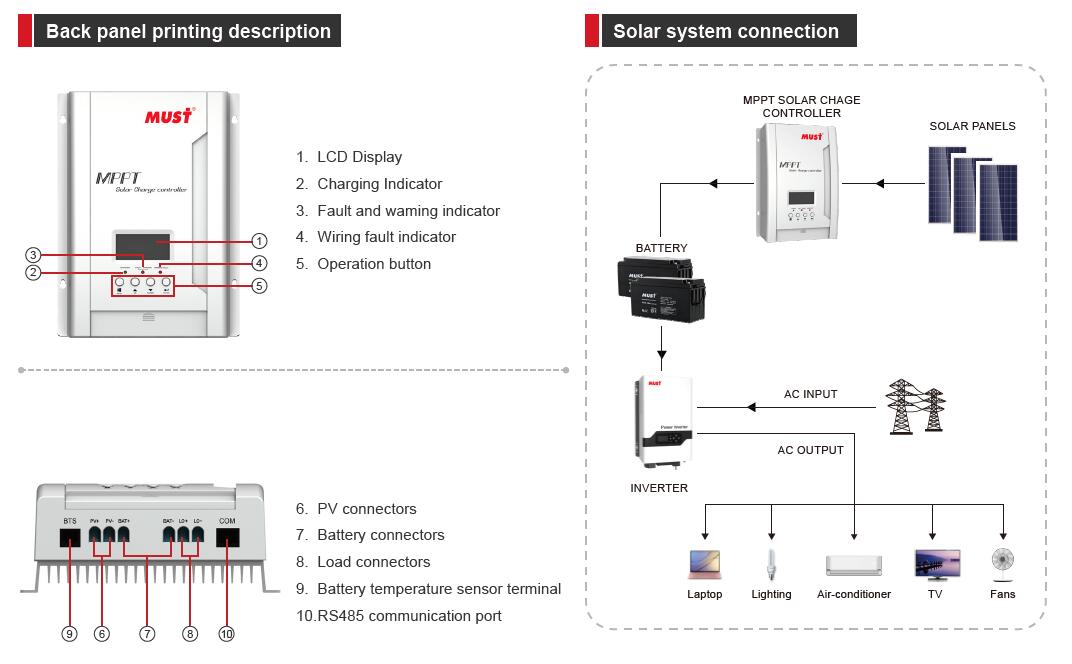

↓↓↓Installation Portfolio————
MODELPC18-3015APC18-4015ANominal Battery System Voltage12V / 24V (Auto detection)CONTROLLER INPUTBattery Voltage12V24VMaximum Solar Input Voltage150VPV Array MPPT Voltage Range≤145VMaximum Input Power12 Volt-432W
24 Volt-864W12 Volt-576W
24 Volt-1152WBATTERYCharging Set PointsAbsorption, FloatFlooded Battery14.2V/28.4V13.7V/27.4VAGM/GEL/LEAD (Default)14.4V/28.8V13.7V/27.4VOver-charging Voltage15.5V / 30.0VOver-charging Comeback Voltage14.5V / 29.5VBattery Defect Voltage10.0V / 17.0VTemperature Compensation Conefficient-5mv / ℃ /cell (25℃ vef)Peak Conversion Efficiency98% (MPPT Efficiency 99%)Maximum Battery Current30A40AMax Charging Current30amps continuous @ 40℃ ambient40amps continuous @ 40℃ ambientDISPLAY & PROTECTIONProtectionsSolar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnectMECHANICAL SPECIFICATIONSMountingWall mountMachine Dimension (W*H*D)(mm)187*255*72 (per pcs)G.W (kg)2.65OTHEREnvironmental RatingIndoorEnclosureIP30Operation Temperature Range-10~50℃Ambient Humidity0~90% relative humidity (non-condensing)Altiude≤3000m
