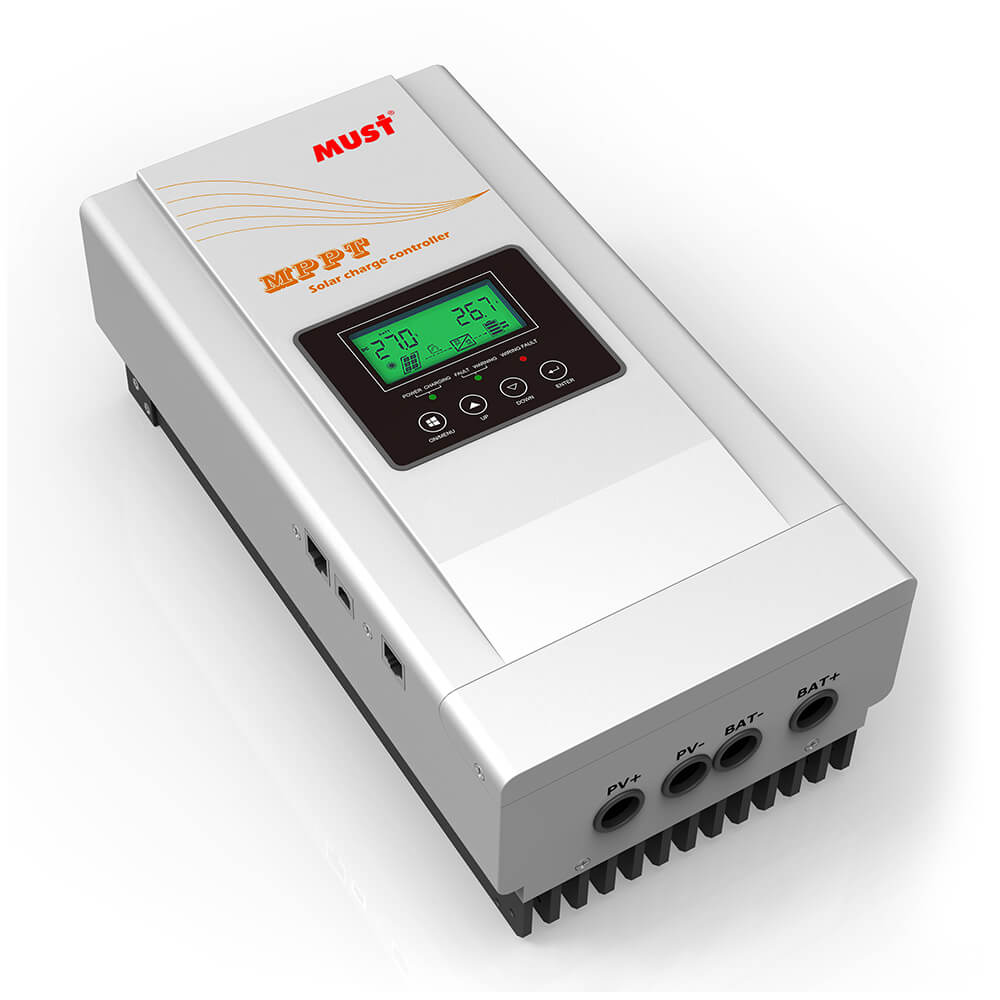

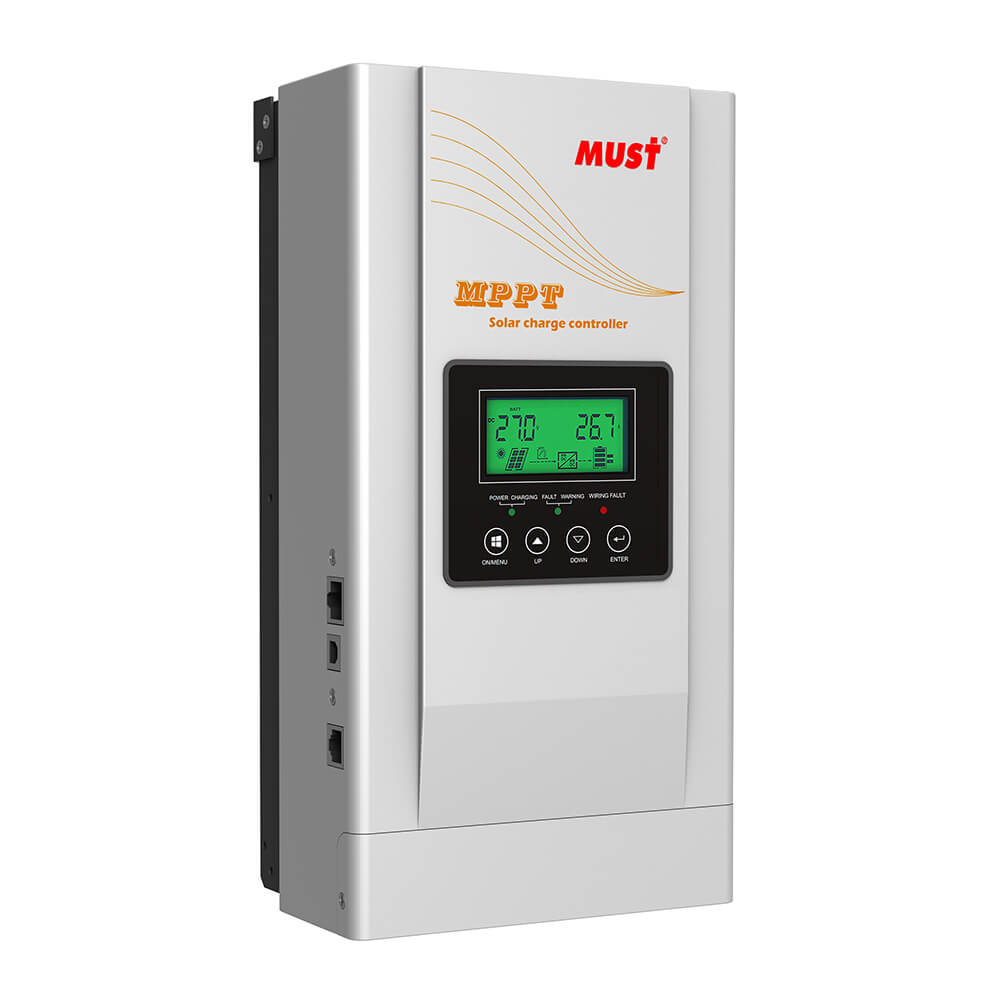

PC1800A Series MPPT Solar Charge Controller (60/80A)
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.

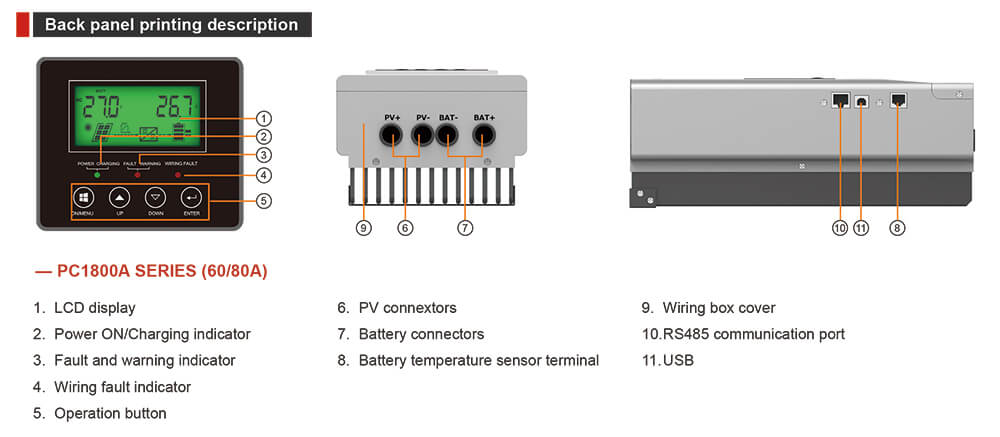

Features:
- LCD display , easy to operate on LCD screen
- Multi stage charging (3-stage charging , parallel charging and equalized charging function)
- BTS - Battery remote temperature sensor terminal
- Enable to charge Li-thium, Gel , lead-acid battery
- With RS485 & USB communication port
- Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit
↓↓↓Installation Portfolio————
| MODEL | PC18-6015A | PC18-8015A | ||
|---|---|---|---|---|
| Nominal Battery System Voltage | 12V / 24V / 48VDC (Auto detection); 36V (Setting) | |||
| ELECTRICAL SPECIFICATIONS | ||||
| Maximum Battery Current | 60Amps | 80Amps | ||
| Battery Voltage | 12V | 24V | 36V | 48V |
| Maximum Solar Input Voltage | 100V | 145V | ||
| PV Array MPPT Voltage Range | 15~95V | 30~130V | 45~130V | 60~130V |
| Maximum Input Power | 12 Volt-940W 24 Volt-1880W 36 Volt-2820W 48 Volt-3760W | 12 Volt-1250W 24 Volt-2500W 36 Volt-3750W 48 Volt-5000W | ||
| Protections | Solar high voltage disconnect; Solar high voltage reconnect; Battery high voltage disconnect; Battery high voltage reconnect; High temperature disconnect;High temperature reconnect | |||
| BATTERY CHARGING | ||||
| Charging Algorithm | 3-Step or 4-Step (Li) | |||
| Temperature Compensation Coefficient | -5mV / ℃ / cell (25℃ ref.) | |||
| Temperature Compensation Set Points | Absorption, Float | |||
| Charging Set Points | Absorption Stage | Float Stage | ||
| Flooded Battery | 14.2V / 28.4V / 42.6V / 56.8V | 13.7V / 27.4V / 41.1V / 54.8V | ||
| AGM / GEL / LEAD Battery (Default) | 14.4V / 28.8V / 43.2V / 57.6V | 13.7V / 27.4V / 41.1V / 54.8V | ||
| Over-charging Voltage | 15.5V / 30.0V / 45.0V / 60.0V | |||
| Over-charging Comeback Voltage | 14.5V / 29.5V / 44.5V / 59.0V | |||
| Battery Defect Voltage | 10.0V / 17.0V / 25.5V / 34.0V | |||
| MECHANICAL AND ENVIRONMENT | ||||
| Product Size (W*H*D)(mm) | 315*160*135 | |||
| Product Weight (kg) | 4.7kg | |||
| Ambient Temperature Range | -10℃ to 55℃ | |||
| Storage Temperature | -40℃ to 75℃ | |||
| Humidity | 0%~90% RH (No condensing) | |||
| Enclosure | IP20 | |||
