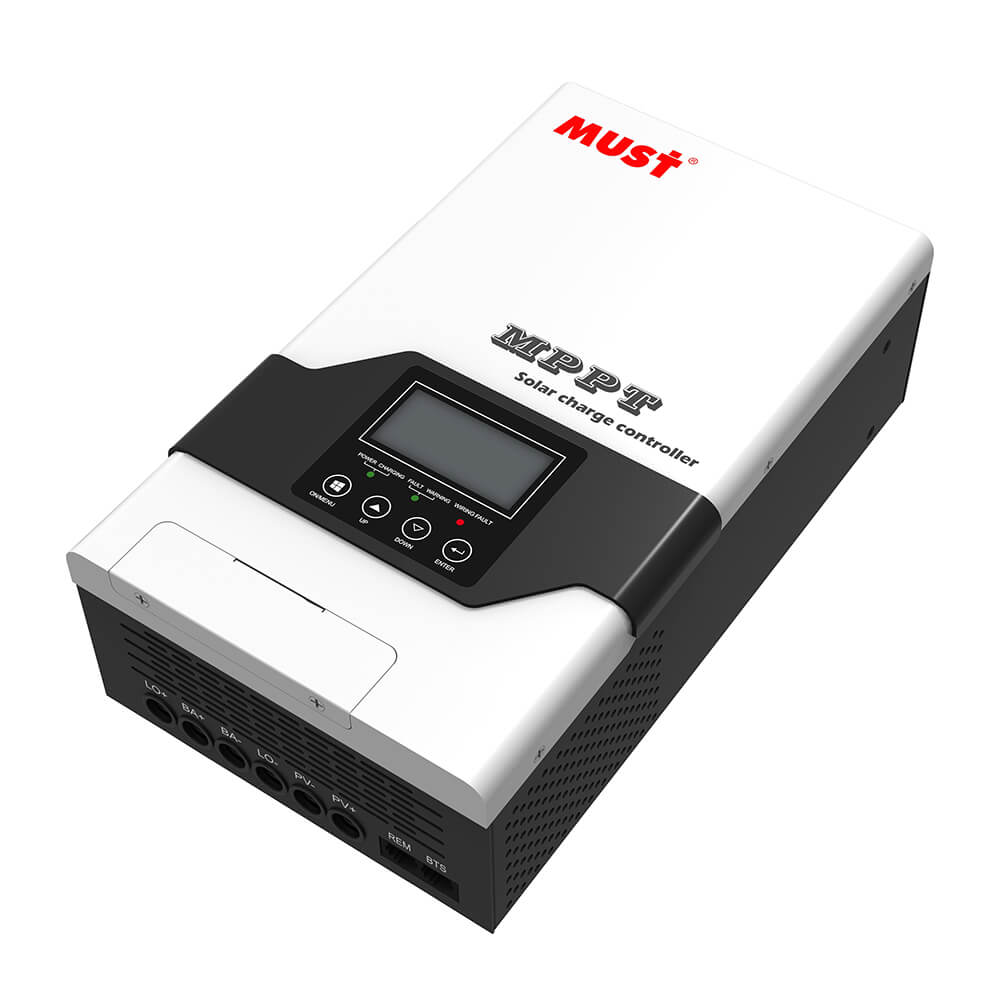

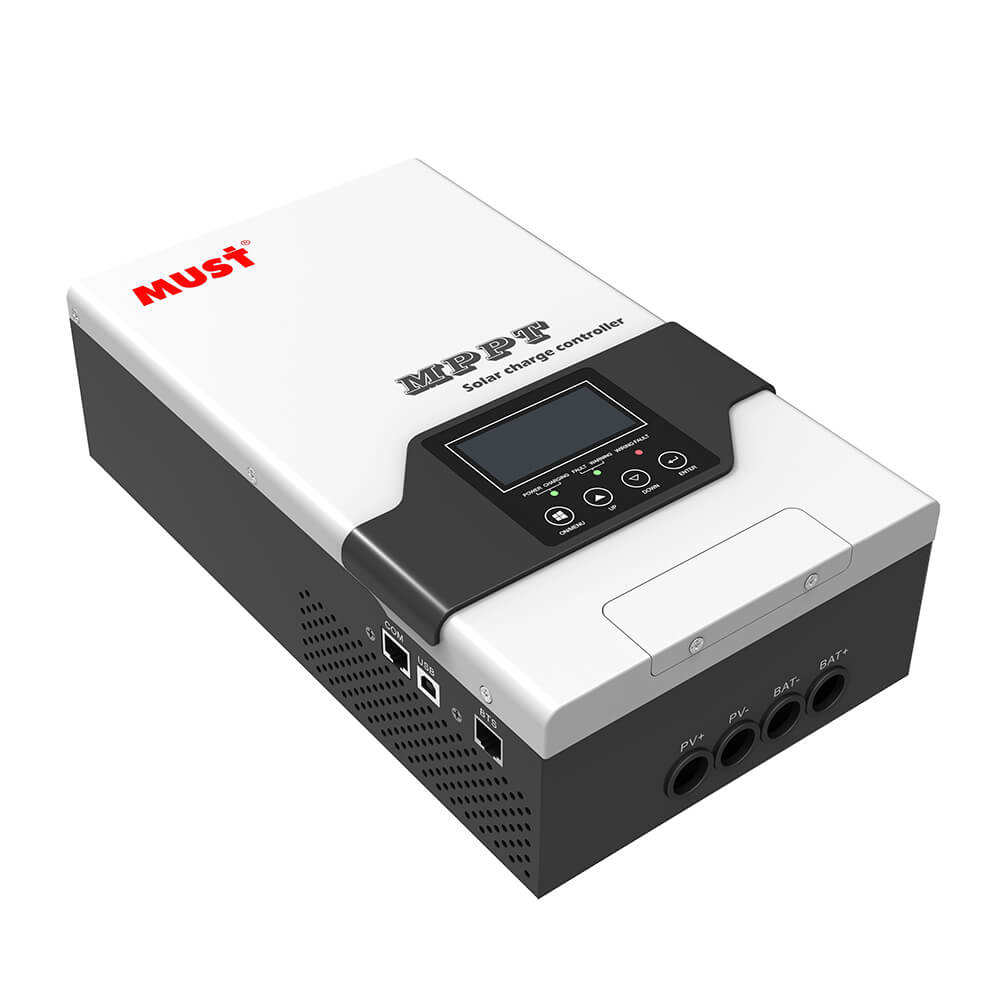

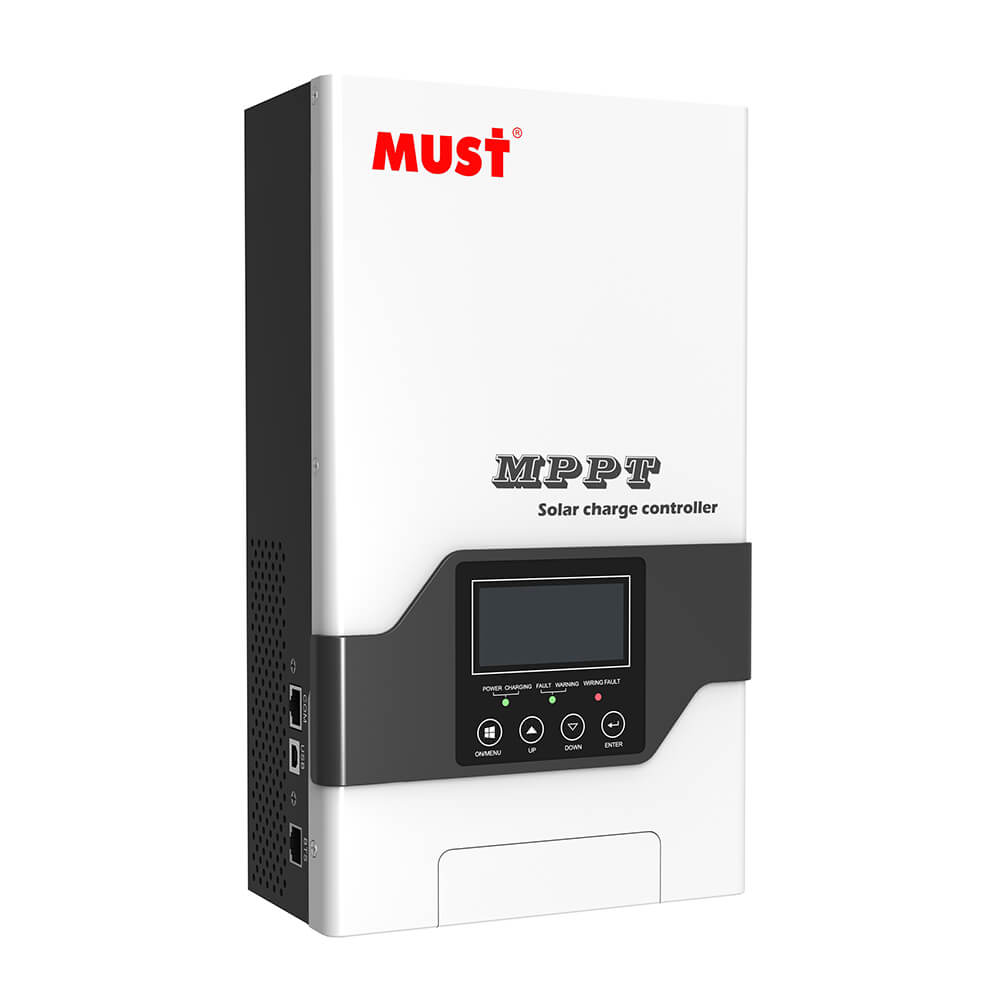

PC1800F Series MPPT Solar Charge Controller (60/80/100A)
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.
Features:
- LCD display , easy to operate on LCD screen
- Multi stage charging (3-stage charging , parallel charging and equalized charging function)
- BTS - Battery remote temperature sensor terminal
- Enable to charge Li-thium, Gel , lead-acid battery
- With RS485 & USB communication port
- Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit

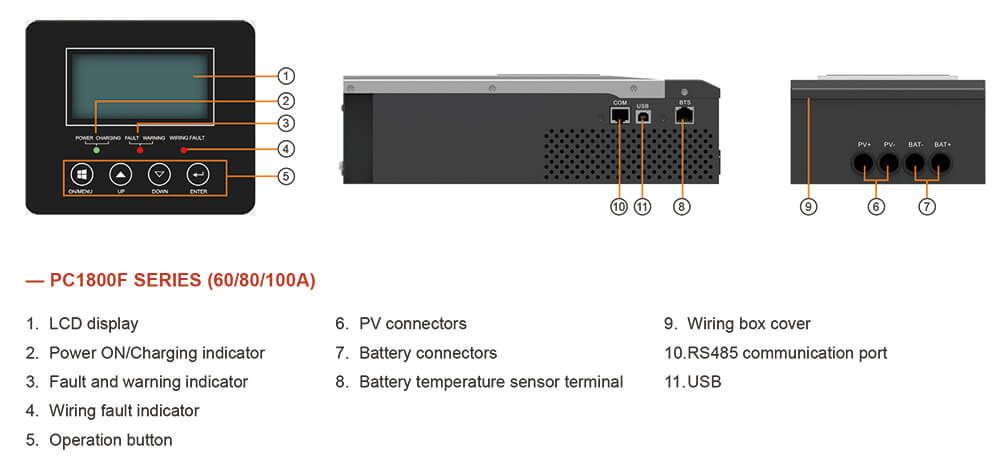

↓↓↓Installation Portfolio————
| MODEL | PC18-6015F | PC18-8015F | PC18-10015F |
|---|---|---|---|
| Nominal Battery System Voltage | 12 / 24 / 36 / 48VDC (Auto detection) | ||
| CONTROLLER INPUT | |||
| Maximum Solar Input Voltage | 200VDC@12VDC 245VDC@24VDC 245VDC@36VDC 245VDC@48VDC | ||
| PV Array MPPT Voltage Range | 15VDC~200VDC@12VDC 30VDC~200VDC@24VDC 45VDC~200VDC@36VDC 60VDC~200VDC@48VDC | ||
| Maximum Input Power | 12 Volt-940W 24 Volt-1880W 36 Volt-2820W 48 Volt-3760W | 12 Volt-1250W 24 Volt-2500W 36 Volt-3750W 48 Volt-5000W | 12 Volt-1560W 24 Volt-3120W 36 Volt-4680W 48 Volt-6250W |
| BATTERY | |||
| Absorption Stage | FLD:14.2/28.4/42.6/56.8 AGM/GEL/LEAD:14.4/28.8/43.2/57.6 | ||
| Float Stage | FLD:13.7/27.4/41.1/54.8 AGM/GEL/LEAD::13.7/27.4/41.1/54.8 | ||
| Over-charging Voltage | 15.5V / 30.0V / 45.0V / 60.0V | ||
| Over-charging Comeback Voltage | 14.5V / 29.5V / 44.5V / 59.0V | ||
| Battery Defect Voltage | 10.0V / 17.0V / 25.5V / 34.0V | ||
| Temperature Compensation Conefficient | -5mv / ℃ /cell (25℃ vef) | ||
| Peak Conversion Efficiency | 98% (MPPT Efficiency 99%) | ||
| Mximum Battery Current | 60Amps | 80Amps | 100Amps |
| Max Charging Current | 60amps continuous @ 40℃ ambient | 80amps continuous @ 40℃ ambient | 100amps continuous @ 40℃ ambient |
| GENERAL SPECIFICATION | |||
| Radiating Mode | Fan cooling | ||
| DISPLAY & PROTECTION | |||
| Protections | Solar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnect | ||
| MECHANICAL SPECIFICATIONS | |||
| Mounting | Wall mount | ||
| Machine Dimension (W*H*D)(mm) | 152*85*294 (per pcs) | ||
| G.W (kg) | 3kg/pcs | ||
| Package Dimension (W*H*D)(mm) | 625*366*232 (4pcs / Carton) | ||
| Gross Weight (kg) | 14kg | ||
| OTHER | |||
| Environmental Rating | Indoor | ||
| Operation Temperature Range | -10~55℃ | ||
| Ambient Humidity | 0~90% relative humidity (non-condensing) | ||
| Altiude | ≤3000m | ||
