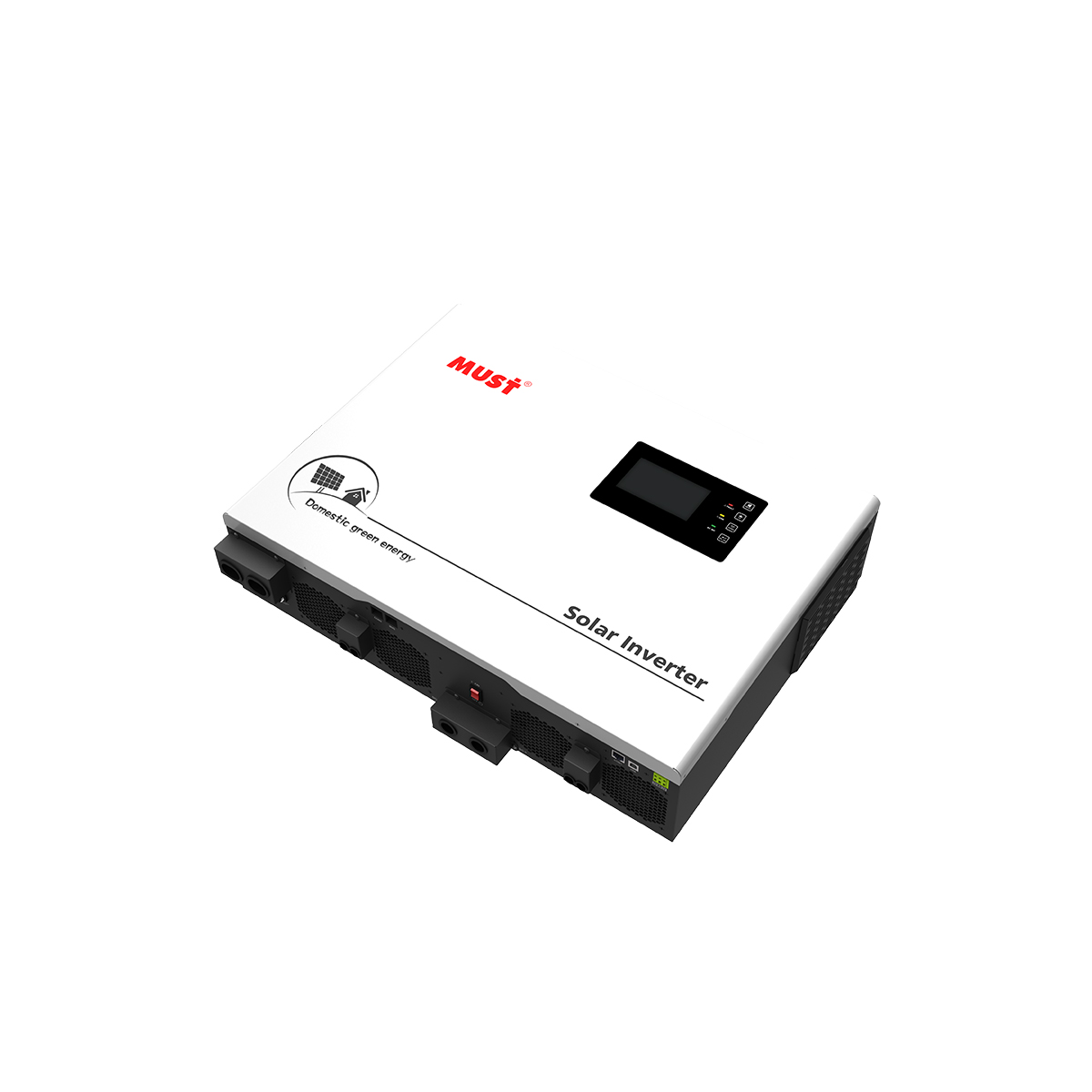

PH1800 PRO Series High Frequency Hybrid Solar Inverter (8-10KW)

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

Pure sine wave inverter
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Wifi remote monitoring (optional)

Get Pricing/Info

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL	PH18-8048 PRO	PH18-10048 PRO
Nominal Battery System Voltage	48VDC
INVERTER OUTPUT
Rated Power	8000W	10000W
Surge Power	16000W	20000W
Waveform	Pure Sine Wave
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Output Frequency	60Hz or 50Hz
Inverter Efficiency(Peak)	90%
Transfer Time	10ms (UPS) 20ms (APL)
AC INPUT
Nominal Input Voltage	230VAC
Max AC Input Voltage	300VAC
Selectable Voltage Range	170~280VAC (UPS) / 90~280VAC (APL) / 184~253VAC(VDE4105)
Frequency Range	50Hz / 60Hz(Auto detection)
SOLAR CHARGER & AC CHARGER
AC Charging Current	2-120A	2-160A
Maximum PV Array Open Circuit Voltage	450VDC
PV Array Open Circuit Voltage	150-430VDC
Cold Start Voltage	46VDC
Solar Charging Current	80A/80A	100A/100A
Default Charging Current	80A/80A
Maximum Charge Current	160A	200A
Charging Algorithm	3-step (Flooded Battery / AGM / GEL/ LEAD Battery), 4-step(LI)
MECHANICAL SPECIFICATIONS
Machine Dimension (WHD)	600503141.2mm
G.W (kg)	21kg
OTHER
Safety Certification	CE
Operating Temperature	-10°C~50°C
Storage Temperature	-15°C ~60°C
