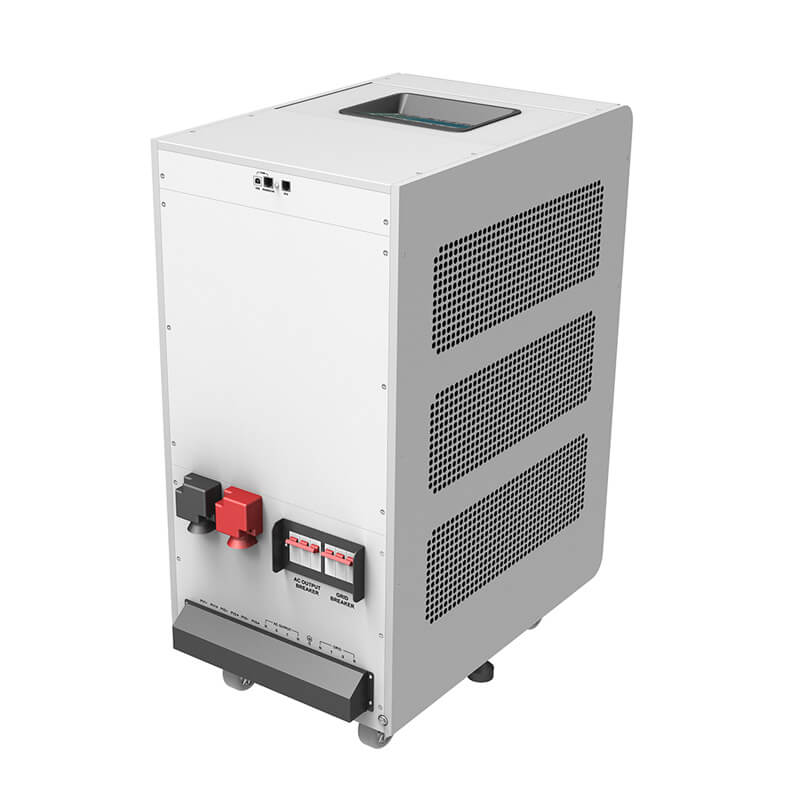

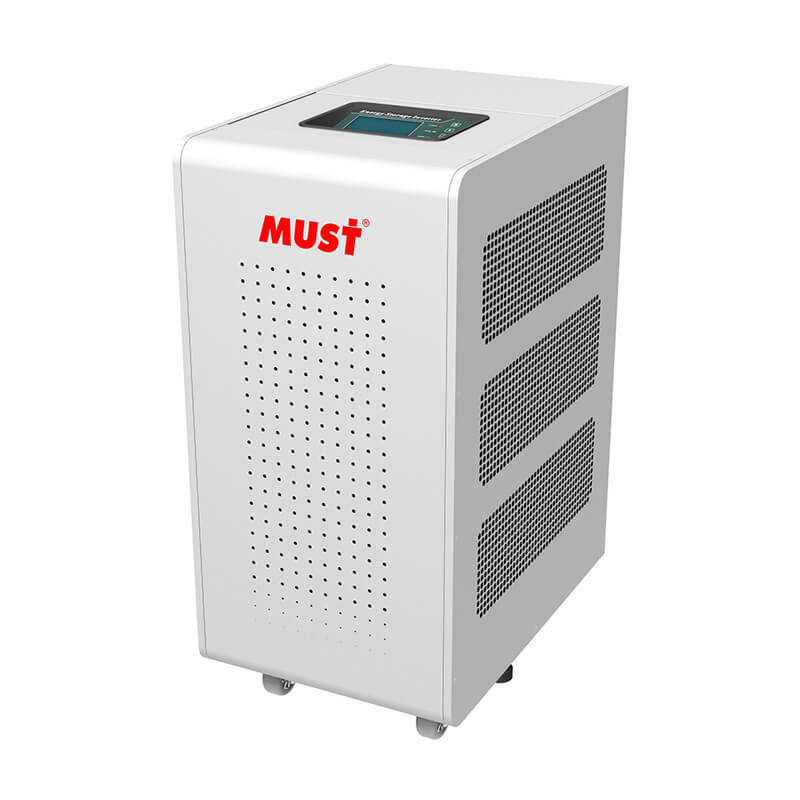

PH3000 Series Low Frequency On/Off Grid Hybrid Solar Inverter (10-12KW)
This model PH3000 Three-phase is a flexible and intelligent energy storage inverter which utilizes solar power, utility power, and battery power source to supply continuous power. This is a multi-functional hybrid inverter which can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. The system generates electricity when it has sufficient sunshine, supplying power to your home and feeding any surplus power back to the Grid.
Features:
- Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
- Built-in MPPT 180A solar charge controller
- MPPT Efficiency max 98%
- Combining solar system, AC utility, and battery power source to supply continuous power
- Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive
- Support CAN, RS485 monitoring function

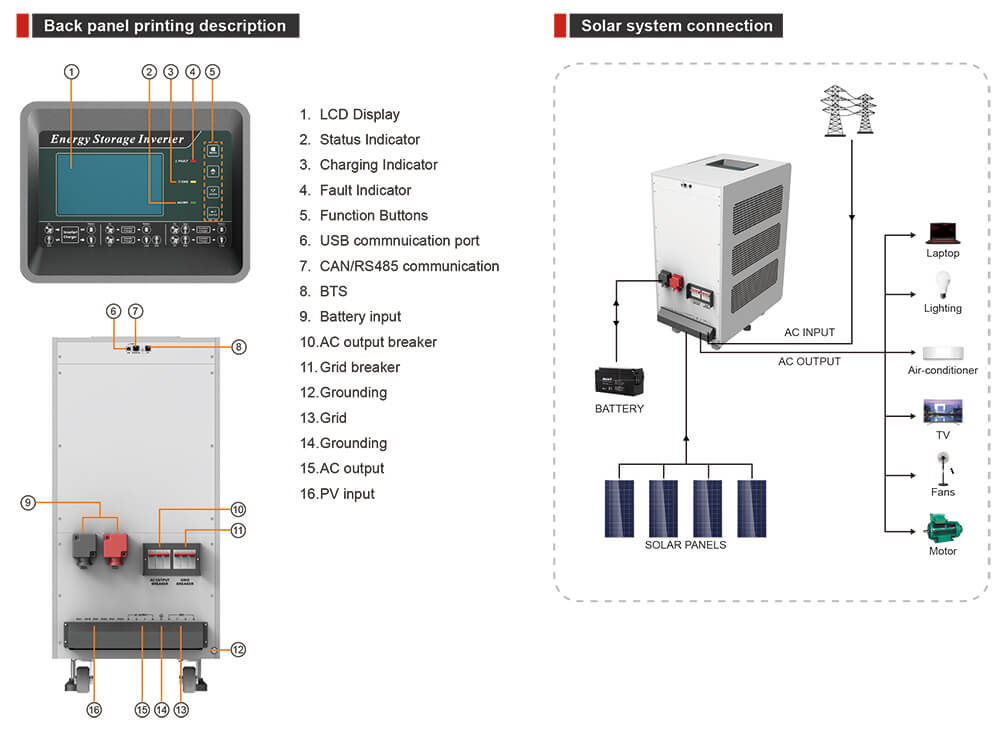

↓↓↓Installation Portfolio————
| MODEL | PH30-10048-T | PH30-12048-T |
|---|---|---|
| Nominal Battery System Voltage | 48VDC | |
| INVERTER OUTPUT | ||
| Rated output power | 10000W | 12000W |
| Output wave | Pure sine wave | |
| Nominal output voltage | 230 VAC (P-N) / 400 VAC (P-P) | |
| Nominal output current | 14.3A per phase | 17.4A per phase |
| Nominal output frequency | 50 Hz / 60 Hz | |
| Rate of wave distortion(THD)(Linearity loads) | Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3% | |
| Peak efficiency | ≥93% | |
| Overload capability | 100%<load≤110%,30 minutes; 110%<load≤125%,1 minutes; 125%<load≤150%,30 seconds; load<150%,10 seconds; Short circuit,5 seconds | |
| AC INPUT | ||
| AC input maximum current | 26.0A per phase | 34.8A per phase |
| Nominal frequency | 50Hz / 60Hz | |
| Acceptable input voltage range | Defaults 186Vac ~253Vac per phase;Narrow 174Vac ~272Vac per phase; Wide 95Vac ~272Vac per phase | |
| BATTERY | ||
| Type of Battery | Lithium battery or lead-acid battery | |
| Nominal Voltage | 48VDC | |
| Low Voltage Protection Point | Charger 34.0VDC; Inverter 40.0VDC | |
| Absorption Voltage | 50.0VDC | |
| Refloat Voltage | 54.8VDC | |
| Float Voltage | 57.2VDC | |
| SOLAR CHARGER AC CHARGER | ||
| PV Open Circuit Voltage | 145VDC | |
| Max Solar Charging Current | 60A per channel | |
| Max AC Charging Current | 60A per phase | 80A per phase |
| Max Charging Current | 120A per phase | 140A per phase |
| MECHANICAL SPECIFICATIONS | ||
| Mounting | Vertical | |
| Machine Dimension, W*H*D(mm) | 392*828*629 | |
| Package Dimensions (W*H*D)(mm) | 513*1031*700 | |
| Net Weight (kg) | 133 | 140 |
| Gross Weight (kg) | 128 | 160 |
| OTHER | ||
| Communication terminal | RS485 / CAN bus | |
| Operation Temperature Range | 0℃ ~ +50℃ | |
| Environmental Protection Rating | IP20 | |
| Ambient humidity | 0 — 90% relative humidity (non-condensing) | |
| Altitude | ≤2000m | |
