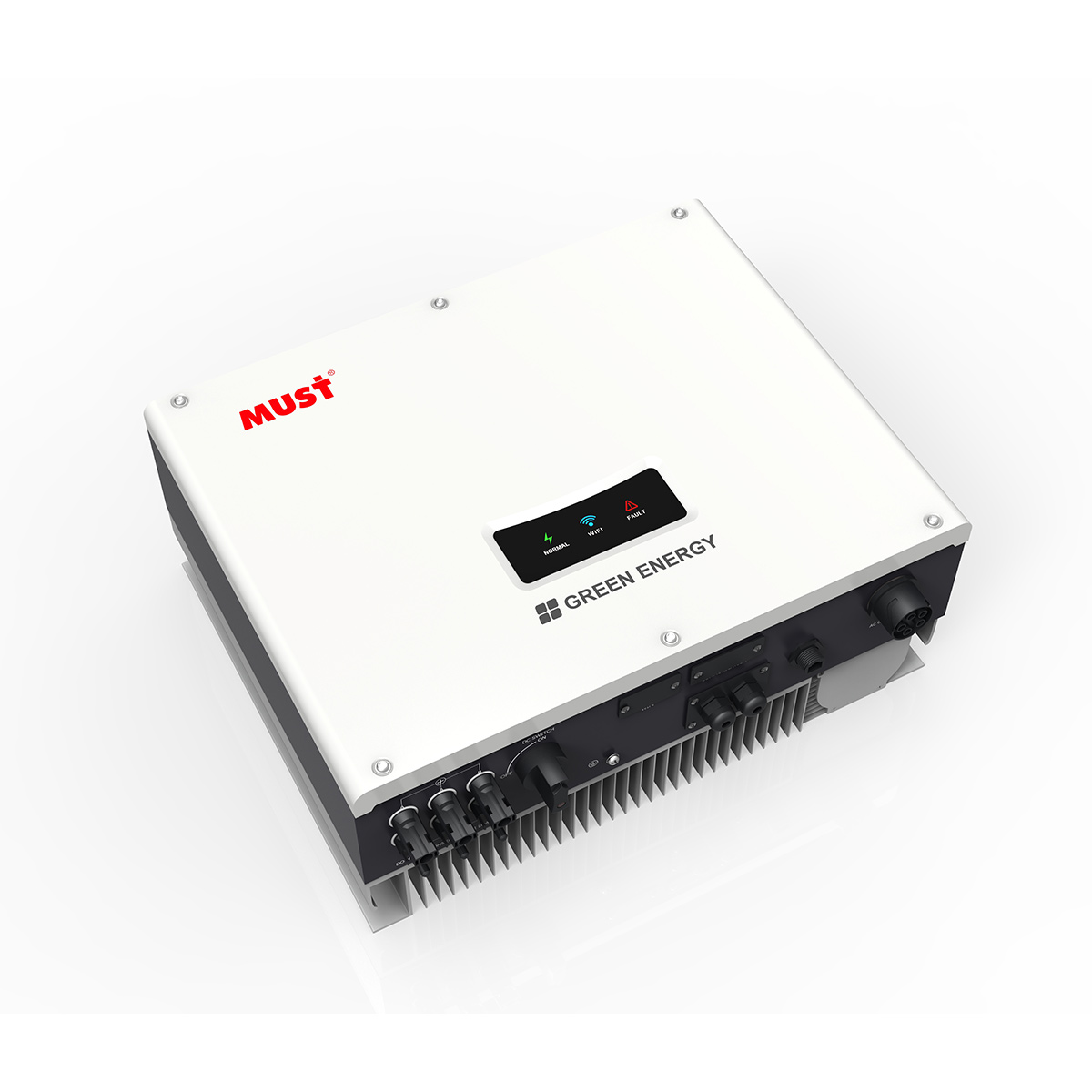

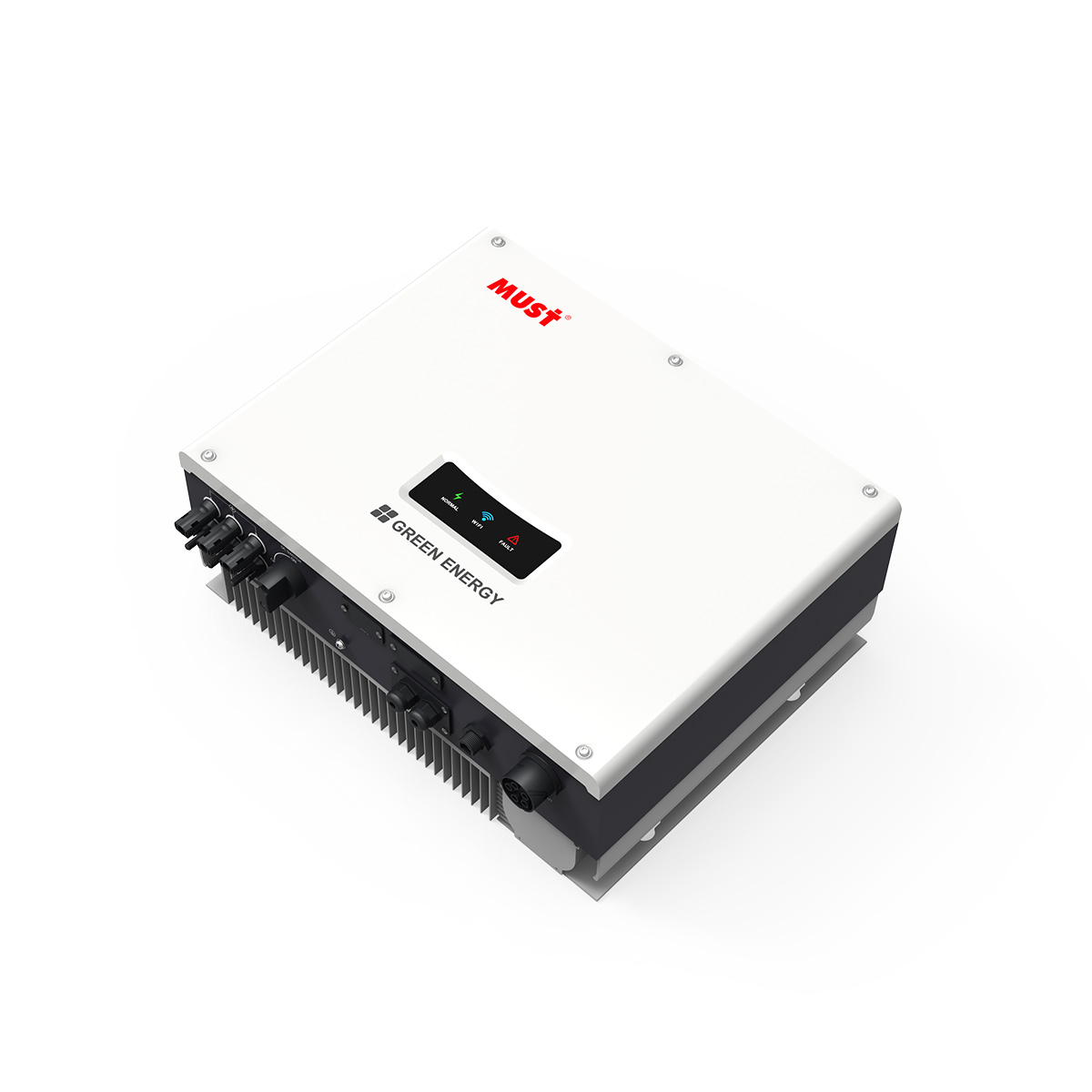

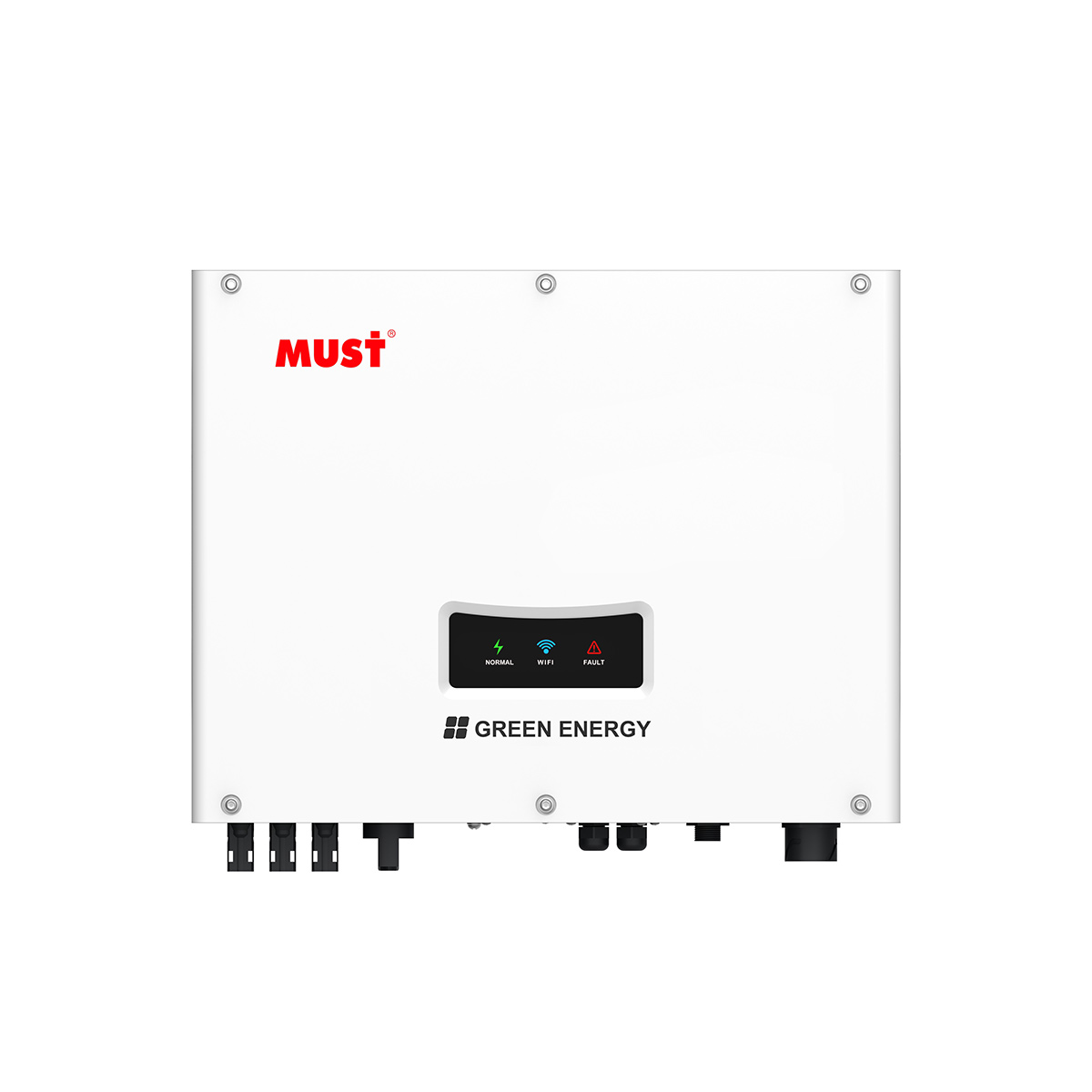

PH5000TM Series High Frequency On Grid Solar Inverter (7-11KW)
PH5000TM series PV inverters take full account of the needs of end customers, It is used to convert the DC generated by photovoltaic panels into AC and send it to the grid in a three-phase manner.with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
Features:
- Wide input voltage range from 160V-1000Vdc
- IP65 protection degree
- Integrated DC switch
- DSP controller
- The maximum efficiency is 98.4%
- Multi MPPT controller
- WIFI monitoring standard
- Easy installation

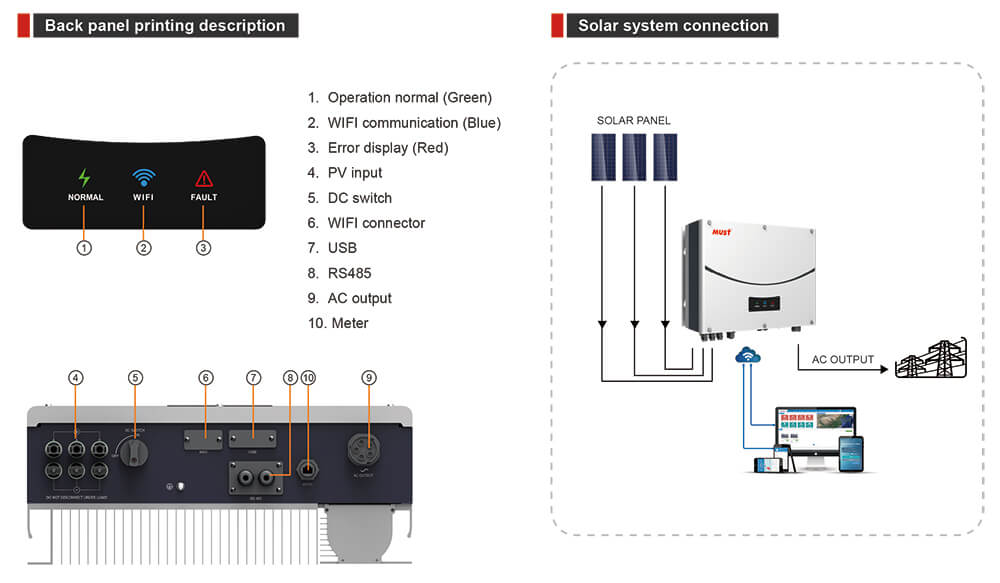

↓↓↓Installation Portfolio————
| MODEL | PH50-7000TM | PH50-8000TM | PH50-9000TM | PH50-10000TM | PH50-11000TM |
|---|---|---|---|---|---|
| OUTPUT (AC) | |||||
| Rated AC output power | 7000W | 8000W | 9000W | 10000W | 11000W |
| Max.AC apparent power | 7700VA | 8800VA | 9900VA | 11000VA | 12100VA |
| Max.output current | 11.1A | 12.7A | 14.3A | 15.9A | 17.5A |
| Nominal AC Voltage | 230V / 400V | ||||
| AC Voltage range | 320-478V | ||||
| AC grid frequency range | 50±5Hz | ||||
| 60±5Hz | |||||
| Power factor at Rated power | 1 | ||||
| Adjustable displacement power factor | 0.8leading. 0.8lagging | ||||
| THDi @ Full load & THDI <1% | < 3% | ||||
| AC grid connection type | 3W+N+PE | ||||
| INPUT DATA | |||||
| Max.recommended PV power | 8400W | 9600W | 10800W | 12000W | 13200W |
| Max.DC voltage | 1000V | ||||
| Start voltage | 160V | ||||
| Nominal voltage | 600V | ||||
| MPPT voltage range | 200V-1000V | ||||
| Max.input current | 12.5A / 12.5A | ||||
| Number of independent MPP trackers / strings per MPP tracker | 2/1 | ||||
| DC connection | H4 / MC4 | ||||
| EFFICIENCY | |||||
| Max.efficiency | 98.4% | ||||
| Euro weighted efficiency | 98% | ||||
| MPPT efficiency | 99.5% | ||||
| Protection devices | DC reverse polarity protection , Output over current protection, Output overvoltage protection-varistor, Integrated DC switch, Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit | ||||
| GENERAL DATA FEATURES | |||||
| Dimension(W/H/D)(mm) | 500*428*200 | ||||
| Weight (kg) | 23.2 | ||||
| Operation temperature range | -25℃ – +60℃ with derating above 45℃ | ||||
| Noise emission(typical) | ≤35dB(A) | ||||
| Altitude | 3000m | ||||
| Self-consumption (night) | < 1W | ||||
| Topology | Transformerless | ||||
| Cooling concept | Natural | ||||
| Environmental protection Rating | Ip65 | ||||
| Relative humidity | 0-100% | ||||
| FEATURES | |||||
| AC connection | connector | ||||
| Display | LED | ||||
| Interfaces:USB/WI-FI/RS485/GPRS | yes/yes/yes/opt | ||||
| Warranty | Standard 5 years / 10 years (opt.) | ||||
| Certificates and approvals | CE / IEC62109 / EN50549-1 | ||||
