High Frequency Power Inverter

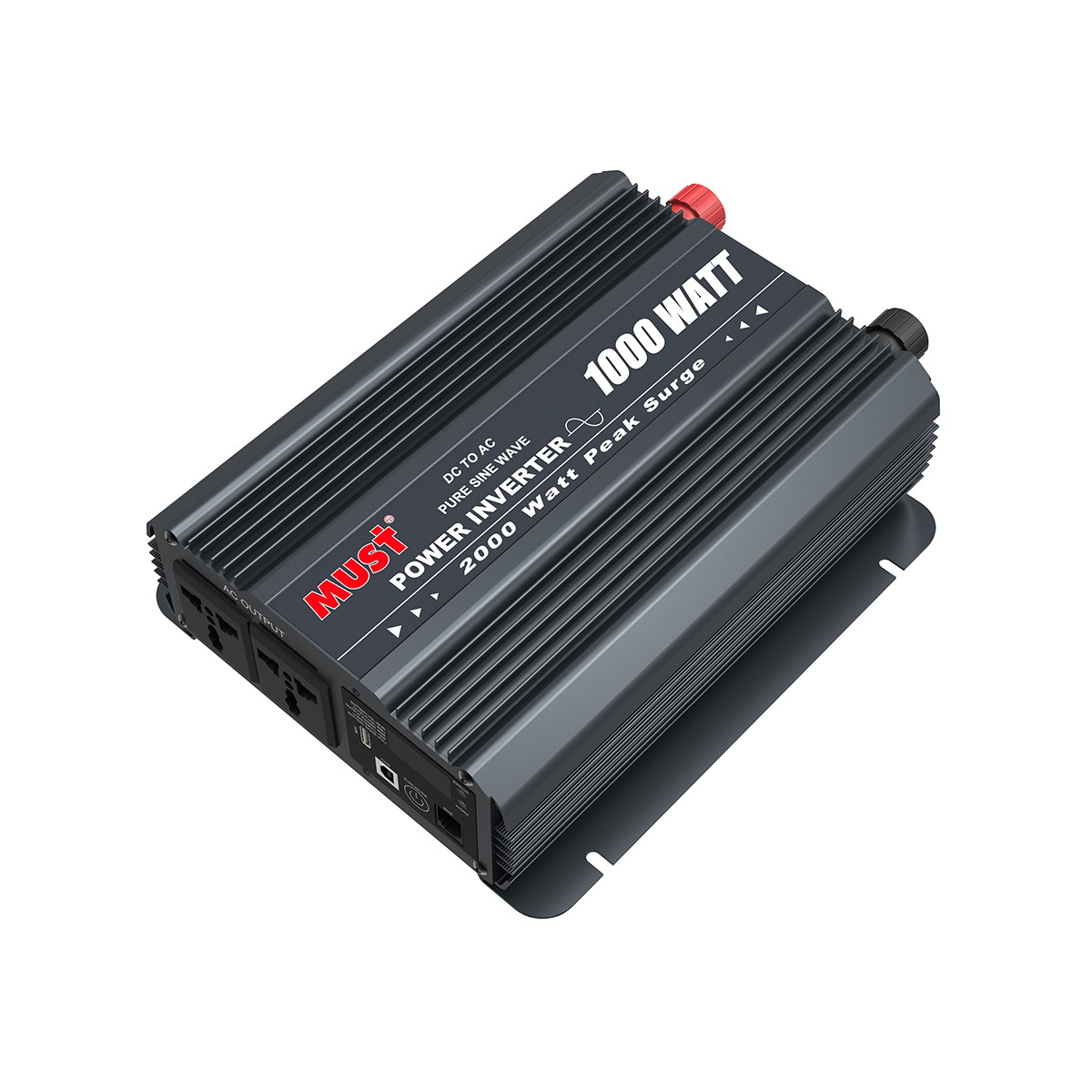

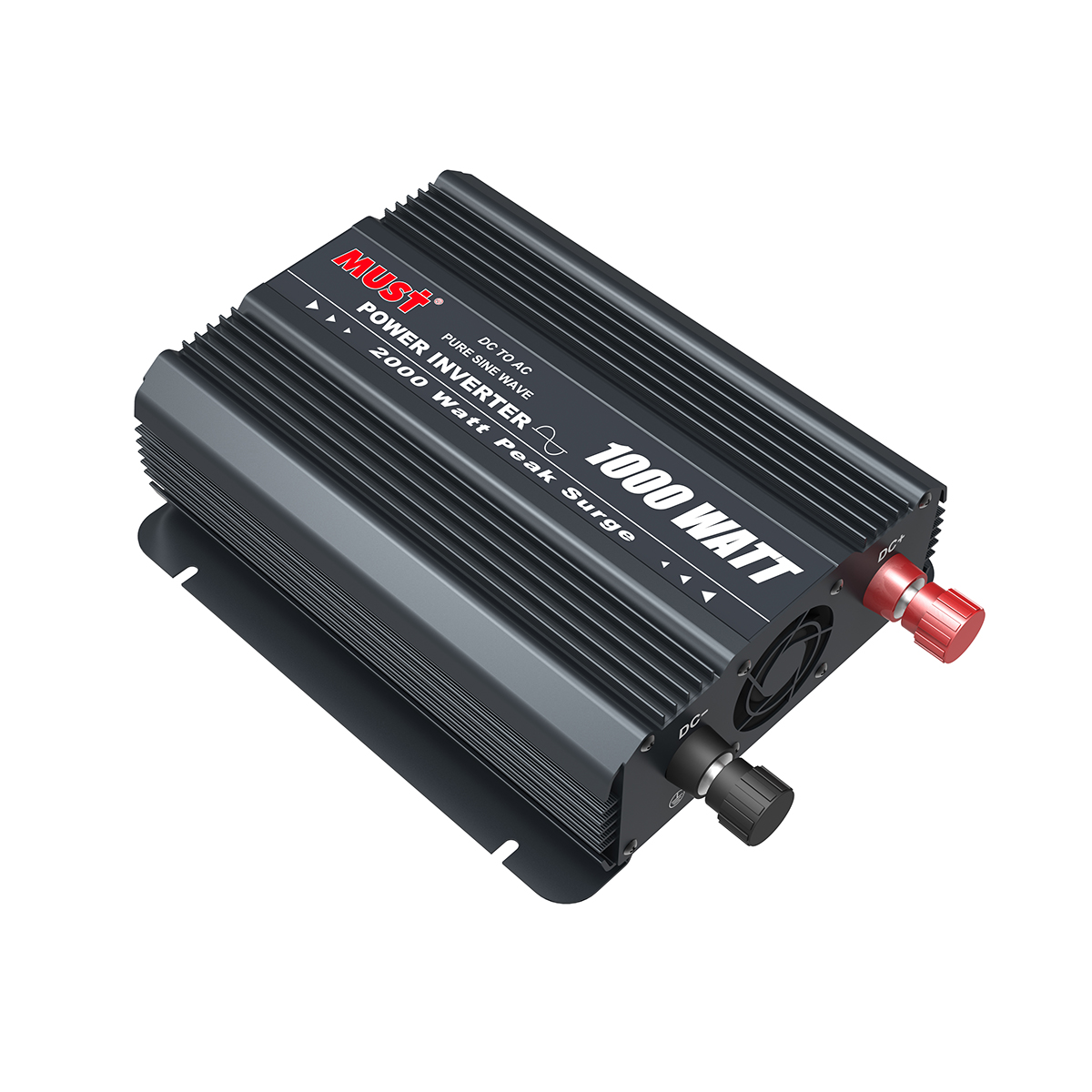

PI1500 Series Pure Sine Wave Inverter (1000W)

PI15 series is a pure sine wave inverter, high frequency machine solution, the product is small size, the solution is reliable and stable, the main function is to invert the DC 12VDC battery or 24VDC battery to AC 230VAC or AC 115VAC output, mainly used for emergency use Electricity, car inverter, outdoor electricity and other occasions.

Features:

Input Voltage 12V / 24V DC optional
Output Voltage 115V / 230V AC optional
Portable power for AC products, AC outlets for connecting multiple loads
High surge capacity for products that require more power to start
High efficiency converts virtually all of the battery's power to AC
Mounting brackets for convenient installation
Heavy duty stud-connection mounting
RS232 communication port
WIFI/BMS Optional
Overload and over temperature shut down
Low voltage and over voltage alarm/cut off
Input reverse protection
Short circuit protection

Get Pricing/Info

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL	PI15-0612	PI15-0612LV	PI15-0624	PI15-0624LV
Battery DC Input
Input Voltage	12VDC		24VDC
Low Voltage Protect Delay	2 seconds
Low Voltage Protect	10.5VDC(PB)	11.6VDC(LI)	21.0VDC(PB)	23.2VDC(LI)
Low Voltage Warning	11.5VDC(PB)	12.0VDC(LI)	23.0VDC(PB)	24.0VDC(LI)
Low Voltage Restoring	12.5VDC(PB)	12.8VDC(LI)	25.0VDC(PB)	25.6VDC(LI)
Over Voltage Restoring	14.7VDC(PB)	14.5VDC(LI)	29.4VDC(PB)	29.0VDC(LI)
Over Voltage Protect	15.0VDC(PB)	14.8VDC(LI)	30.0VDC(PB)	29.6VDC(LI)
Note: Parameters (PB) Lead-acid Battery / (Li) LiFePO4 Lithium Battery Pack-12V(4 Series) 24V(8 Series)
Inverter AC Output
Default Power	600W
Peak Power	1200W
Output AC Voltage	230V	120V	230V	120V
Output AC Frequency	50Hz	60Hz	50Hz	60Hz
Output Wave	Pure Sine Wave
Output Wave THD	< 3%
USB
USB Output	USB A type – 5V 1.5A
Protection
Battery Input Protection	Low Voltage Protection, Over Voltage Protection, Reverse Protection
Inverter Output Protection	Output Overload, Short-Circuit, Over Temperature Protection
Display
LED Display	Red: Error ; Green: System OK
LED Digital Display	Display Battery Voltage, Output Power, Output Voltage, Error Numbers
Communication
PC(Default)	USB B type Socket
WIFI(Optional)	USB A type Socket
BMS to Li Battery(Optional)	RJ11 type Socket
Efficiency
Peak Conversion efficiency	91%
Environment
Protection Degree	IP20
Working Environment	Indoor Fan cooling
Environmental temperature	0~45°C
Ambient humidity	20%–90%, No condensation
Altitude	≤3000m
