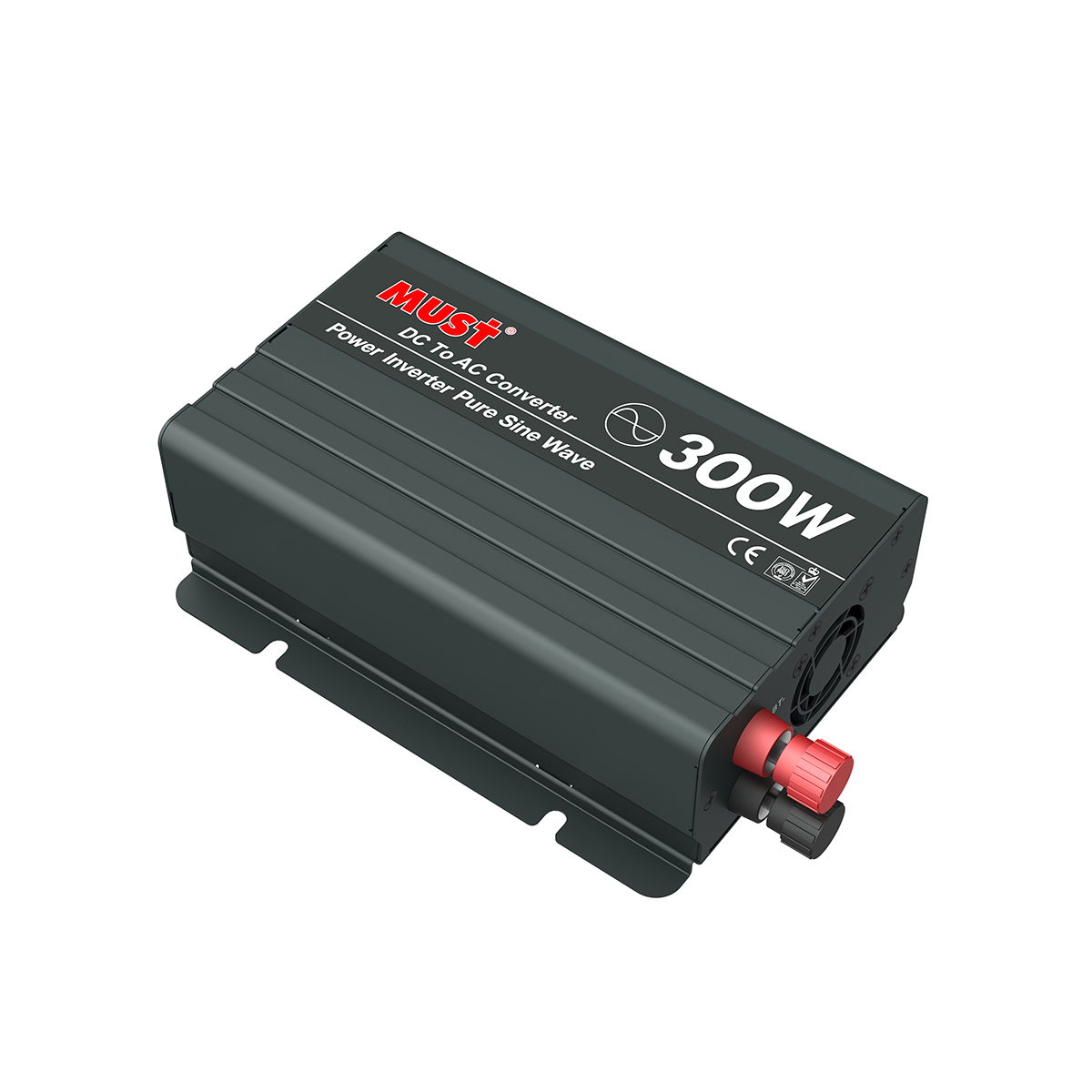

PI1500 Series Pure Sine Wave Inverter (300W)
PI15 series is a pure sine wave inverter, high frequency machine solution, the product is small size, the solution is reliable and stable, the main function is to invert the DC 12VDC battery or 24VDC battery to AC 230VAC or AC 115VAC output, mainly used for emergency use Electricity, car inverter, outdoor electricity and other occasions.
Features:
- Input Voltage 12V / 24V DC optional
- Output Voltage 115V / 230V AC optional
- Portable power for AC products, AC outlets for connecting multiple loads
- High surge capacity for products that require more power to start
- High efficiency converts virtually all of the battery's power to AC
- Mounting brackets for convenient installation
- Heavy duty stud-connection mounting
- RS232 communication port
- WIFI/BMS Optional
- Overload and over temperature shut down
- Low voltage and over voltage alarm/cut off
- Input reverse protection
- Short circuit protection

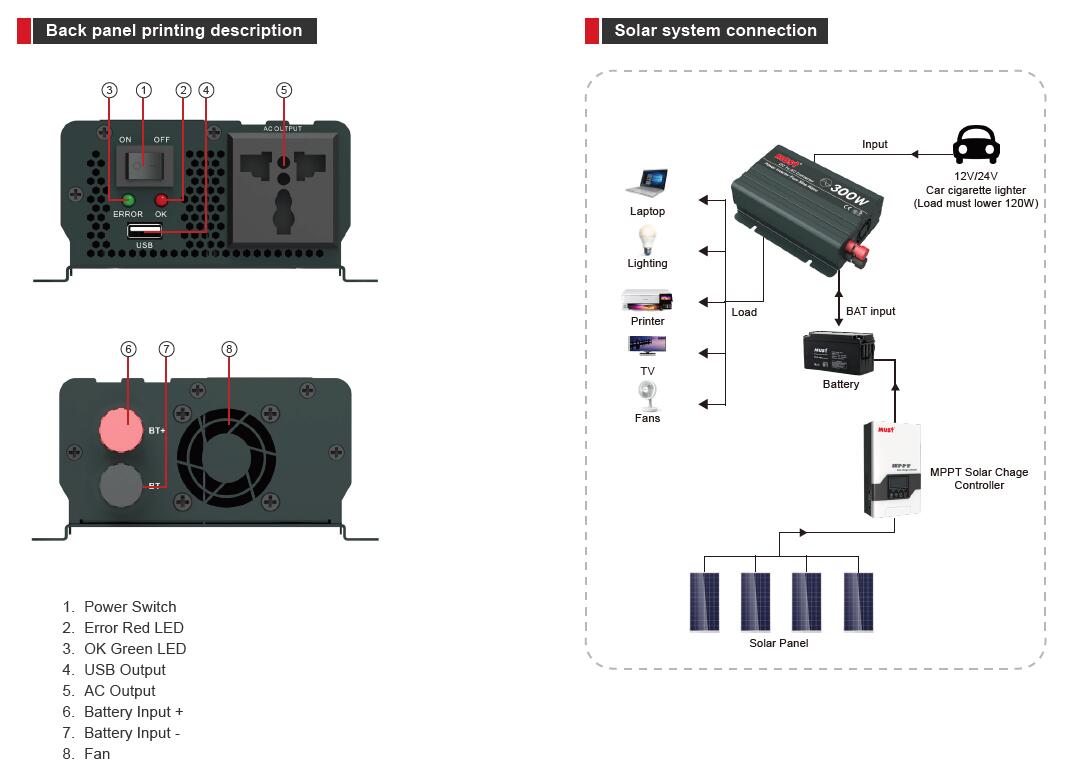

↓↓↓Installation Portfolio————
| MODEL | PI15-0312 | PI15-0324 | PI15-0312LV | PI15-0324LV | ||
|---|---|---|---|---|---|---|
| Battery DC Input | ||||||
| Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | ||
| Low Voltage Warning | 11.5V | 23.0V | 11.5V | 23.0V | ||
| Low Voltage Protect | 10.5V | 21.0V | 10.5V | 21.0V | ||
| Low Voltage Protect Delay | 2 seconds | |||||
| Low Voltage Restoring | 12.5V | 25.0V | 12.5V | 25.0V | ||
| Over Voltage Protect | 15.5V | 31.0V | 15.5V | 31.0V | ||
| Over Voltage Restoring | 15.0V | 30.0V | 15.0V | 30.0V | ||
| Inverter AC Output | ||||||
| Default Power | 300W | |||||
| Peak Power | 600W | |||||
| Output AC Voltage | 230V | 120V | ||||
| Output AC Frequency | 50Hz | 60Hz | ||||
| Output Wave | Pure Sine Wave | |||||
| Output Wave THD | < 3% | |||||
| USB | ||||||
| USB Output | USB A type – 5V 1.5A | |||||
| Protection | ||||||
| Battery Input Protection | Battery Input Reverse, Low Voltage Protection, Over Voltage Protection | |||||
| Inverter Output Protection | Output Overload, Short-Circuit, Over Temperature Protection | |||||
| Display | ||||||
| LED Display | Red: Error ; Green: System OK | |||||
| Efficiency | ||||||
| Peak Conversion efficiency | 91% | |||||
| Environment | ||||||
| Protection Degree | IP32 | |||||
| Working Environment | Indoor Fan cooling | |||||
| Environmental temperature | 0~45°C | |||||
| Ambient humidity | 20%–90%, No condensation | |||||
| Altitude | ≤3000m | |||||
| Dimensions | ||||||
| Size (L*W*H) | 132*177.5*59 mm | |||||
| Weight (KG) | 1kg | |||||
