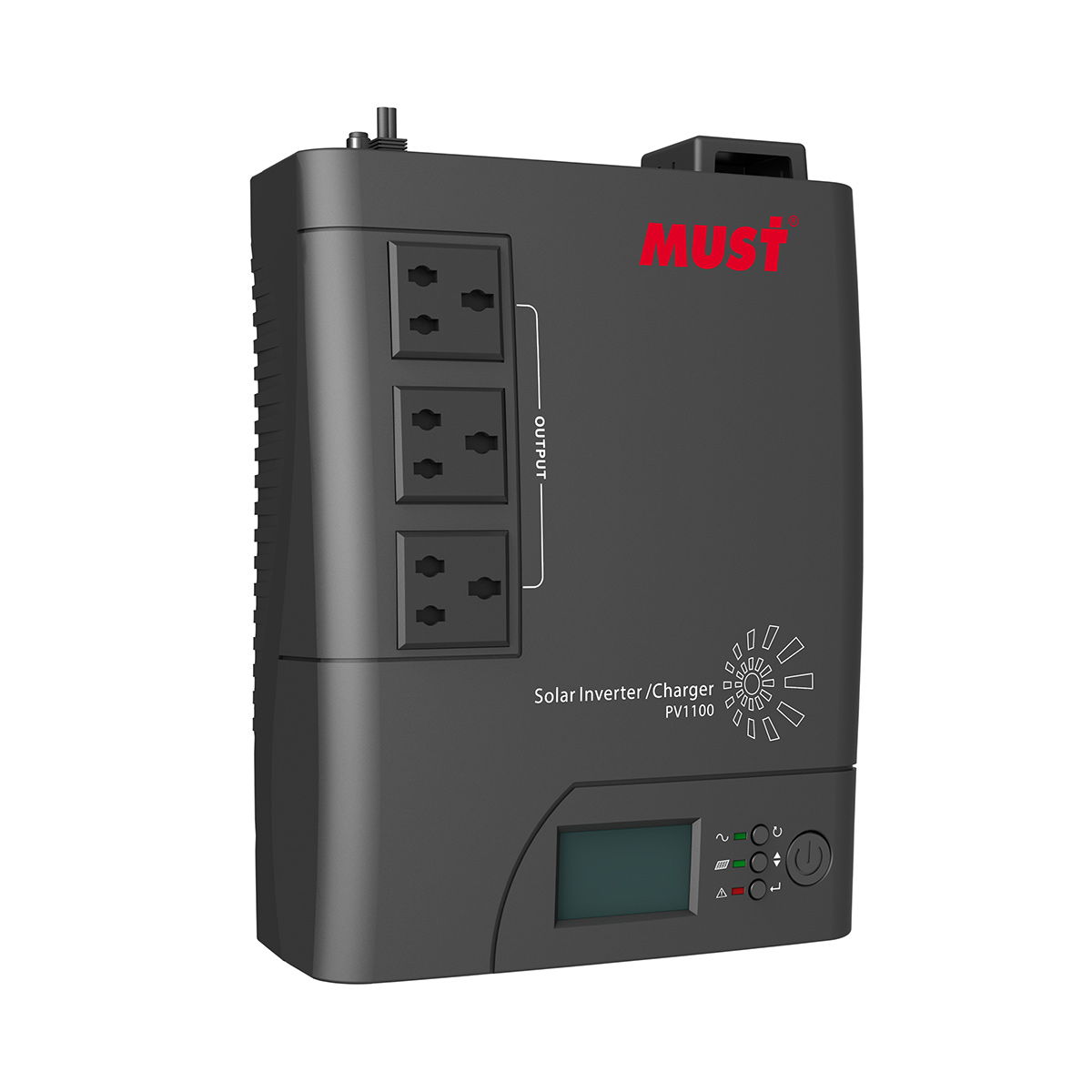

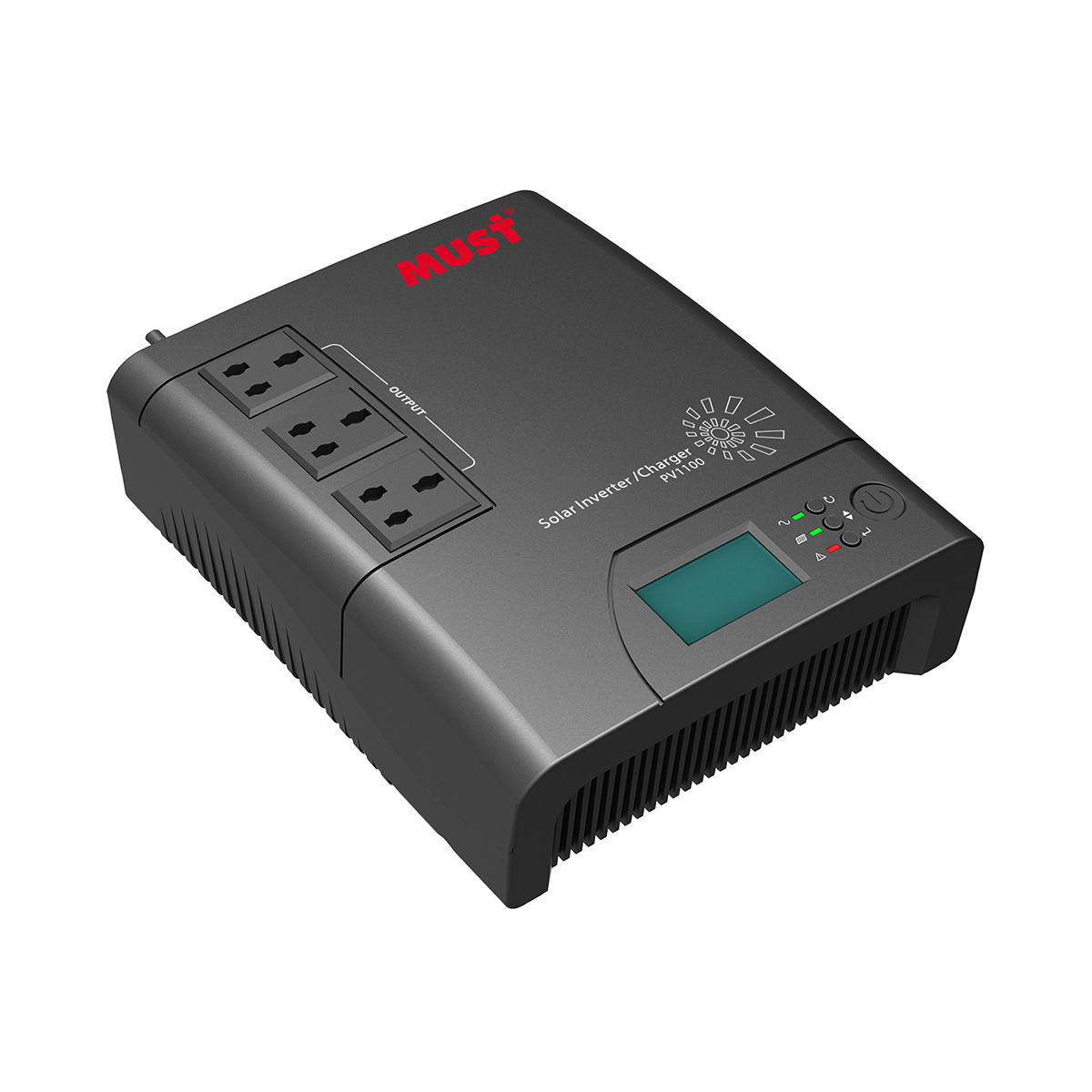

PV1300 Series High Frequency Off Grid Solar Inverter (1-1.5KVA)
PV1300 is a cost effective , intelligent hybrid off grid solar inverter with power range 1000VA 1500VA. The LCD display offers friendly user-configurable button adjustment such as input voltage setting, AC/solar charger priority , mute setting. When battery voltage is low, it’s will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.
Features:
- Simulated sine wave inverter
- Built-in 50A PWM Solar Charge Controller
- MFD (multi-function display)
- 20A standard charging current from utility
- AC/solar priority for output via MFD
- 3 steps charging algorithm
- Overload & short-circuit protection
- Battery reverse polarity protection
- Deep discharge protection
- Auto restart while AC/solar is recovering

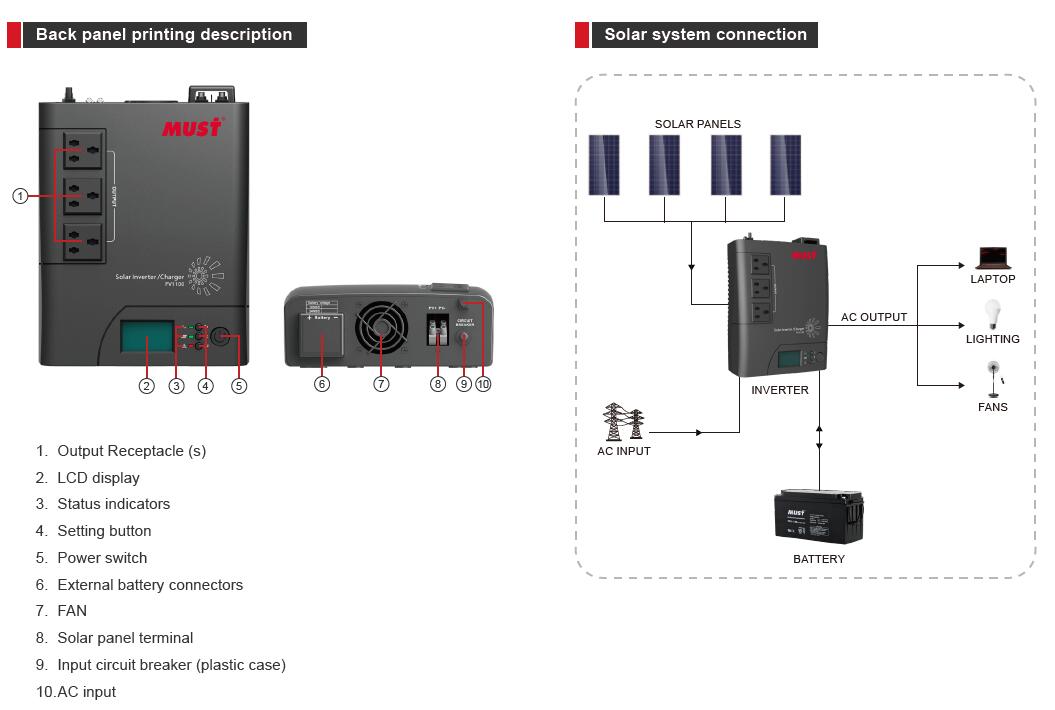

↓↓↓Installation Portfolio————
| MODEL | PV13-1012 | PV13-1512 | PV13-1024 | PV13-1524 | |
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | 24VDC | |
| NVERTER OUTPUT | |||||
| Rated Power | 1000VA/600W | 1500VA/1000W | 1000VA/600W | 1500VA/1000W | |
| Waveform | Simulated Sine-wave | ||||
| Nominal Output Voltage RMS | 230V | ||||
| Output Voltage Regulation | +10/-18% | ||||
| Output Frequency | 50Hz/60Hz ±1 Hz | ||||
| Inverter Efficiency(Peak) | >80% | ||||
| Line Mode Efficiency | >98% | ||||
| Typical Transfer Time | Typical 6~8ms 10ms max | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | Narrow | 175~260VAC | |||
| Wide | 140~270VAC | ||||
| Frequency Range | 40Hz-70Hz (Auto sensing) | ||||
| BATTERY | |||||
| Nominal Input Voltage | 12VDC | 24VDC | |||
| Minimum Start Voltage | 10.5VDC | 21.0VDC | |||
| Low Battery Alarm | 10.5VDC | 21VDC | |||
| Low Battery Cutoff | 10.0VDC | 20.0VDC | |||
| High Voltage Cutoff | 15.5VDC (max) | 31.0VDC (max) | |||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Charge Current | 50A (max) | ||||
| Maximum PV Array Power | 450W/750W | 900W/1500W | |||
| PWM Range @ Operating Voltage | 16~55VDC | ||||
| Maximum PV Array Open Circuit Voltage | 55VDC | ||||
| Maximum Efficiency | >95% | ||||
| Standby Power Consumption | <2W | ||||
| AC Charger Voltage | 14.4V(max) | 28.8V(max) | |||
| AC Charging Current | 10A / 20A | ||||
| BYPASS & PROTECTION | |||||
| Nominal Input Frequency | 40Hz – 70Hz | ||||
| Overload Protection (SMPS Load) | FUSE | ||||
| Output Short Circuit Protection | FUSE | ||||
| Bypass Fuse Rating | 10A | ||||
| Max Bypass Current | 10Amp | ||||
| MECHANICAL SPECIFICATIONS | |||||
| Machine Dimensions (W*H*D) | 231*290*92mm | ||||
| Package Dimensions (W*H*D) | 595*375*315mm | ||||
| Net Weight (kg) | 2.8 | 4 | |||
| Gross Weight (kg) | 3.5 | 4.7 | |||
| OTHER | |||||
| Operation Temperature Range | 0°C~50°C | ||||
| Audible Noise | 50dB MAX | ||||
| Display | LED+LCD | ||||
