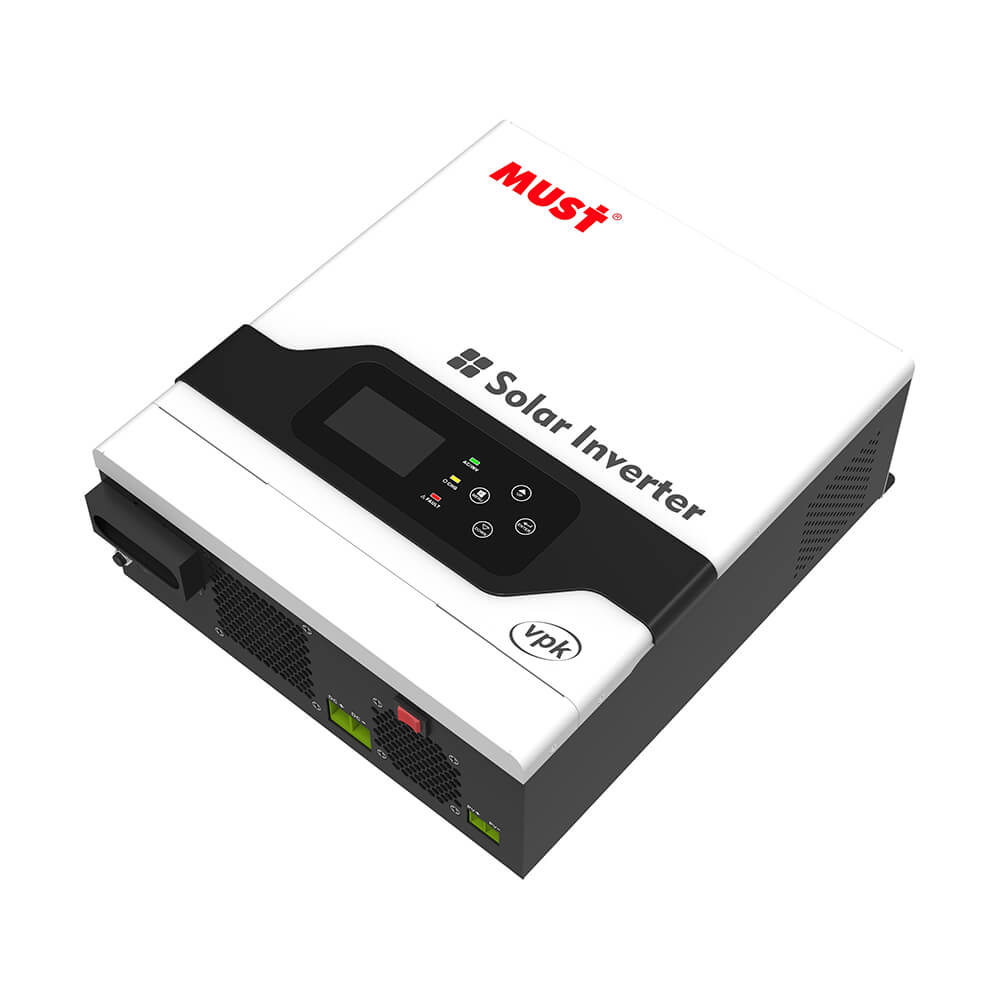

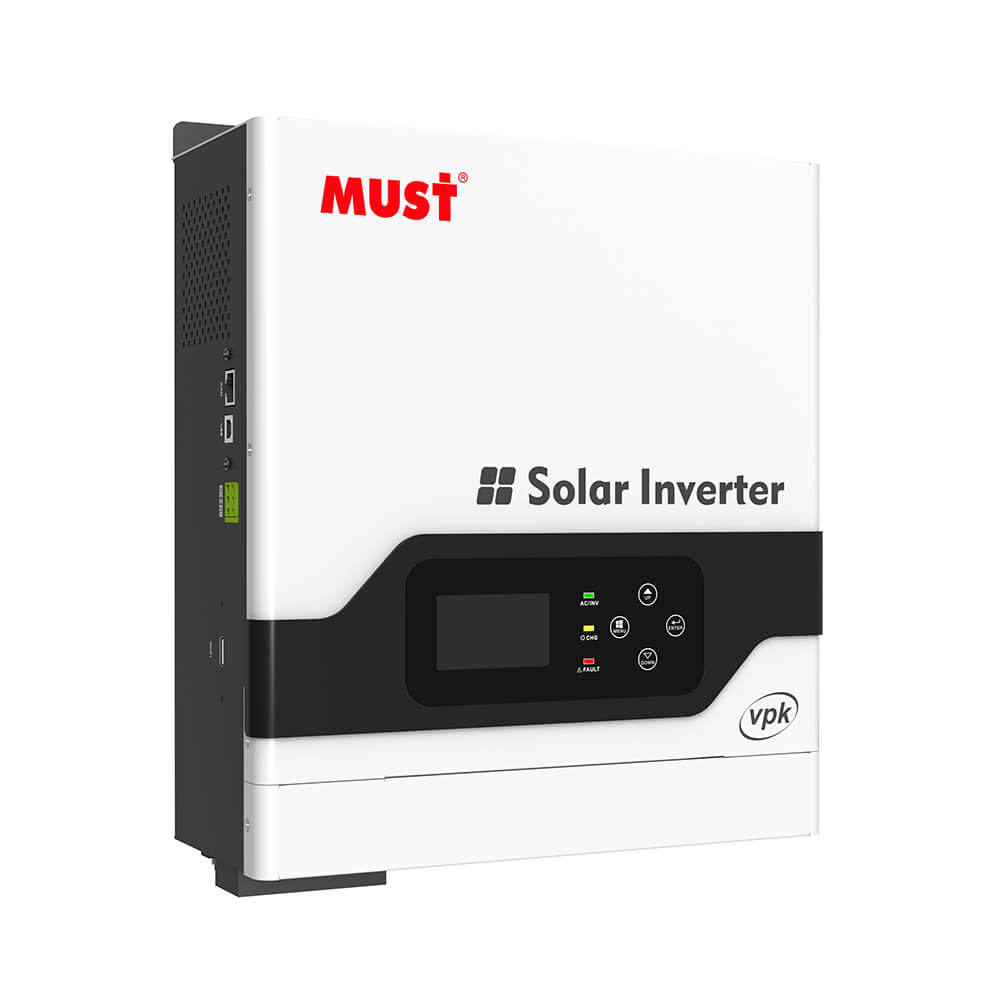

PV1800 VM Series High Frequency Off Grid Solar Inverter (2.5/3KVA)
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A solar charger and battery charger to offer uninterruptible powersupport with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery chargingcurrent, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT 60A solar charge controller
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (optional)
- Compatible to generator

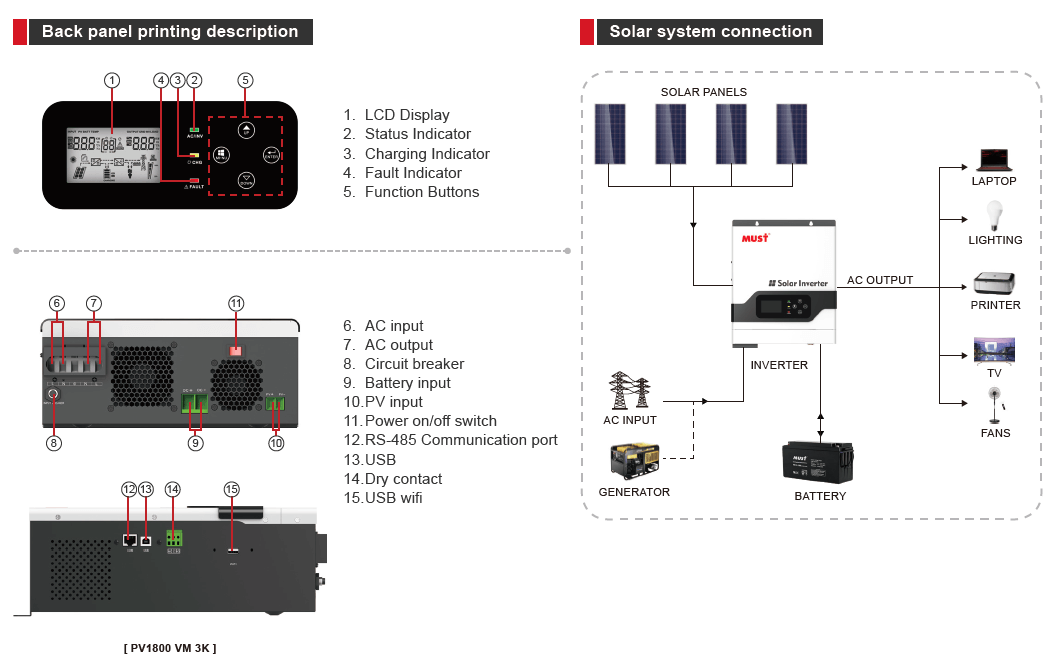

↓↓↓Installation Portfolio————
| MODEL | PV18-2524 VM | PV18-3024 VM |
|---|---|---|
| Default Battery System Voltage | 24VDC | |
| INVERTER OUTPUT | ||
| Rated Power | 2500VA / 2000W | 3000VA / 2500W |
| Surge Power | 5000VA | 6000VA |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 220VAC~240VAC(Setting) | |
| Inverter Efficiency(Peak) | 90%~93% | |
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) | |
| AC INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | |
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |
| BATTERY | ||
| Normal voltage | 24VDC | |
| Floating Charge Voltage | 27.4VDC | |
| Overcharge Protection | 30VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 145VDC | |
| PV Array MPPT Voltage Range | 30~120VDC | |
| Standby Power Consumption | 2W | |
| Maximum PV Array Power | 1500W | |
| Maximum Solar Charge Current | 60A | |
| Maximum Efficiency | 98% | |
| Maximum AC Charge Current | 10A or 20A | |
| Maximum Charge Current | 80A | |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimensions (W*H*D)(mm) | 225*355*92 | 290*342*125 |
| Package Dimensions (W*H*D)(mm) | 410*300*178 | 425*390*215 |
| Net Weight(kg) | 5 | 7.4 |
| Gross Weight(kg) | 5.5 | 9.5 |
| OTHER | ||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | |
| Operating Temperature | 0°C~50°C | |
| Storage Temperature | -15°C -60°C | |
