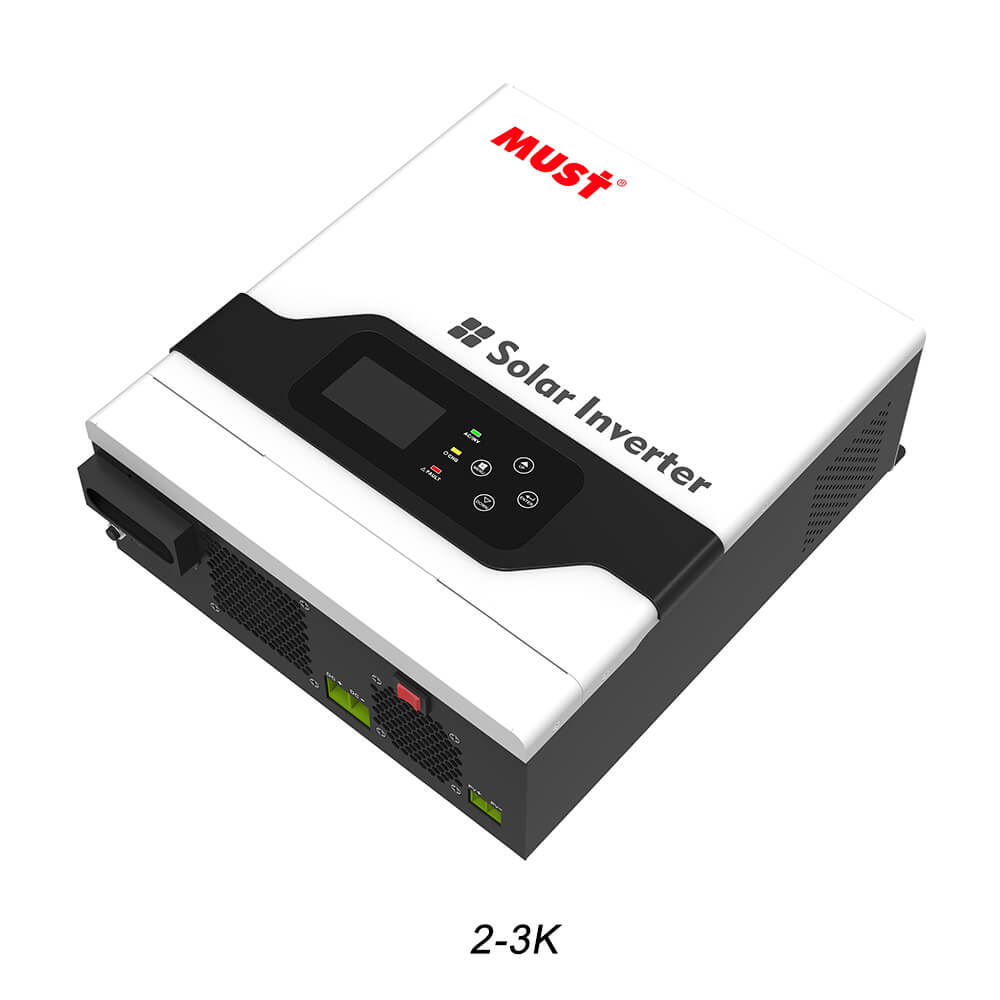

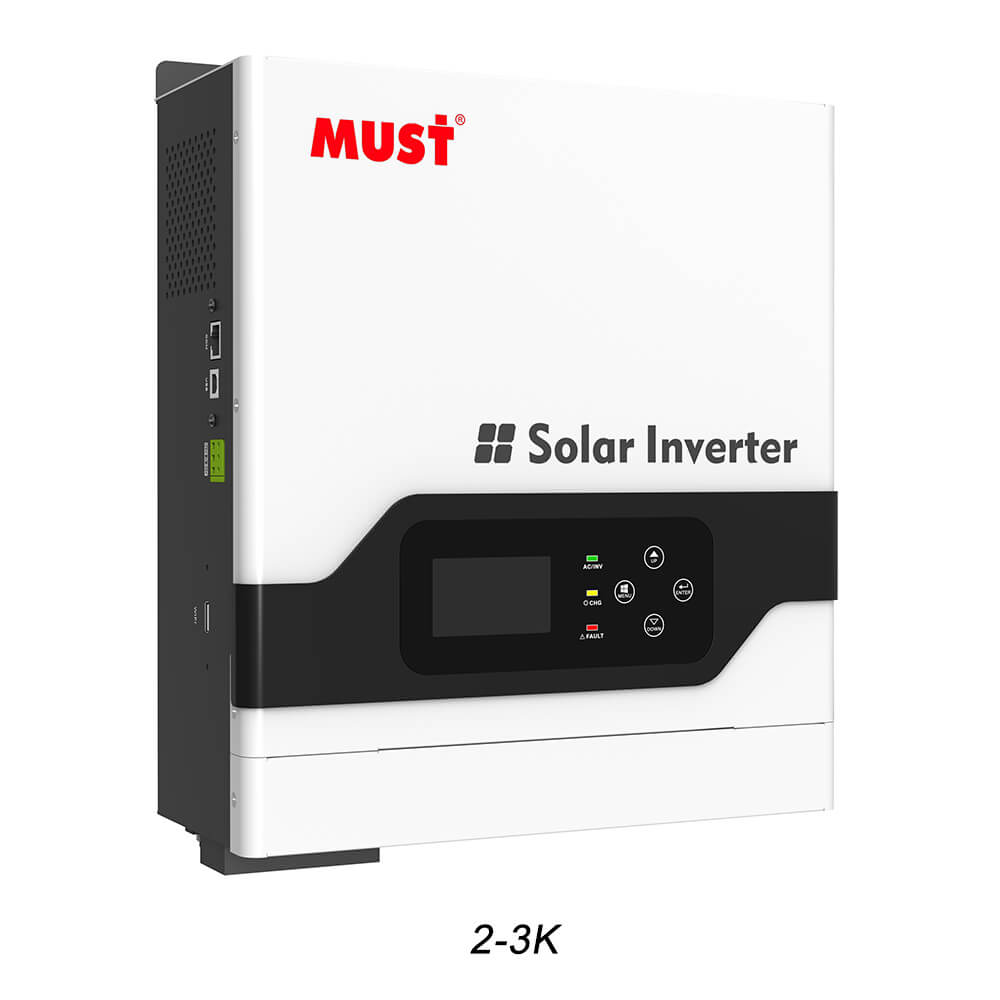

PV1800 VPM Series High Frequency Off Grid Solar Inverter (1-5KW)
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT 60A/80A solar charge controller
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (optional)
- Compatible to generator
- Optional:Support parallel operation up to 3 units (available for 3KW-5KW 48V)

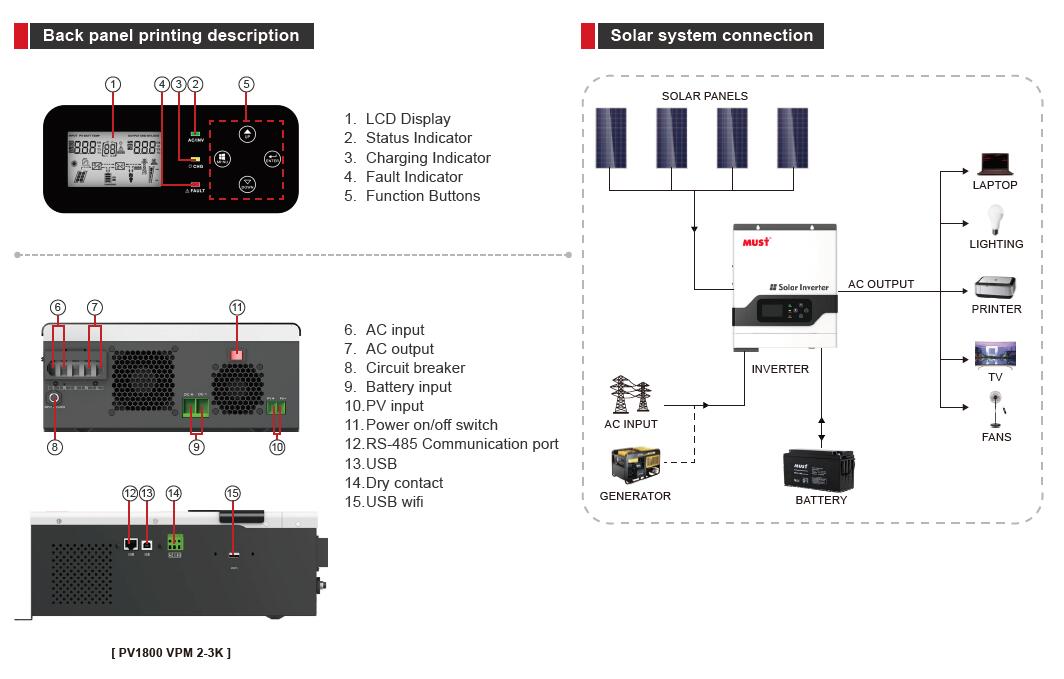

↓↓↓Installation Portfolio————
| MODEL | PV18-1012 VPM | PV18-2024 VPM | PV18-3024 VPM | PV18-3048 VPM | PV18-4048 VPM | PV18-5048 VPM |
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 24VDC | 48VDC | |||
| INVERTER OUTPUT | ||||||
| Rated Power | 1000VA / 1000W | 2000VA / 2000W | 3000VA / 3000W | 3000VA / 3000W | 4000VA / 4000W | 5000VA / 5000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC~240VAC(Setting) | |||||
| Inverter Efficiency(Peak) | 90%~93% | |||||
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | |||||
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 12VDC | 24VDC | 48VDC | |||
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 105VDC | 145VDC | 145VDC | |||
| PV Array MPPT Voltage Range | 15~105VDC | 30~120VDC | 60~130VDC | |||
| Standby Power Consumption | 2W | |||||
| Maximum PV Array Power | 720W | 1500W | 4000W | |||
| Maximum Solar Charge Current | 60A | 80A | ||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 70A | 80A | 140A | |||
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimensions (W*H*D)(mm) | 225*355*92 | 272*355*100 | 297.5*468*125 | |||
| Package Dimensions (W*H*D)(mm) | 410*300*78 | 485*393*251 | 638*395*241 | |||
| Net Weight(kg) | 5 | 7.4 | 14 | |||
| Gross Weight(kg) | 5.5 | 9.5 | 16.4 | |||
| OTHER | ||||||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C~50°C | |||||
| Storage Temperature | -15°C -60°C | |||||
