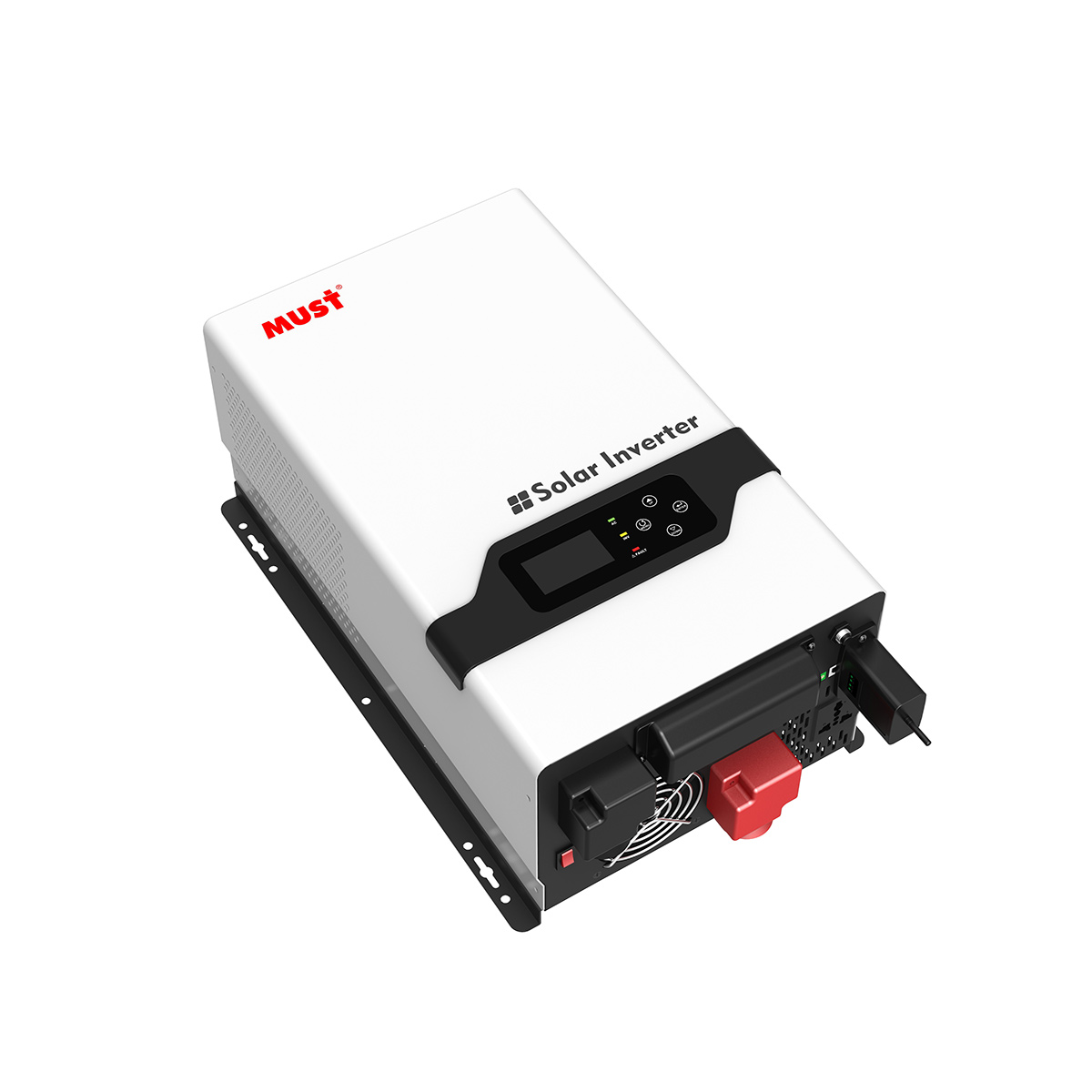

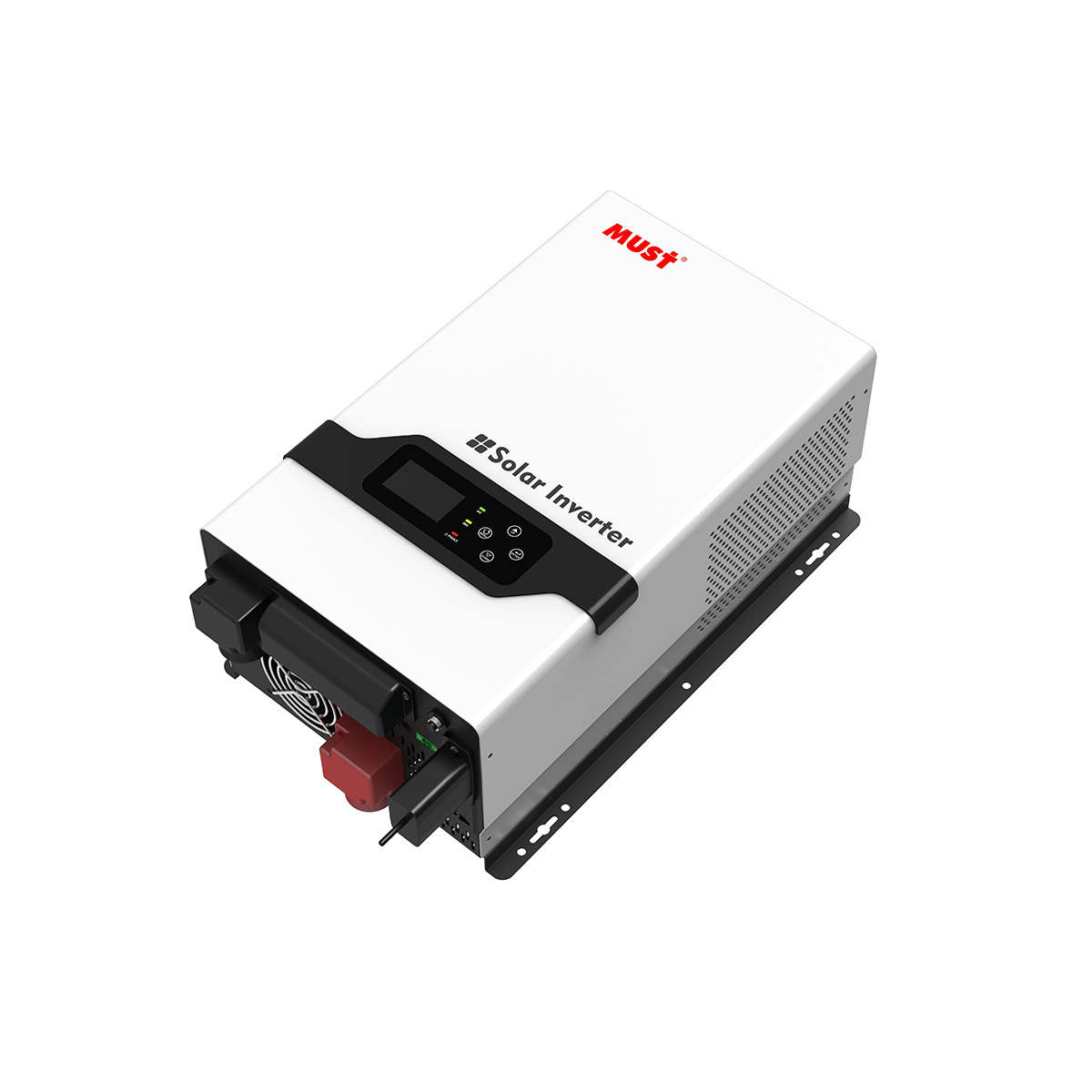

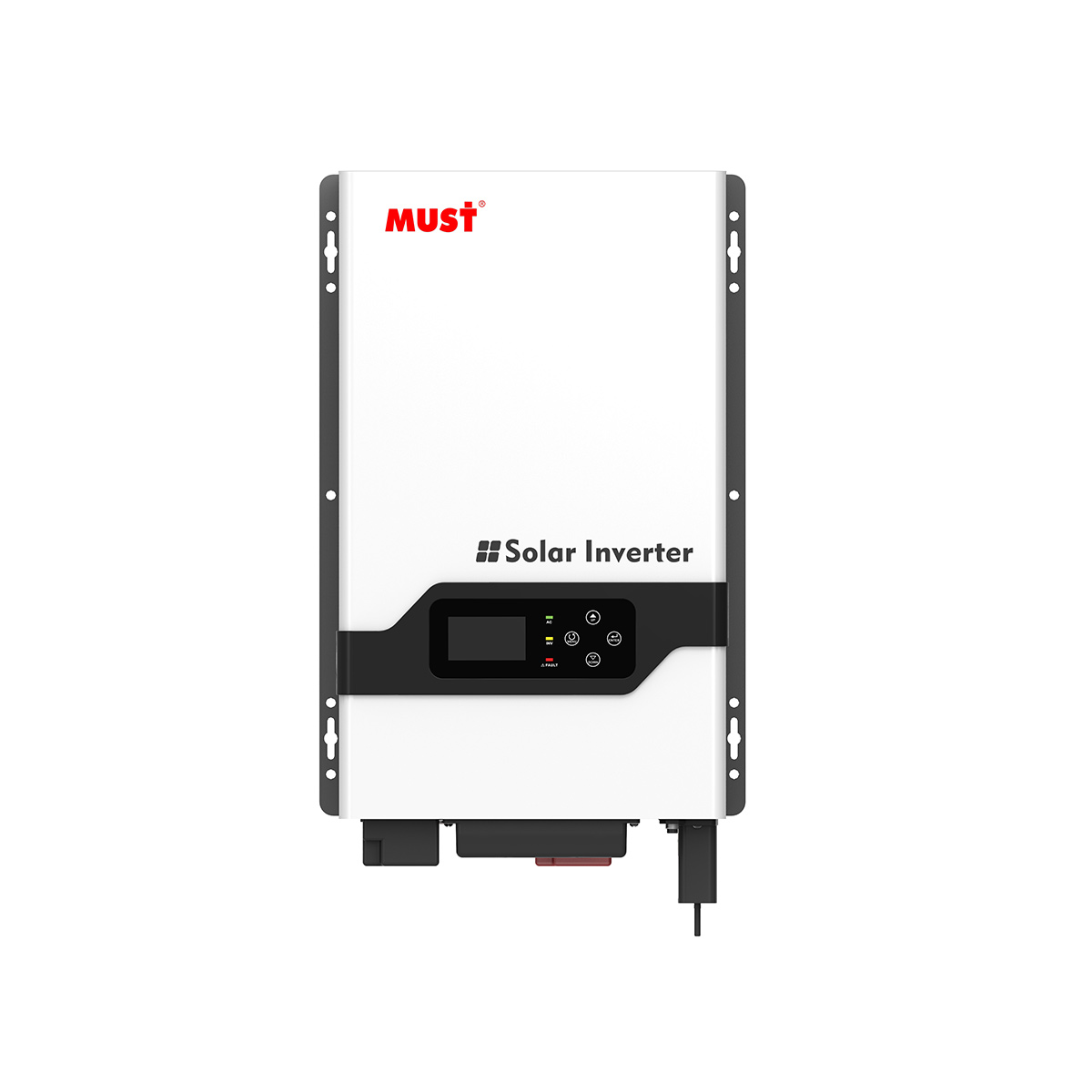

PV3000 VPM Series Low Frequency Solar Inverter/Charger (1-3KVA)

PV3000 VPM series is very economical pure sine wave solar inverter, inbuilt with 60A MPPT Charger and AC Charger from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower, in this way system charge is optimazed best. It enables inverter to operate with all kinds of home appliances.

Features:

Pure sine wave output
3 Steps charging
Overload and short-circuit protection
Set charging voltage/charging current
Battery low voltage shutdown point can be set to 10 / 10.5 / 11 / 11.5V
Power-save mode
Set utility priority/battery priority
Set utility input wide/narrow range
Inverter voltage can be set to 110V/115V/120V or 220V/230V/240V
Inverter frequency can be set to 50Hz/60Hz
Set utility charging on/off switch
Inbuilt with 60A MPPT Solar Charge Controller
Acid or Lithium Select
WiFi port (optional)

Get Pricing/Info

↓↓↓Installation Portfolio————

MODEL		PV30-1K VPM		PV30-1.5K VPM		PV30-2K VPM		PV30-3K VPM
Nominal Battery System Voltage		12VDC	24VDC	12VDC	24VDC	12VDC	24VDC	24VDC
INVERTER OUTPUT
Rated Power		1000VA		1500VA		2000VA		3000VA
Surge Rating		3000VA		4500VA		6000VA		9000VA
Capable Of Starting Electric Motor		1HP		1HP		1HP		2HP
Waveform		Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS		110V /115V / 120V / 220V / 230V / 240VAC (±10% RMS)
Output Frequency		50Hz / 60Hz ±0.3Hz
Inverter Efficiency (Peak)		>88%
Line Mode Efficiency		>95%
Power Factor		0.7
Typical Transfer Time		10ms(max)
AC INPUT
Voltage		230VAC
Selectable Voltage Range		96~132VAC 155~280VAC(For personal computers)
Frequency Range		50Hz / 60Hz(Auto sensing) 40~80Hz
BATTERY
Minimum Start Voltage		(10V / 10.5V / 11V )+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
Low Battery Alarm		(10V / 10.5V / 11V )+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
Low Battery Cut Off		10V / 10.5V / 11V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
High Voltage Alarm		(13.8-14.5V)+1V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
High Battery Voltage Recover		(13.8-14.5V)+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
Idie Consumption-Search Mode		Load ≤50±20W(120V)/100±20W(220V)
CHARGER
Output Voltage		Depends on battery type
Charge AC Input Breaker Rating	120V	1K/12A		1.5K/16A		2K/30A		3K/40A
Charge AC Input Breaker Rating	230V	1-1.5K/10A				2-3K/30A
Overcharge Protection S.D.		15.7VDC for 12VDC mode (*2 for 24VDC mode)
Maximum Charge Current		30A	20A	45A	25A	60A	30A	40A
BYPASS & PROTECTION
Input Voltage Waveform		Sine wave (grid or generator)
Nominal Input Frequency		50Hz or 60Hz
Overload Protection (SMPS Load)		Circuit breaker
Output Short Circuit Protection		Circuit breaker
Bypass Breaker Rating	230V	1-3K/30A
Bypass Breaker Rating	120V	1K/16A		1.5K/20A		2K/30A		3K/40A
Max Bypass Current		30Amp
SOLAR CHARGER
Maximum PV Array Power		1000W	2000W	1000W	2000W	1000W	2000W	2000W
Maximum PV Charge Current		60A
DC Voltage		12V / 24V auto work
MPPT Range @ Operating Voltage		12V: 16~75VDC; 24V: 32-100VDC
Maximum PV Array Open Circuit Voltage		12V:75VDC; 24V:100VDC
Standby Power Consumption		<2W
MECHANICAL SPECIFICATIONS
Mounting		Wall Mount
Dimensions (WHD)		423247197mm
Net Weight (Solar CHG)(kg)		16.5		17		21.1	20	24.5
Shipping Dimensions (WHD)		585387322mm
Shipping Weight (Solar CHG)(kg)		19.3		20		24.1	22.8	29.1
OTHER
Operation Temperature Range		0℃ to 40℃
Storage Temperature		-15℃ to 60℃
Audible Noise		60dB MAX
Display		LED+LCD
Standard Warranty		1 year
