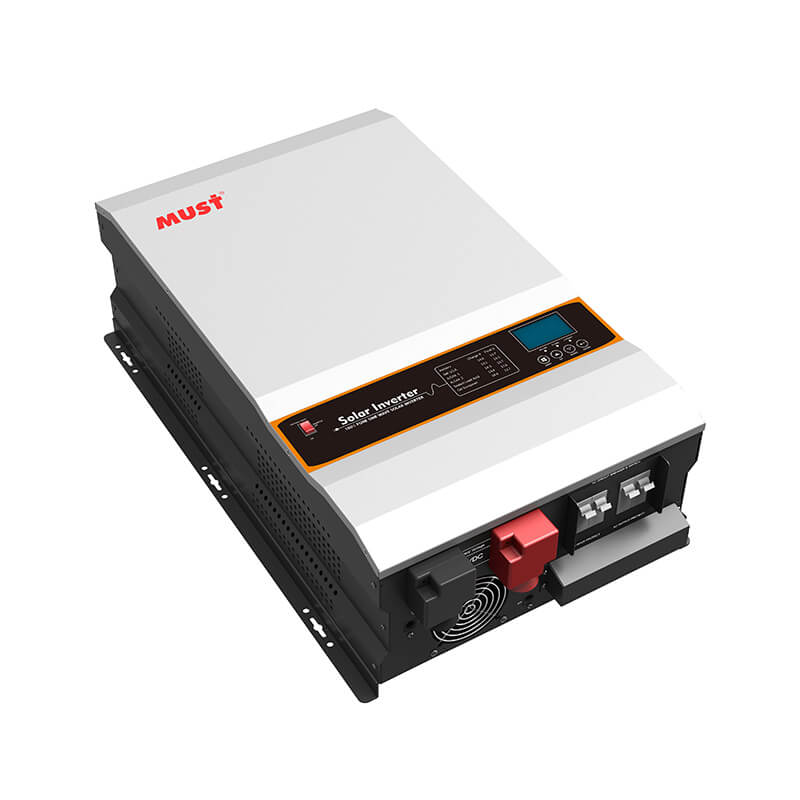

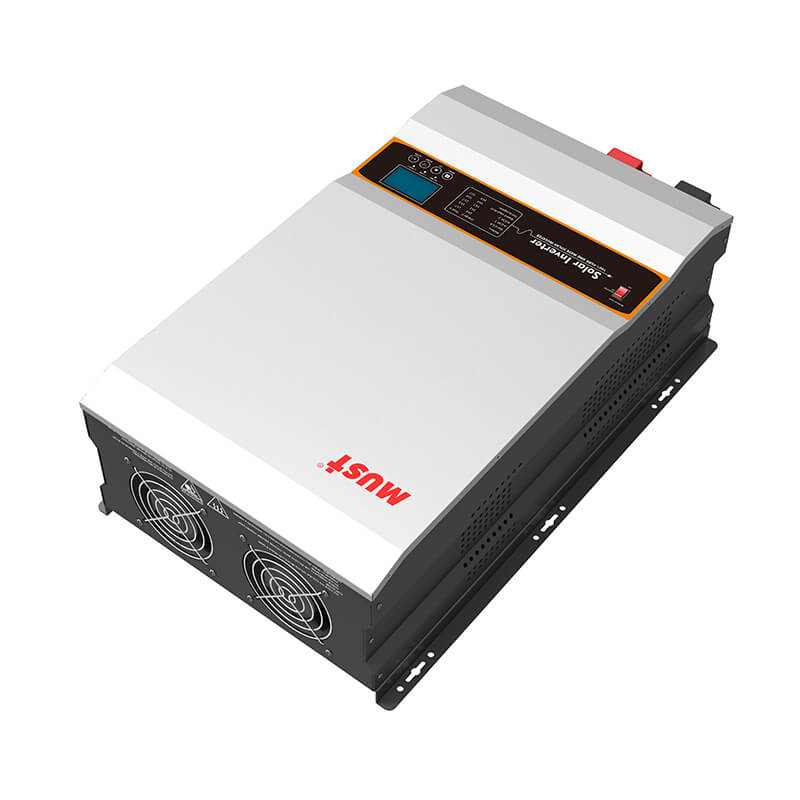

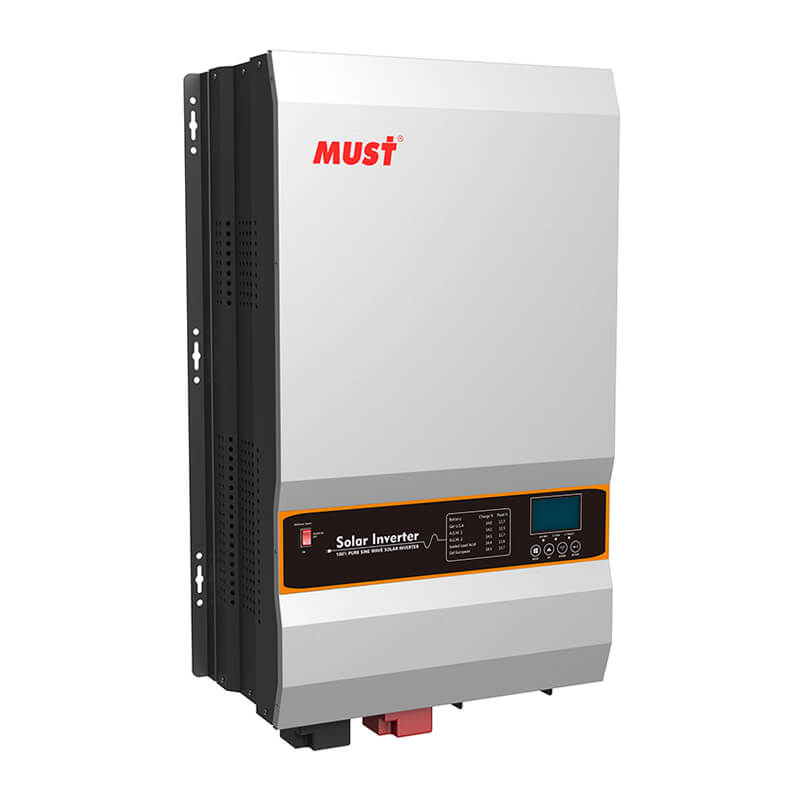

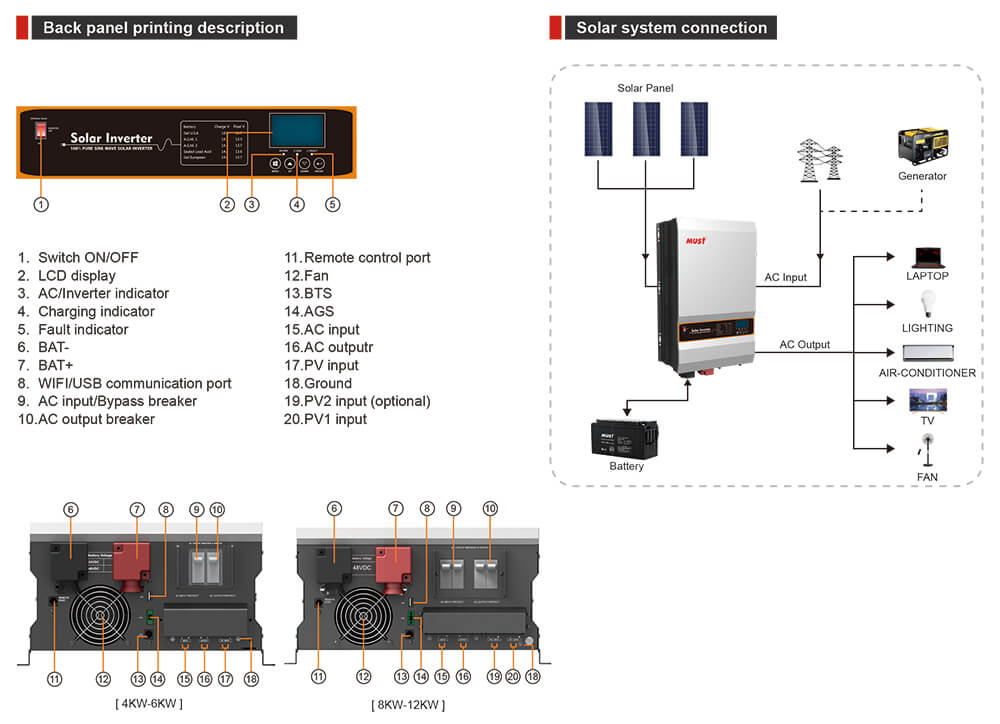

PV3500 PRO series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger to offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.
MODEL | PV35 PRO- 4K | PV35 PRO- 5K | PV35 PRO- 6K | PV35 PRO- 8K | PV35 PRO- 10K | PV35 PRO- 12K | ||
---|---|---|---|---|---|---|---|---|
Nominal Battery System Voltage | 24V | 48V | 24V | 48V | 48V | 48VDC | 48VDC | 48VDC |
INVERTER OUTPUT | ||||||||
Rated power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
Surge rating | 12000VA | 15000VA | 18000VA | 24000VA | 30000VA | 36000VA | ||
Capable of starting electric motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||
Waveform | Pure sine wave / same as input (bypass mode) | |||||||
Nominal output voltage RMS | 220V / 230V / 240VAC (±10%RMS) | |||||||
Output frequency | 50Hz / 60Hz ± 0.3Hz | |||||||
Inverter effciency(peak) | >85% | >88% | ||||||
Line mode efficiency | >95% | |||||||
Power factor | 1.0 | |||||||
Typical transfer time | 20ms(max) | |||||||
AC INPUT | ||||||||
Voltage | 230VAC | |||||||
Selectable voltage range | 90-280 VAC (APL) | |||||||
Frequency range | 50Hz / 60Hz | |||||||
BATTERY | ||||||||
Low battery voltage cutoff | 20-24VDC for 24VDC mode (40-48VDC for 48VDC mode) | |||||||
Low battery voltage recover | 21-25VDC for 24VDC mode (42-50VDC for 48VDC mode) | |||||||
High battery voltage cutoff | 30VDC for 24VDC mode (60VDC for 48VDC mode) | |||||||
High battery voltage recover | 28.5VDC for 24VDC mode (57VDC for 48VDC mode) | |||||||
Idle consumption-search mode | <30W when power saver on | <80W when power saver on | ||||||
AC CHARGER | ||||||||
Output voltage | Depends on battery type | |||||||
Charger AC input breaker rating | 40A | 40A | 50A | 80A | 80A | 80A | ||
Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A |
BTS | ||||||||
Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | |||||||
BYPASS & PROTECTION | ||||||||
Input voltage waveform | Sine wave (grid or generator) | |||||||
Nominal input frequency | 50Hz or 60Hz | |||||||
Overload protection (SMPS Load) | Circuit breaker | |||||||
Output short circuit protection | Circuit breaker | |||||||
Bypass breaker rating | 40A | 63A | 63A | 63A | ||||
Max bypass current | 40Amp | 80Amp | ||||||
SOLAR CHARGER | ||||||||
Maximum PV charge current | 80A | 100A(200A optional) | ||||||
DC voltage | 24V / 48V Auto work | 48V | ||||||
Maximim PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000W(10000W for 200A optional) | ||
MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode,64-145V for 48V mode | 64~145VDC | ||||||
Maximum PV array open circuit voltage | 145VDC | |||||||
Maximum effciency | >98% | |||||||
Standby power consumption | <2W | |||||||
MECHANICAL SPECIFICATIONS | ||||||||
Mounting | Wall mount | |||||||
Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | ||||||
Net weight (solar CHG) (kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||
Shipping dimensions (W*H*D) | 755*515*455mm | 884*618*443mm | ||||||
Shipping weight (Solar CHG) (kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||
OTHER | ||||||||
Operation temperature range | 0°C to 40°C | |||||||
Storage temperature | -15°C to 60°C | |||||||
Audible noise | 60dB MAX | |||||||
Display | LED+LCD | |||||||
Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs |
