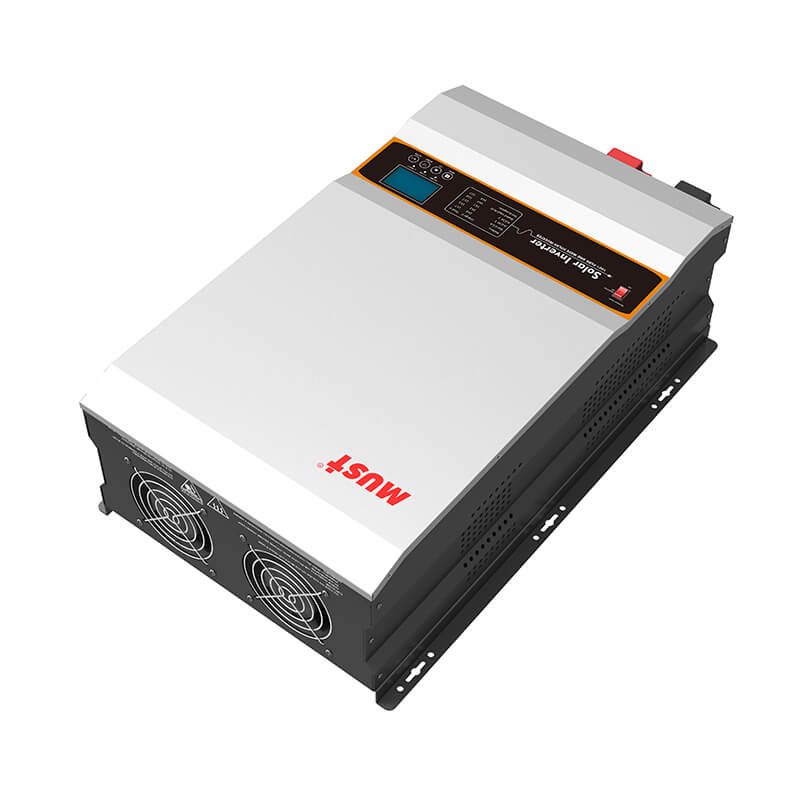

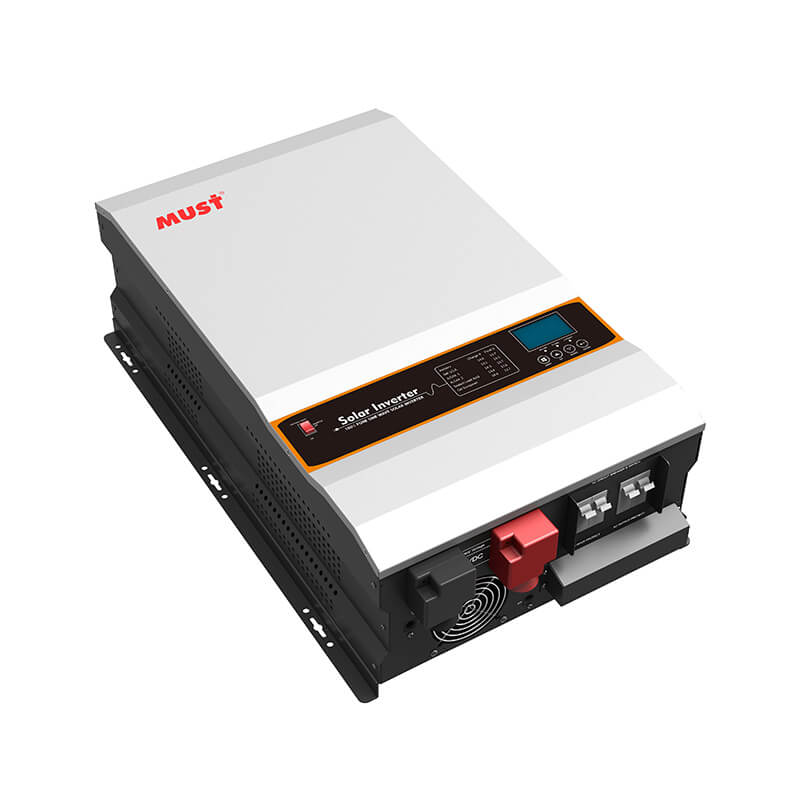

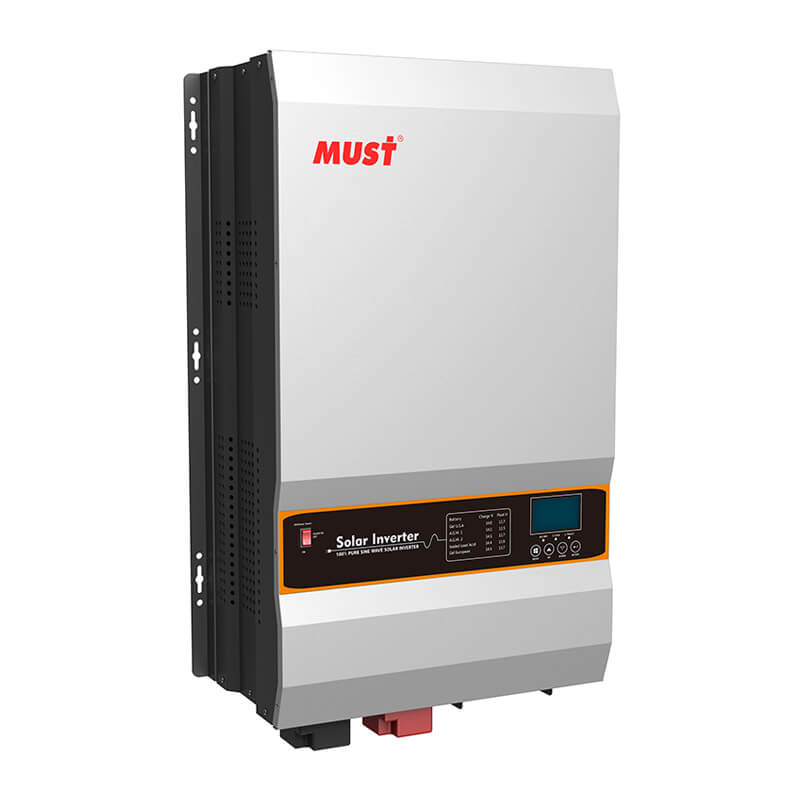

PV3500 TLV Series Low Frequency Off Grid Solar Inverter (AC:110/220V 8-12KW)
PV3500 TLV series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery chargerto offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as batterycharging current, AC/solar charger priority, and selectable input voltage based on different applications.

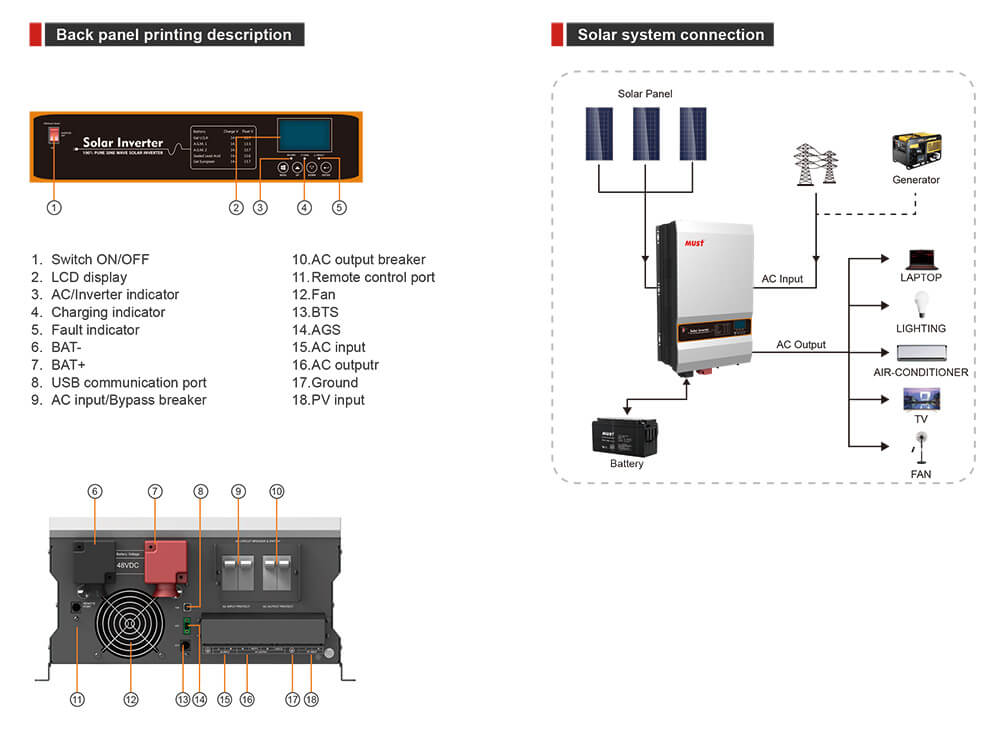

Features:
- Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)
- Built-in MPPT solar charge controller 100A
- MPPT efficiency max 98%
- Powerful charge rate up to 80Amp
- DC start &Automatic Self-Diagnostic Function
- USB monitoring function
- Supporting AGS, BTS port
- Compatible to generator
↓↓↓Installation Portfolio————
| MODEL | PV35-8048 TLV | PV35-10048 TLV | PV35-12048 TLV |
|---|---|---|---|
| Nominal Battery System Voltage | 48VDC | ||
| INVERTER OUTPUT | |||
| Rated power | 8.0KW | 10.0KW | 12.0KW |
| Surge rating | 24000VA | 30000VA | 36000VA |
| Capable of starting electric motor | 4HP | 5HP | 6HP |
| Waveform | Pure sine wave / same as input (bypass mode) | ||
| Nominal output voltage RMS | 100V/110V/120V/200V/220V/240V | ||
| Output frequency | 50Hz / 60Hz ± 0.3Hz | ||
| Inverter effciency(peak) | >88% | ||
| Line mode efficiency | >95% | ||
| Power factor | 1.0 | ||
| Typical transfer time | 20ms(max) | ||
| AC INPUT | |||
| Voltage | 220V/230V/240V | ||
| Selectable voltage range | 90-280 VAC (APL) | ||
| Frequency range | 50Hz / 60Hz | ||
| BATTERY | |||
| Low battery voltage cutoff | 40-48VDC for 48VDC mode | ||
| Low battery voltage recover | 42-50VDC for 48VDC mode | ||
| High battery voltage cutoff | 60VDC for 48VDC mode | ||
| High battery voltage recover | 57VDC for 48VDC mode | ||
| Idle consumption-search mode | < 60W when power saver on | ||
| AC CHARGER | |||
| Output voltage | Depends on battery type | ||
| Charger AC input breaker rating | 80A | 80A | 80A |
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | ||
| Maximum charge current | 60A | 70A | 80A |
| BTS | |||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||
| BYPASS & PROTECTION | |||
| Input voltage waveform | Sine wave (grid or generator) | ||
| Nominal input frequency | 50Hz or 60Hz | ||
| Overload protection (SMPS Load) | Circuit breaker | ||
| Output short circuit protection | Circuit breaker | ||
| Bypass breaker rating | 63A | 63A | 63A |
| Max bypass current | 80Amp | ||
| SOLAR CHARGER | |||
| Maximum PV charge current | 100A | ||
| DC voltage | 48V | ||
| Maximim PV array power | 5000W(10000W for 200A optional) | ||
| MPPT range @ operating voltage(VDC) | 64~145VDC | ||
| Maximum PV array open circuit voltage | 145VDC | ||
| Maximum effciency | >98% | ||
| Standby power consumption | <2W | ||
| MECHANICAL SPECIFICATIONS | |||
| Mounting | Wall mount | ||
| Dimensions (W*H*D) | 670*410*215mm | ||
| Net weight (solar CHG) (kg) | 69+2.5 | 75.75+2.5 | 75.75+2.5 |
| Shipping dimensions (W*H*D) | 884*618*443mm | ||
| Shipping weight (Solar CHG) (kg) | 82.5+2.5 | 89+2.5 | 92+2.5 |
| OTHER | |||
| Operation temperature range | 0°C to 40°C | ||
| Storage temperature | -15°C to 60°C | ||
| Audible noise | 60dB MAX | ||
| Display | LED+LCD | ||
| Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | ||
