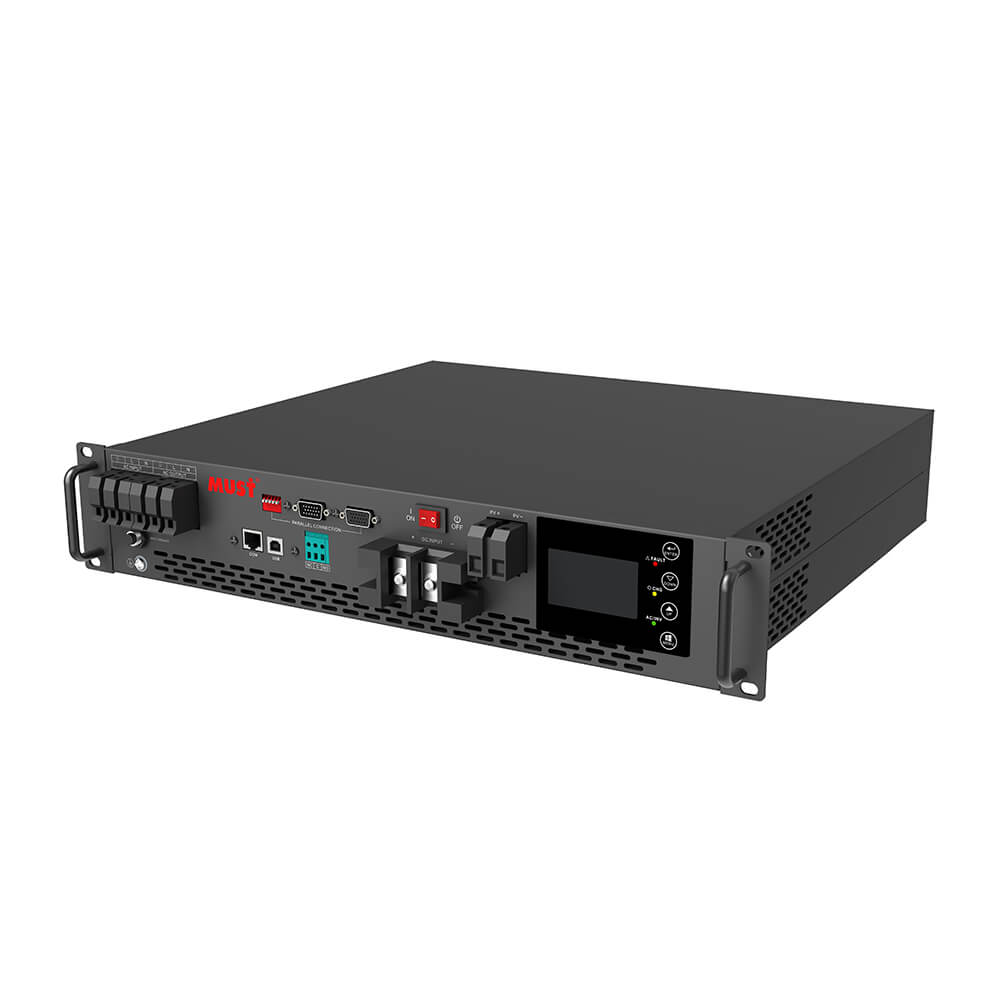

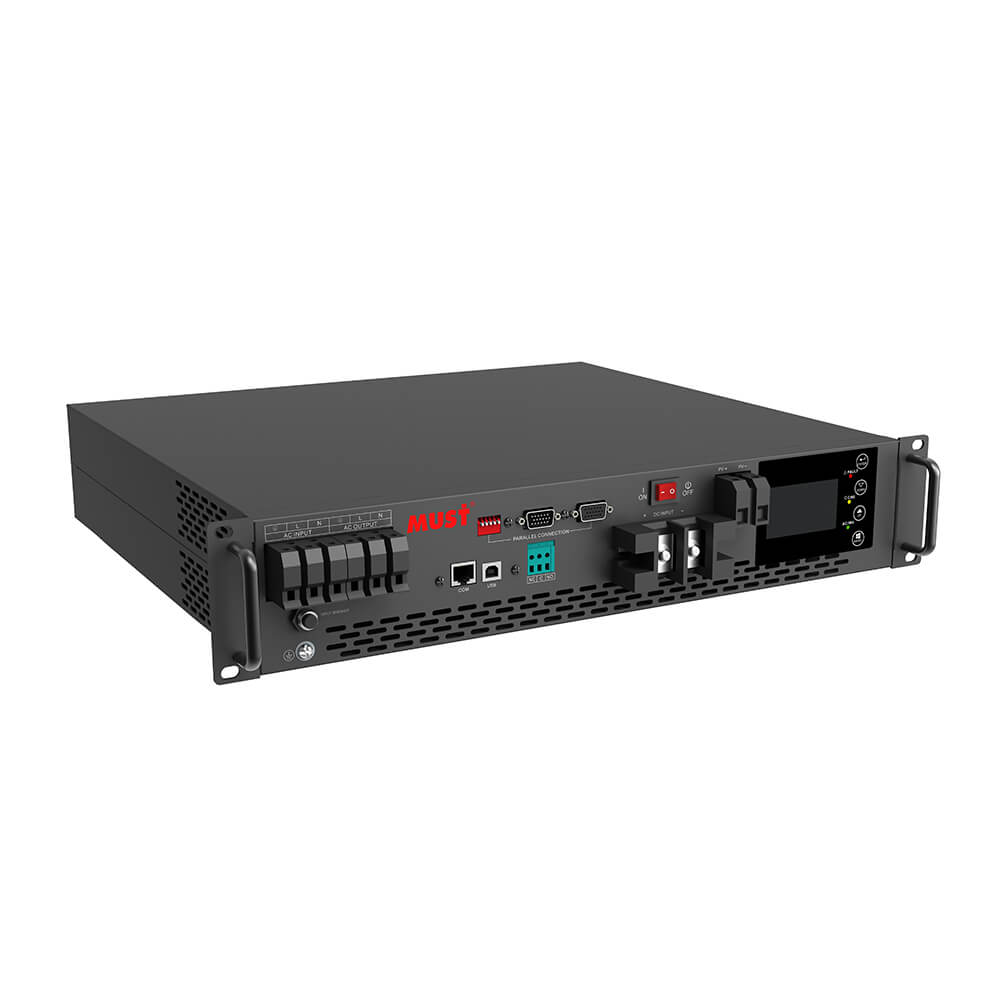

PV5000 Series High Frequency Rack-mount Solar Inverter (3-5KW)

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Built-in MPPT solar charge controller 80A

Get Pricing/Info

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL	PV50-3K	PV50-4K	PV50-5K
Nominal Battery System Voltage	48V
INVERTER OUTPUT
Rated Output Power	3KW	4KW	5KW
Surge Power	6KW	8KW	10KW
Waveform	Pure Sine Wave
Power factor	1
Output Voltage Regulation	230Vac±5%
Inverter Efficiency(Peak)	90%
Transfer Time	10ms typical (UPS / VDE4105) 20ms typical (APL)
AC INPUT
Nominal Input Voltage	230VAC
Selectable voltage range	170~280VAC（UPS）, 90~280VAC（APL）), 184~253VAC(VDE4105)
Input Voltage Waveform	Sinusoidal (utility or generator)
Frequency Range	50Hz / 60Hz
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	145VDC
MPPT Range @ Operating Voltage	60~130VDC
Standby Power Consumption	2W
Maximum PV Array Power	4000W
Maximum PV Charge Current:	80A
Maximum Efficiency	98%
Maximum AC Charge Current	60A
Maximum Charge Current(PC+AC)	80A
MECHANICAL SPECIFICATIONS
Dimension (DWH), mm	400 x 468 x 86.3
Net Weight (kg)	10.0
OTHER
Safety Certification	CE
Operating Temperature Range	-10°C to 40°C
Storage temperature	-15°C~ 60°C
