Low Frequency Power Inverter
Low Frequency Power Inverter
RP Series (4-6kW)
LCD display Remote（optional） Overview Connection
Features:
- Pure sine wave inverter
- Output power factor 1
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/battery input priority via LCD setting
- Compatible with generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Color LCD display
- Supports the use lithium batteries
- Wave by wave phase detection，more stable and reliable
- RS232 communicate port and Remote control panel optional

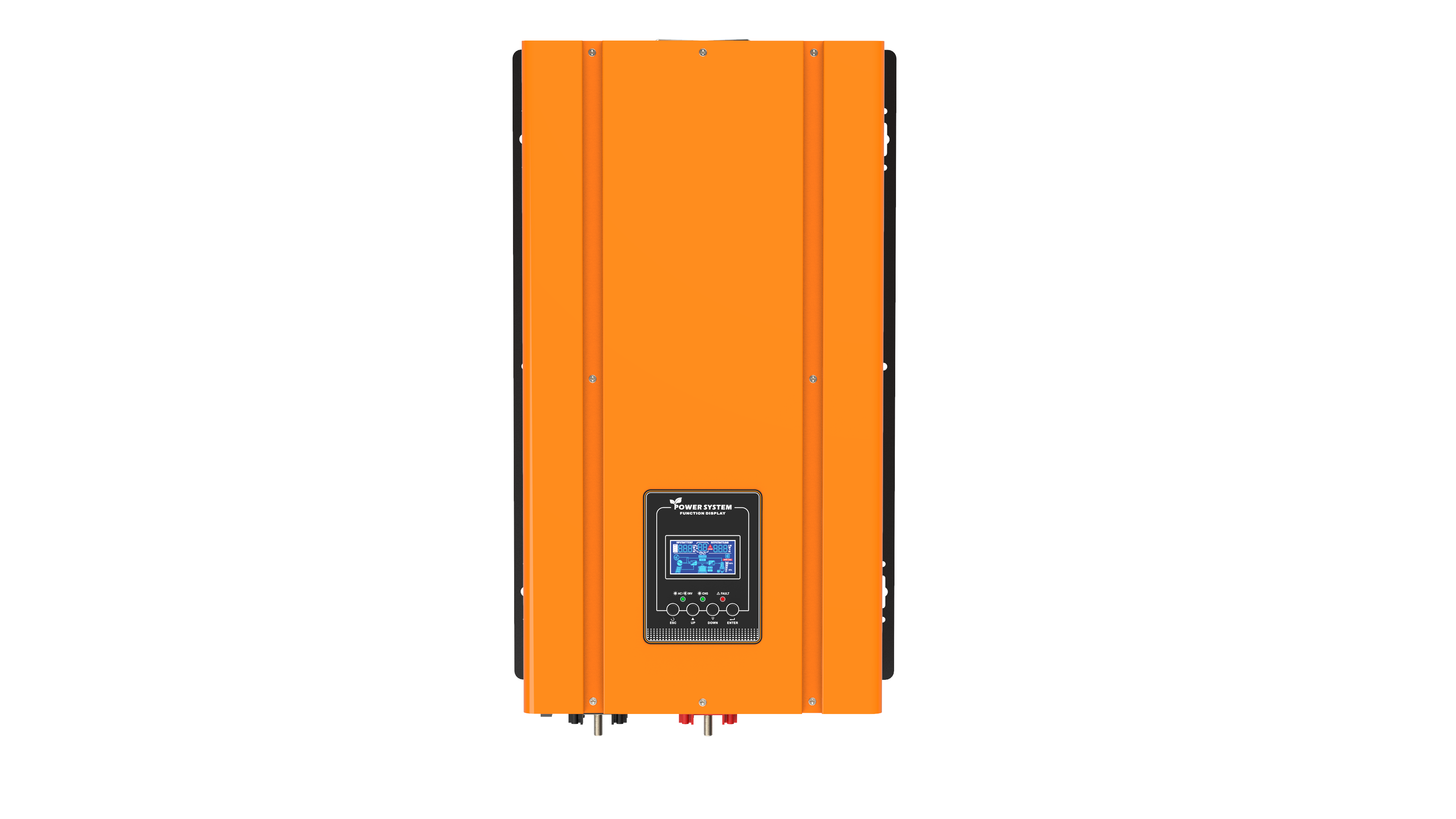

LCD display

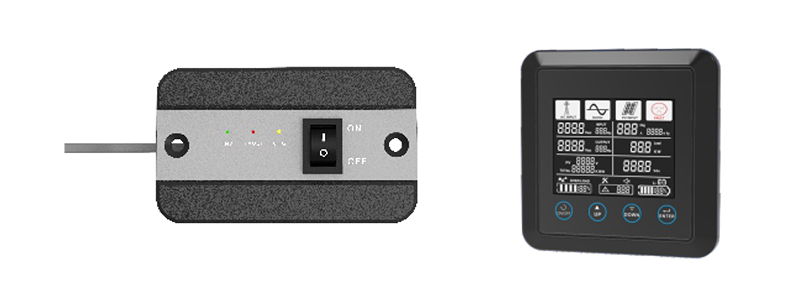

Remote（optional）

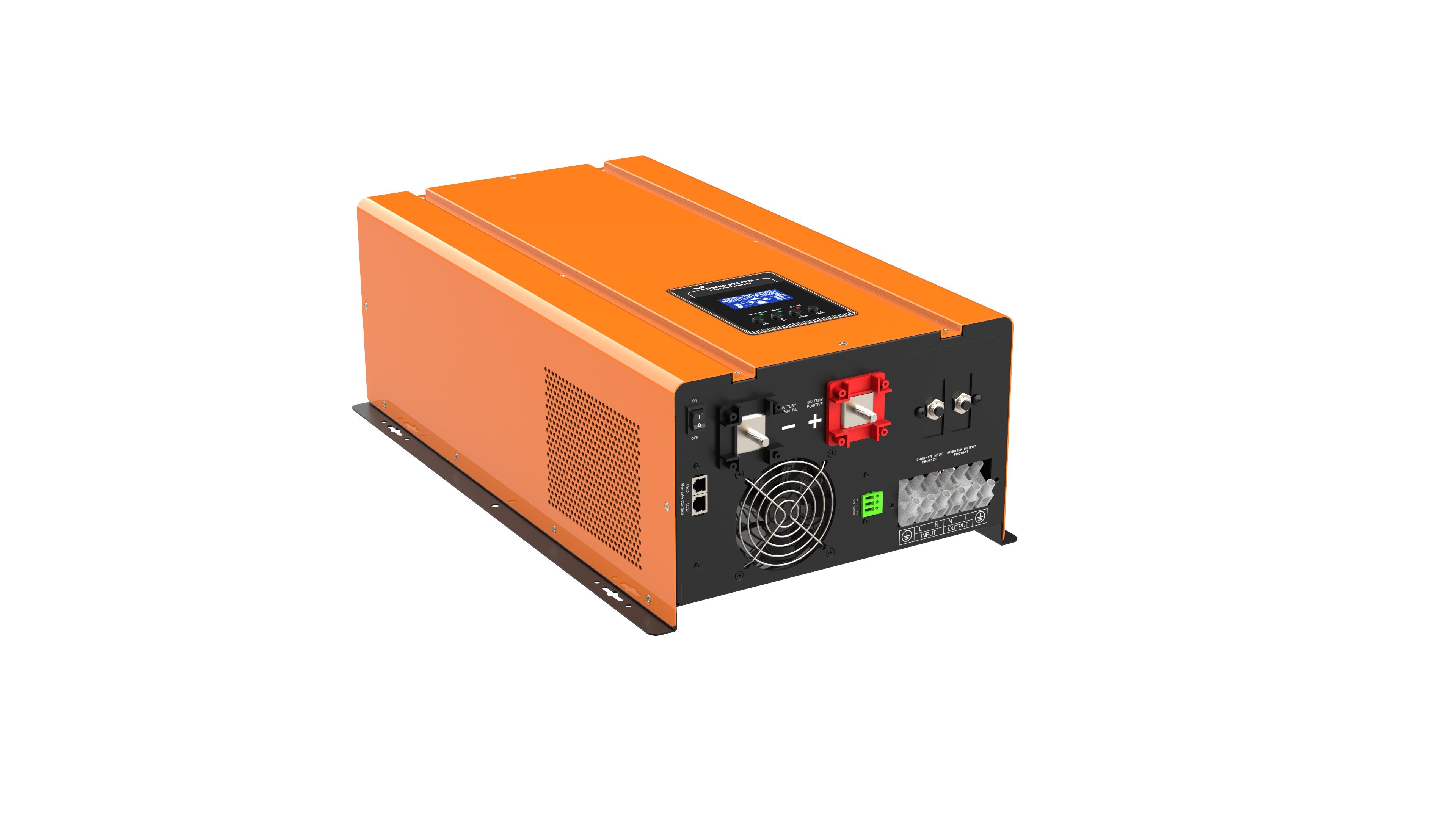

Overview

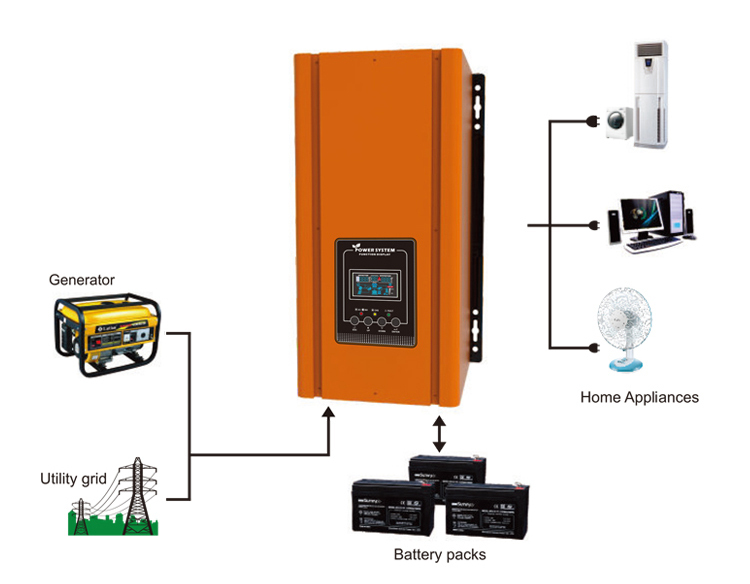

Connection
| MODEL | RP 4000 | RP 5000 | RP6000 | |||
| Rated Power | 4000VA/4000W | 5000VA/5000W | 6000VA/6000W | |||
| INPUT | ||||||
| Voltage | 100/110/120VAC;220/230/240VAC | |||||
| Selectable Voltage Range | Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer) | |||||
| Frequency | 40-70Hz (50Hz/60Hz) | |||||
| OUTPUT | ||||||
| AC Voltage Regulation (Batt Mode) | 100/110/120VAC (±5V)；220/230/240VAC (±10V) | |||||
| Surge Power | 12000VA | 15000VA | 18000VA | |||
| Efficiency (Peak) | 91% | |||||
| Transfer Time | ＜10ms | |||||
| Wave form | Pure sine wave | |||||
| BATTERY | ||||||
| Battery Voltage | 24V | 48V | 24V | 48V | 24V | 48V |
| Charge Current | 70A | 35A | 75A | 45A | 75A | 50A |
| Fast Charge Voltage | 28.6VDC | 57.2VDC | 28.6VDC | 57.2VDC | 28.6VDC | 57.2VDC |
| Float Charge Voltage | 27.4VDC | 54.8VDC | 27.4VDC | 54.8VDC | 27.4VDC | 54.8VDC |
| Battery Low Voltage Alarm | 33.0VDC | 66.0VDC | 33.0VDC | 66.0VDC | 33.0VDC | 66.0VDC |
| Over Voltage Protect | 21.0VDC | 42.0VDC | 21.0VDC | 42.0VDC | 21.0VDC | 42.0VDC |
| Battery Low Voltage Shutdown | 20.0VDC | 40.0VDC | 20.0VDC | 40.0VDC | 20.0VDC | 40.0VDC |
| Protection | over charging，over temp，over battery voltage，over load，short-circuit | |||||
| Operating Environment Temperature | 55℃ | |||||
| Cooling | Intelligent Fan | |||||
| Display | LCD | |||||
| Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||||
| PHYSICAL | ||||||
| Dimension，(D*W*H)mm | 574*345*197 | |||||
| Net Weight (kg) | 34.4/33.8 | 37.9/38.2 | 41.6/40.5 | |||
| ENVIROMENT | ||||||
| Humidity | 5~95% Relative humidity (No-condensing) | |||||
| Operating Temperature | -10℃~50℃ | |||||
| Storage Temperature | -10℃~60℃ | |||||
