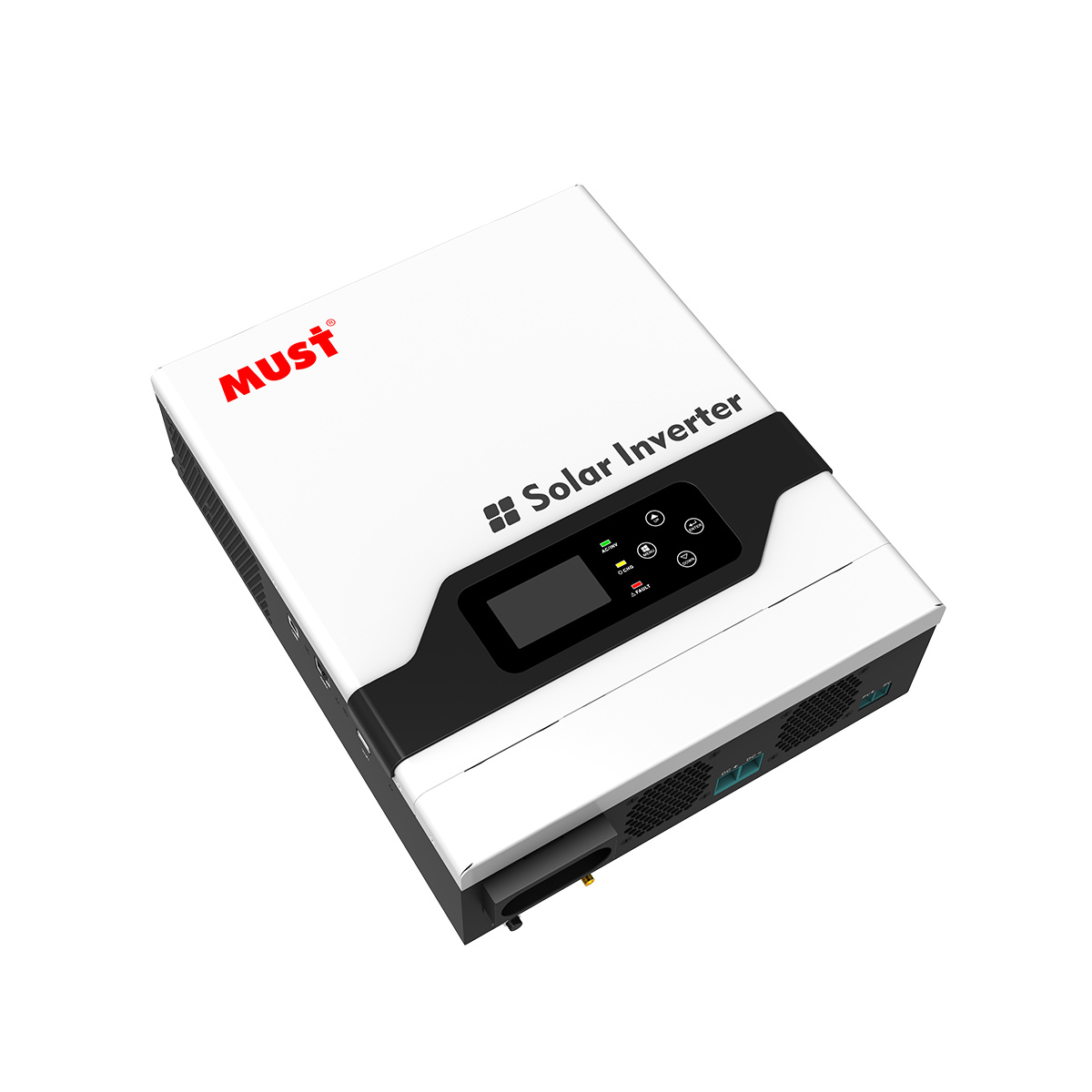

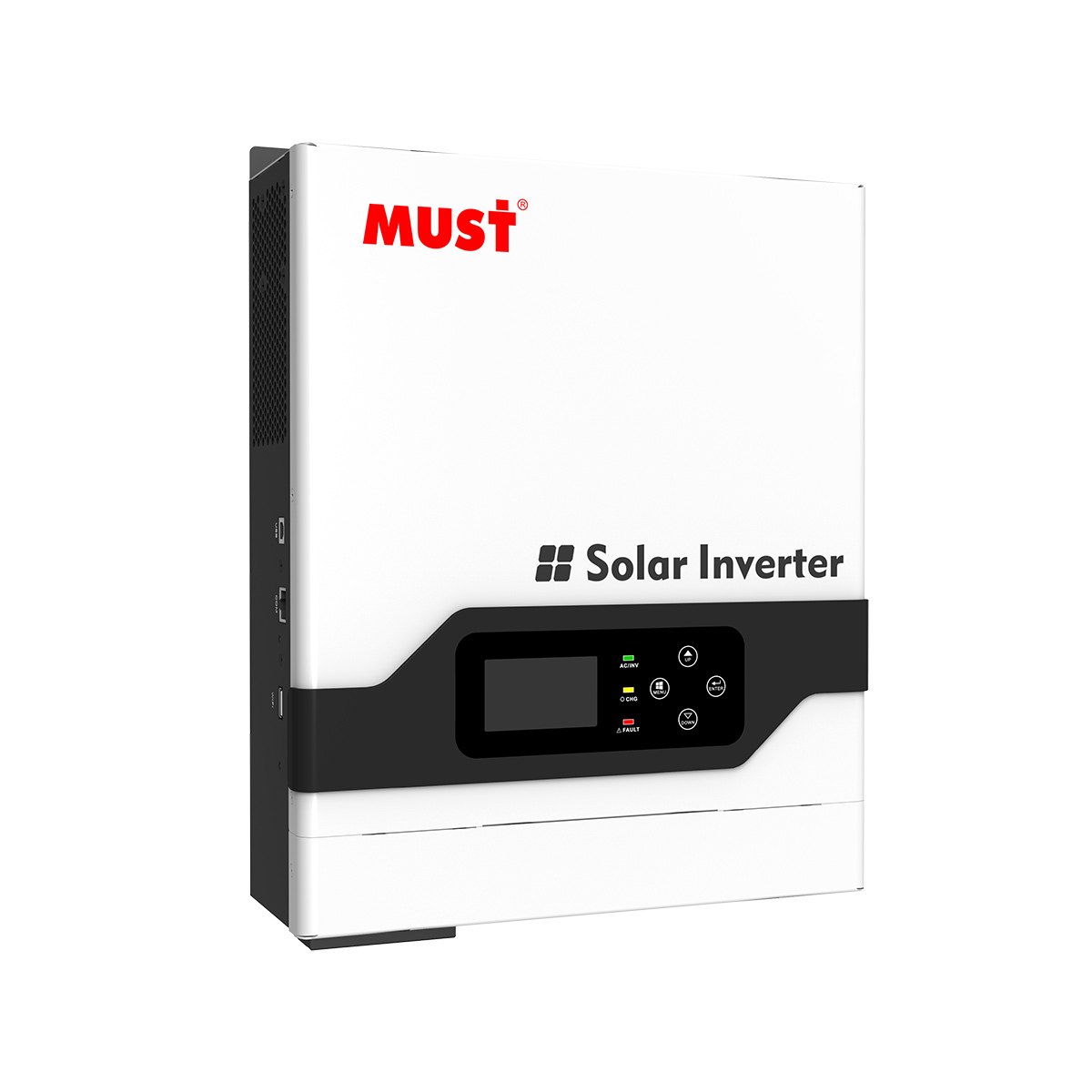

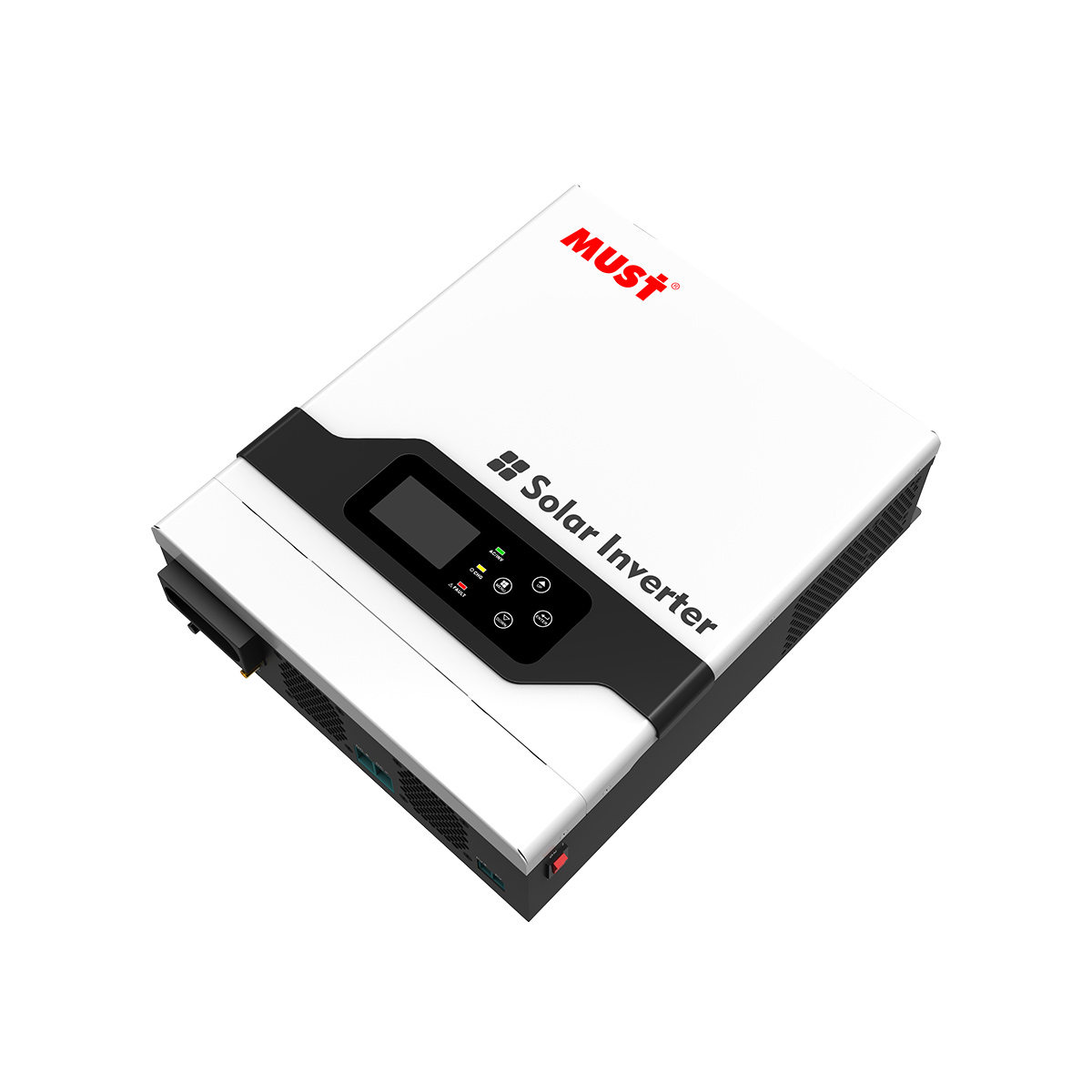

PV1800 VPM Ⅱ Series High Frequency Off Grid Solar Inverter (1.2-3KW)

Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Bult in MPPT 60A solar charge controller
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485, CAN monitoring function
WIFI remote monitoring (optional)
Compatible to generator

MUSTENERGY

MODEL	PV18-1224 VPM Ⅱ	PV18-2024 VPM Ⅱ	PV18-3024 VPM Ⅱ
Default Battery System Voltage	24VDC
INVERTER OUTPUT
Rated Power	1200VA / 1200W	2000VA / 2000W	3000VA / 3000W
Surge Power	2400VA	4000VA	6000VA
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	220VAC~240VAC(Setting)
Inverter Efficiency(Peak)	90%~93%
Transfer Time	10ms(UPS / VDE4105) / 20ms(APL)
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE)
Frequency Range	50Hz / 60Hz (Auto sensing)
BATTERY
Normal voltage	24VDC
Floating Charge Voltage	27.4VDC
Overcharge Protection	30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	120VDC	160VDC
PV Array MPPT Voltage Range	30~96VDC	30~128VDC
Standby Power Consumption	2W
Maximum PV Array Power	1000W	1500W
Maximum Solar Charge Current	40A	60A
Maximum Efficiency	98%
Maximum AC Charge Current	30A	40A	60A
Maximum Charge Current	70A	100A	120A
MECHANICAL SPECIFICATIONS
Machine Dimensions (WHD)(mm)	22433798	367.4254.5103
Package Dimensions (WHD)(mm)	299392184	445.5341.5190
Net Weight(kg)	4.7	5.5
Gross Weight(kg)	5.5	7.5
OTHER
Humidity	5% to 95% Relativ Humidity (Non-condensing)
Operating Temperature	0°C~50°C
Storage Temperature	-15°C -60°C
