Lithium Energy Storage System
Lithium Energy Storage System

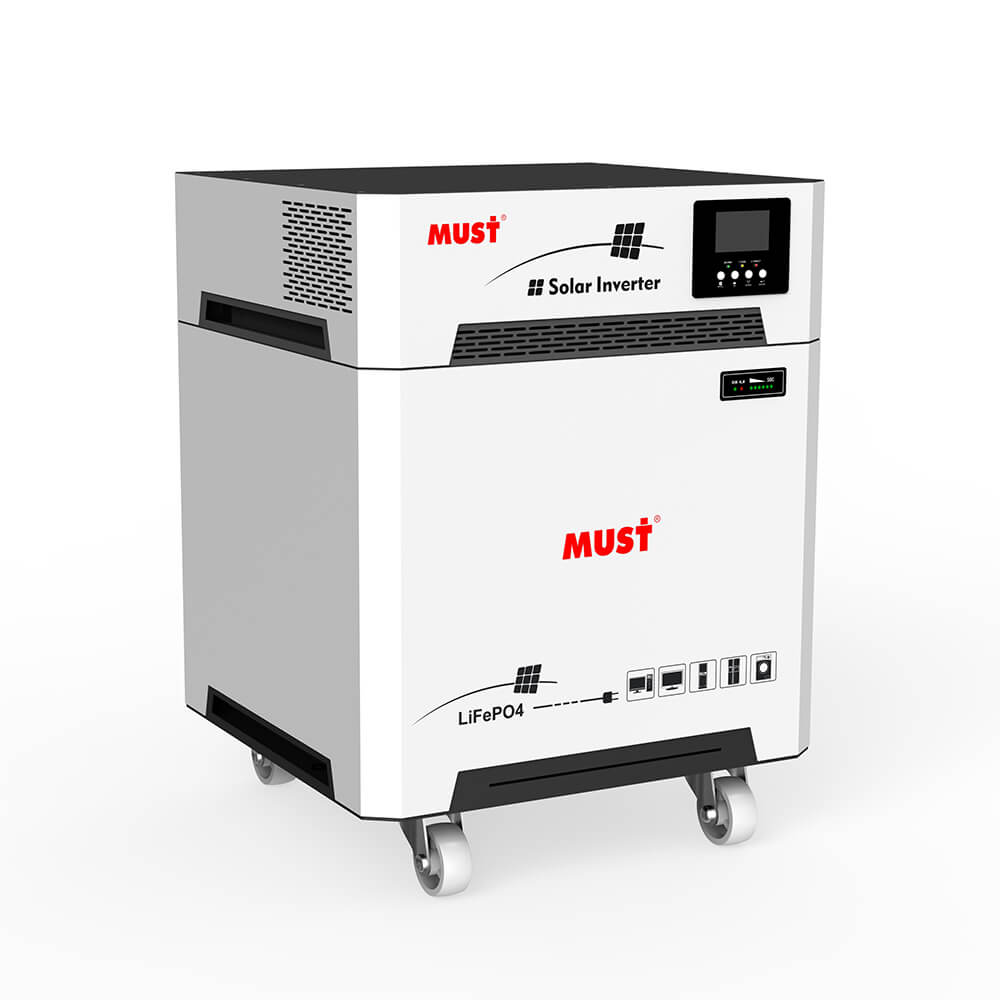

Solar Inverter With Lithium Battery Storage System HBP1800 LV Series (AC:120V 3KW)
HBP1800 LV energy storage system ESS solution, including kw 48vdc solar inverter and a lithium battery storage with 10kwh-25kwh energy optional. itis a one-stop service system can manage your solar home battery storage system more conveniently. Flexible modular system can be designed basedon house daily consumption. The perfect emergency energy solution for villas, apartments, hotels, shopping centers.
Features:
- Inverter ModuleUsing the 120V High Frequency Off Grid Solar Inverter can output the direct current(DC) from the rooftop solar PV array into alternating current(AC), so your home or business loading can use it directly.
- Battery ModuleHBP1800 series is with ground-breaking LiFePO4 battery pack inside, with multi battery protection inbuilt, it’s used for multi power solutions in many fields.

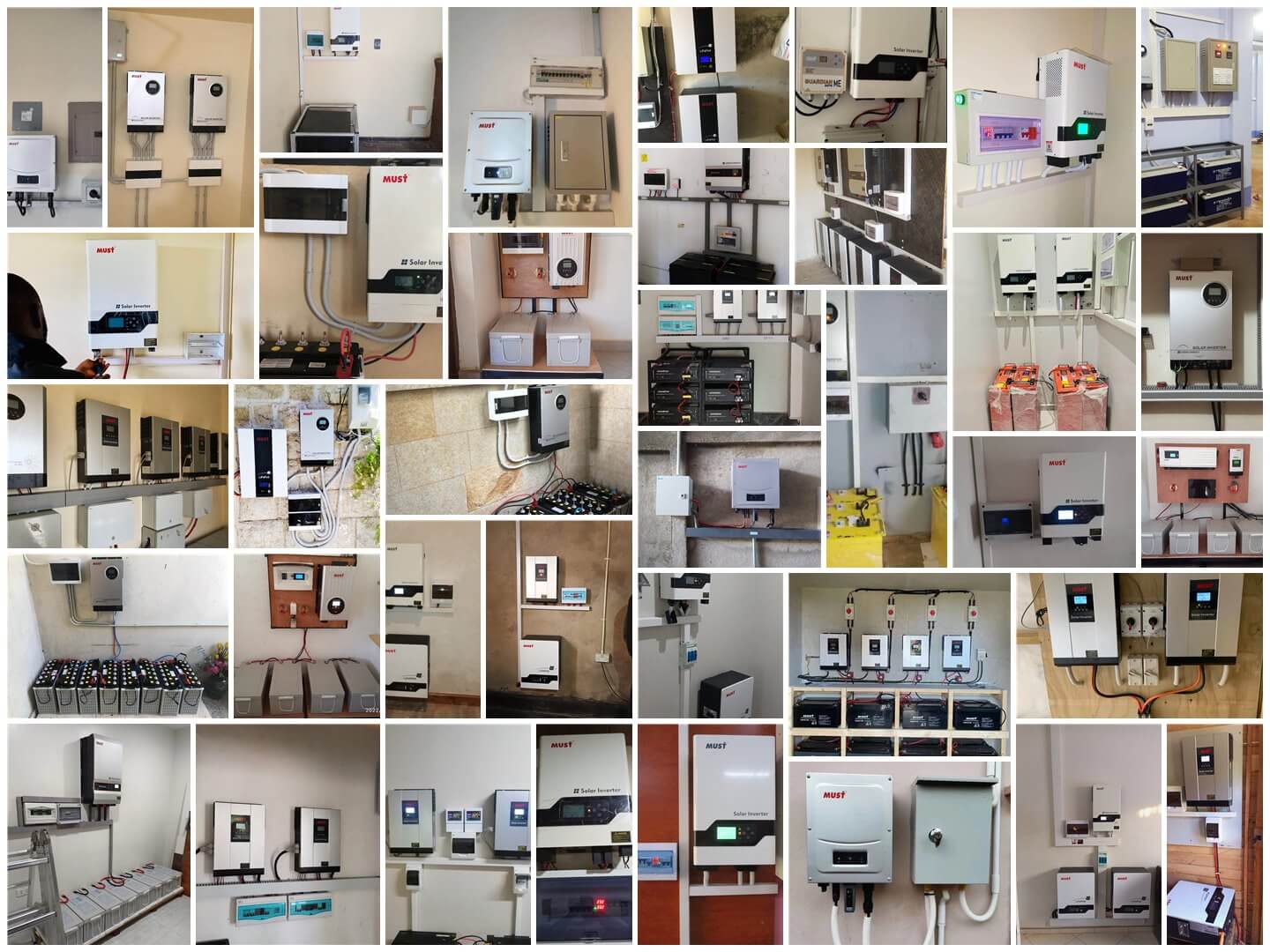

↓↓↓Installation Portfolio————
| MODEL | HBP18-3048 LV |
|---|---|
| Inverter | |
| Rated power | 3000W |
| Output voltage waveform | Pure sine wave |
| Output voltage regulation | (100Vac-120Vac)±5% |
| Output frequency | 50Hz or 60Hz (±0.2Hz) |
| Peak efficiency | 93% |
| Nominal DC input voltage | 36Vdc |
| Standby Consumption | <25W |
| PV Input | |
| Max solar power input | 3000W |
| PV max charging current | 80A |
| Combined charging current | 140A |
| Max efficiency | 98.0% max |
| PV array open circuit voltage | 145Vdc |
| PV Array MPPT Voltage Range | 30~120Vdc |
| AC Input | |
| AC input voltage | 120Vac ±5% |
| Acceptable input voltage range | 90~145VAC(UPS), 60~145VAC(APL), 107~132VAC(VDE4105) |
| Nominal input frequency | 50Hz / 60Hz (Auto detection) |
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) |
| AC Charge | |
| Charging current @ Nominal input voltage | 60A |
| Charging Algorithm | 4-step (Li) |
| Output | |
| AC output | Terminal |
| Lithium Battery | |
| Energy | 9600Wh |
| Nominal voltage | 38.4V |
| Battery capacity | 250Ah |
| Standard charging and discharge current | 100A |
| Maximum continuous charging & discharge current | 100A |
| Operation ambient temperature | -10~50℃ |
| Storage ambient temperature | -20~55℃ |
| Dimension | |
| Net Weight | 87Kg |
| Gross Weight | 105Kg |
