Lithium Energy Storage System

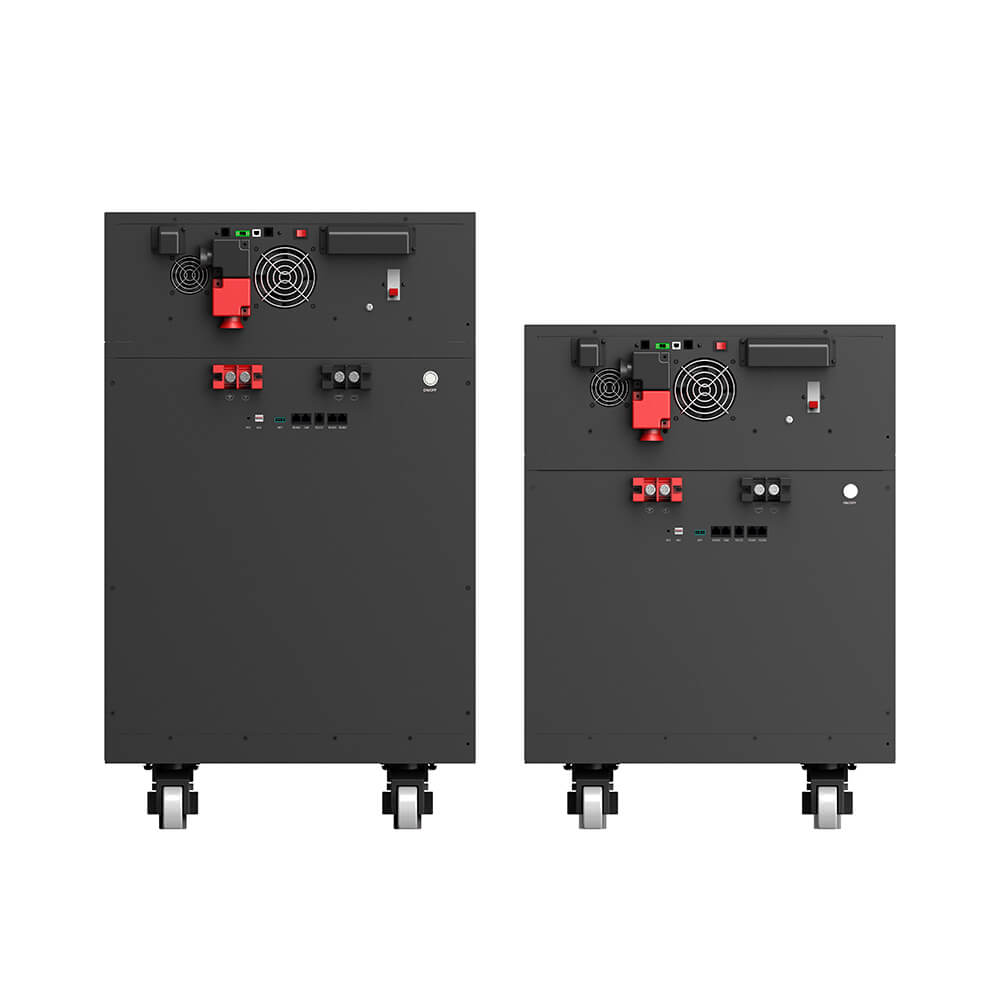

Solar Inverter With Lithium Battery Storage System HBP3000 LV Series (AC:110/220V 2-6KW)

The MUST HBP3000 LV Series is with a ground-breaking LiFePO4 battery pack 6.4kwh and 12.8kwh energy storage, pure sine wave solar inverter inbuilt. Versatile energy storage system as your home strong back up, reliable access to power sources anytime. This class-leading power station brings you the power to run your daily consumes, family camping trip, cabin workshops, or even whole house for a day or two days power back up depending on your demands.

Features:

Inverter ModuleLow Frequency Solar Inverter can output the direct current(DC) from the rooftop solar PV array into alternating current(AC), so your home or business loading can use it directly.
Battery ModuleThe MUST HBP3000 LV Series is with a ground-breaking LiFePO4 battery pack, that offers multiple energy storage options through, which further simplifies installation and O&M with multiple smart functions.

Get Pricing/Info

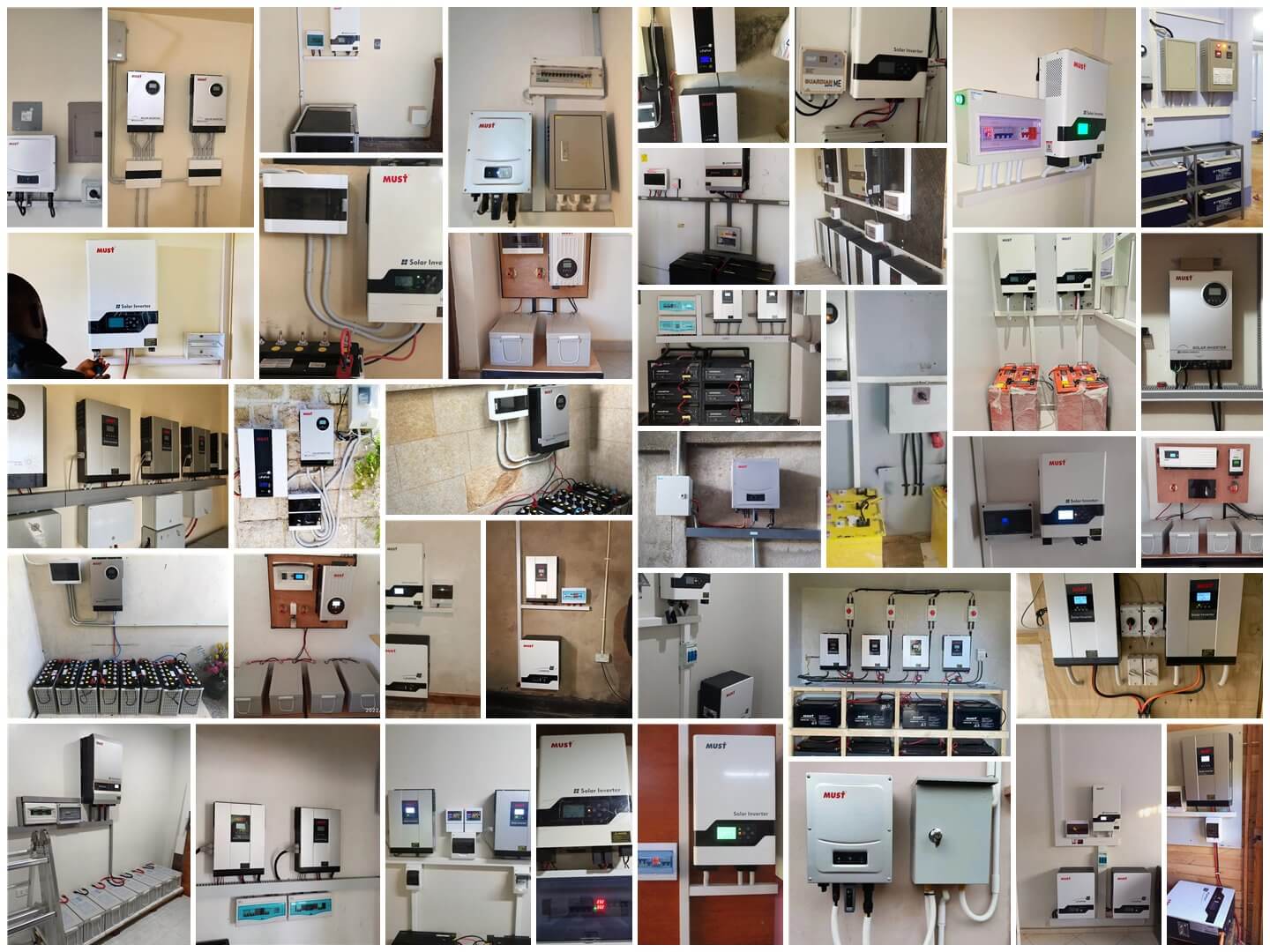

↓↓↓Installation Portfolio————

MUSTENERGY

MODEL		HBP30-2024 LV	HBP30-3024 LV	HBP30-5048 LV	HBP30-6048 LV
Inverter
Rated power		2000W	3000W	5000W	6000W
Output voltage waveform		Pure sine wave
Output voltage regulation		110V/115V/120V ±10%
Output frequency		50Hz or 60Hz (±0.2Hz)
Peak efficiency		88%
Nominal DC input voltage		24Vdc		48Vdc
Standby Consumption		< 2W
PV Input
Max solar power input		2500W		5000W
PV max charging current		80A
Combined charging current		80A
Max efficiency		98% max
PV array open circuit voltage		145V
PV Array MPPT Voltage Range		32~130VDC		64~130VDC
AC Input
AC input voltage		120Vac ±5%
Acceptable input voltage range		96~132VAC
Nominal input frequency		50Hz / 60Hz (Auto detection)
Transfer time		10ms(max)
AC Charge
Charging current @ Nominal input voltage		30A	40A	35A	40A
Charging Algorithm		4-step (Li)
Output
AC output		Terminal & Socket (10A max)
Lithium Battery
Energy		6400wh		12800wh
Nominal voltage		25.6V		51.2V
Battery capacity		250Ah
Standard charging and discharge current		100A
Maximum continuous charging & discharge current		100A
Operation ambient temperature	Charge	-10~50℃
Operation ambient temperature	Discharge	-20~55℃
